EOS2
5 People are viewing this right now
Efficiency Redefined: The Compact CAB EOS2 for Modern Labeling
Simple to Use, Powerful in Action

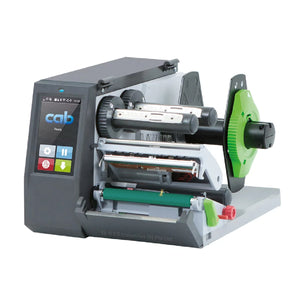

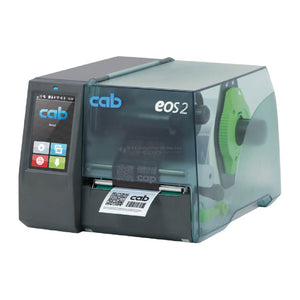

The CAB EOS2 is a compact and versatile label printer designed for both thermal transfer and direct thermal printing. It combines the latest technology with user-friendly operation, featuring a built-in touch display for intuitive control and standalone printing without a PC. Despite its small size, the EOS2 delivers high performance with print resolutions of 203 or 300 dpi and speeds up to 150 mm per second. It supports label rolls up to 152 mm in diameter and ribbon lengths up to 360 m, making it suitable for a wide range of industrial and commercial labeling tasks. Equipped with USB, Ethernet, and RS-232 interfaces, the EOS2 offers flexible connectivity for various setups. Its lightweight yet durable design, easy operation, and reliable print quality make it an excellent choice for businesses seeking efficient, space-saving label printing solutions.
Features:
- Color LCD screen
- Print wirelessly with Standalone Forms
- Enhanced user experience with set up wizard
- USB and LAN interfaces as standard
- Optional interfaces available: Wireless LAN, Serial and Parallel (Contact Us for more info)
- Accessories & Options: Basic peeler, High speed cutter and Heavy duty rotary cutter (Contact Us for more info)
-
Cross Emulation, autoswitch between Zebra® and Datamax® emulations
Applications:
- 🏭 Manufacturing / Industrial
- 🚚 Logistics / Warehousing / Shipping
- 🛒 Retail / Trade
- 🧪 Healthcare / Laboratory
- 🍱 Food and Beverages / Perishable Goods
- 🧰 Field / Mobile Operations
Specifications:
| Printing Technology | Thermal Transfer + Direct Thermal |
| Resolution | 203 dpi - 300 dpi |
| Print Speed (Maximum) | 150 mm / s |
| Print Width (Maximum) | 105.7 mm - 108 mm |
| Media type |
Paper, cardboard, plastics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec, shrink tubes ready-for-use, continuous, pressed, textile tapes, packing on rolls, reels |
| Media Width (min to max) | 5 mm - 120 mm |
| Media Thickness (min to max) | 0.05 mm - 0.6 mm |
| Media Length (min to max) | 6000 mm - 13500 mm |
| Roll Size (max), Core Size |
152 mm (Roll Size); 38.1mm - 76 mm (Core Size); |
| Ribbon size | 25 mm - 114 mm width |
| Ribbon winding | Outside / Inside |
| Ribbon variable length | Up to 360 m |
| Power Supply | 100 – 240 VAC, 50/60 Hz |
| Start of printing Distance to locating edge | Centered |
| Main Interface |
• RS232C 1,200 to 230,400 baud/8 bit • USB 2.0 Hi-speed device to connect a PC • Ethernet 10/100 Mbit/s IPv4 and IPv6 •2 x USB host on the control panel, 2 x USB host on the back of a unit • Periphery connection USB host, 24 VDC |
| Optional Interface | • USB WLAN stick 2.4 GHz 802.11b/g/n • USB WLAN stick 2.4 GHz 802.11b/g/n + 5 GHz 802.11a/n/ac, rod antenna |
| Power Consumption | Standby <5 W / typical 45 W / max. 100 W |
| Approvals |
CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BIS, BSMI, KC-Mark, Mexico Reg. |
| RAM (standard Memory) | 256 MB (main storage), 50 MB (data storage) |
| Drivers and software |
(Drivers) • cab Linux Armv7 - 32 Bit • cab Linux Armv8(aarch64) • cab Linux x86 - 32 Bit • cab Linux x86 - 64 Bit • cab MAC OS Driver • cab MAC OS X Driver • cab Windows Driver ARCHIV • cab Windows Driver NEW • cab Windows Driver NEW Release Notes (Software) • cab Download Converter (download.exe) • cablabel S3 Demo (Free) • cablabel S3 Lite (Free) • cablabel S3 Print • cablabel S3 Pro • Database Connector • LogService |
| Temperature humidity for Operation |
+5 - 40°C / 10 - 85 %, not condensing |
| Size ( W x D x H ) and Weight |
253 x 322 x 191 mm, 4 kg |
