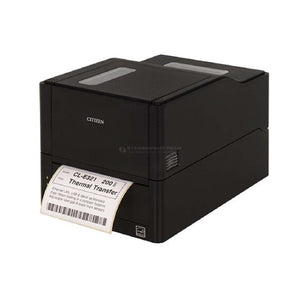

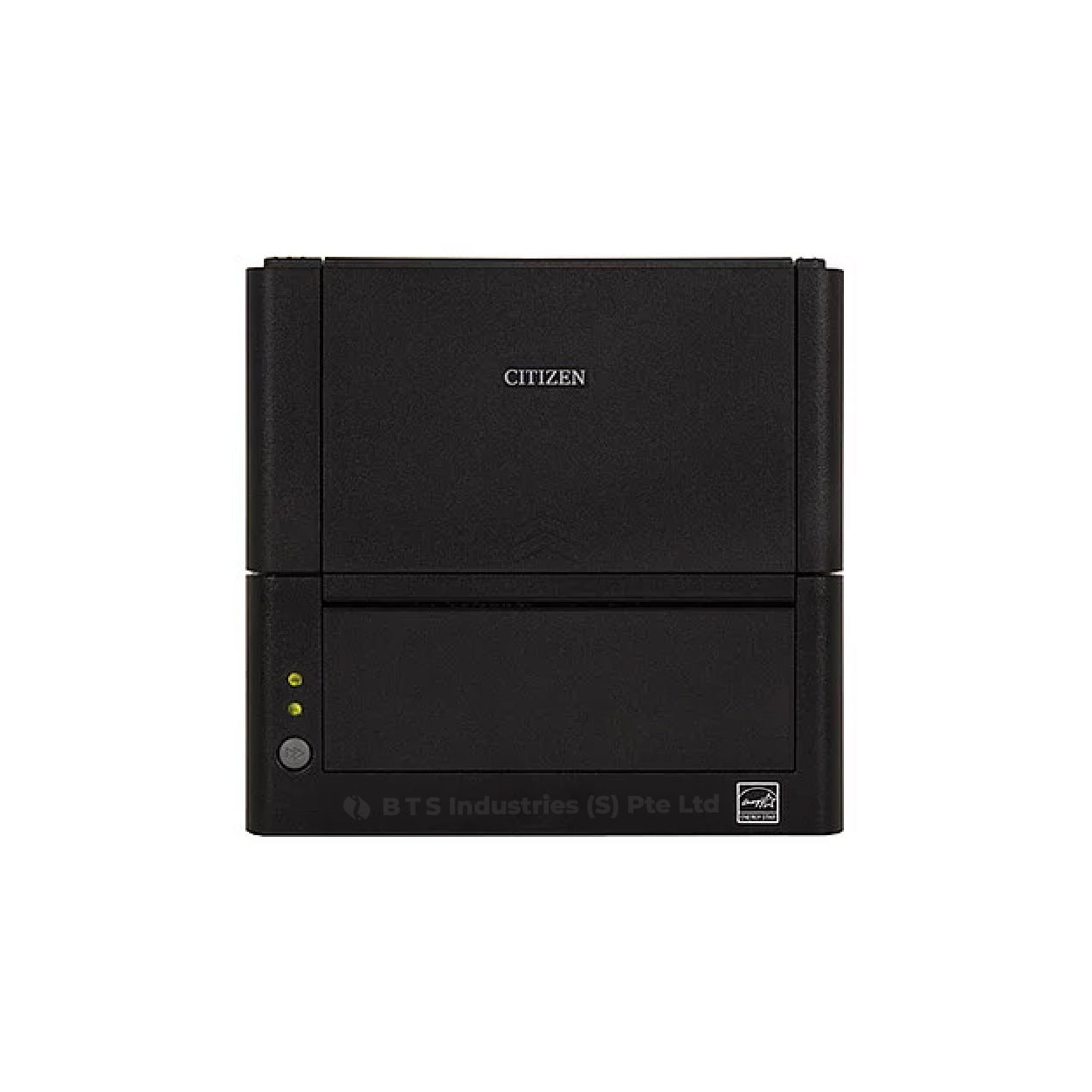

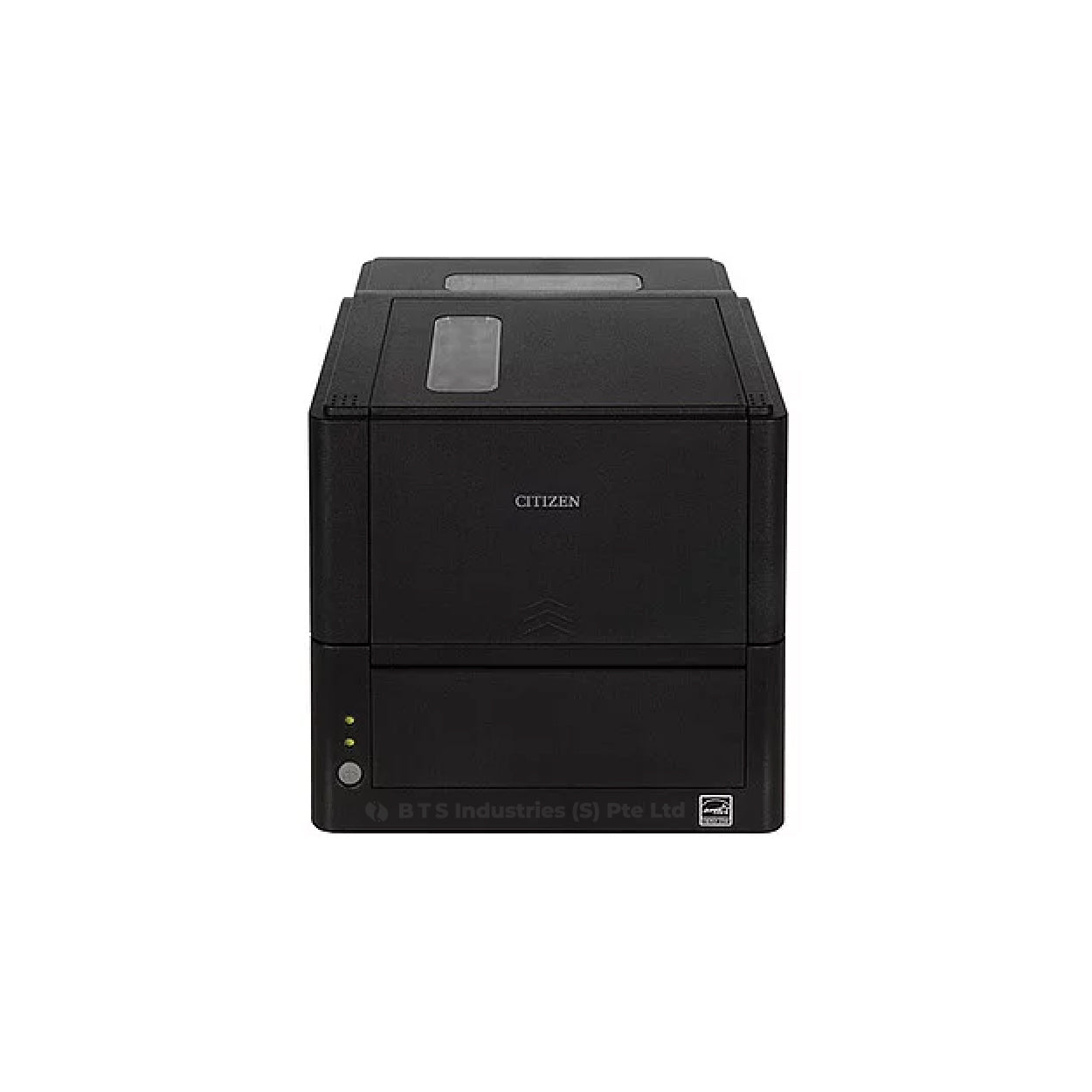

Citizen CL-E321
2 People are viewing this right now
Designed and built for performance

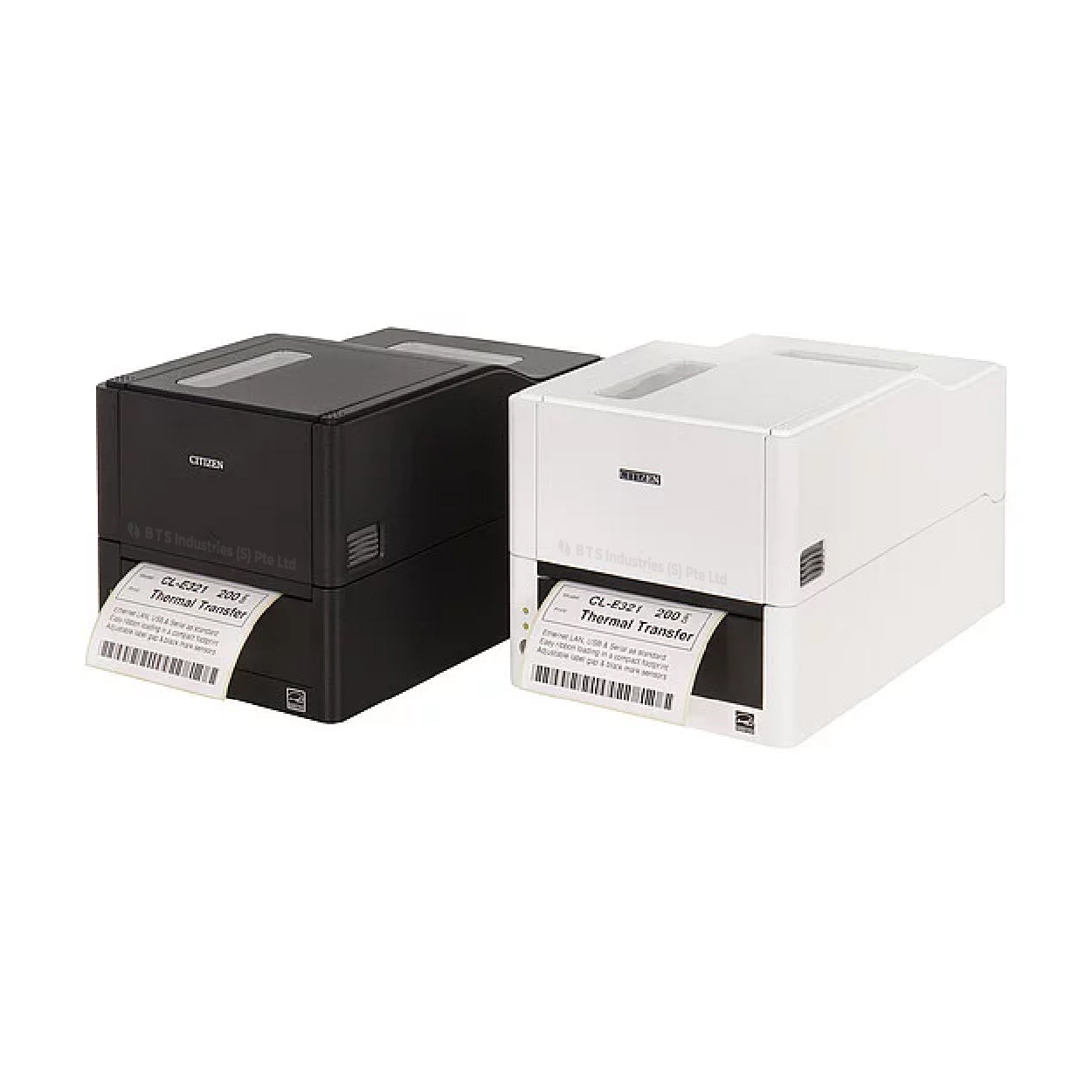

Unique design in white or black, with outstanding features and reliability

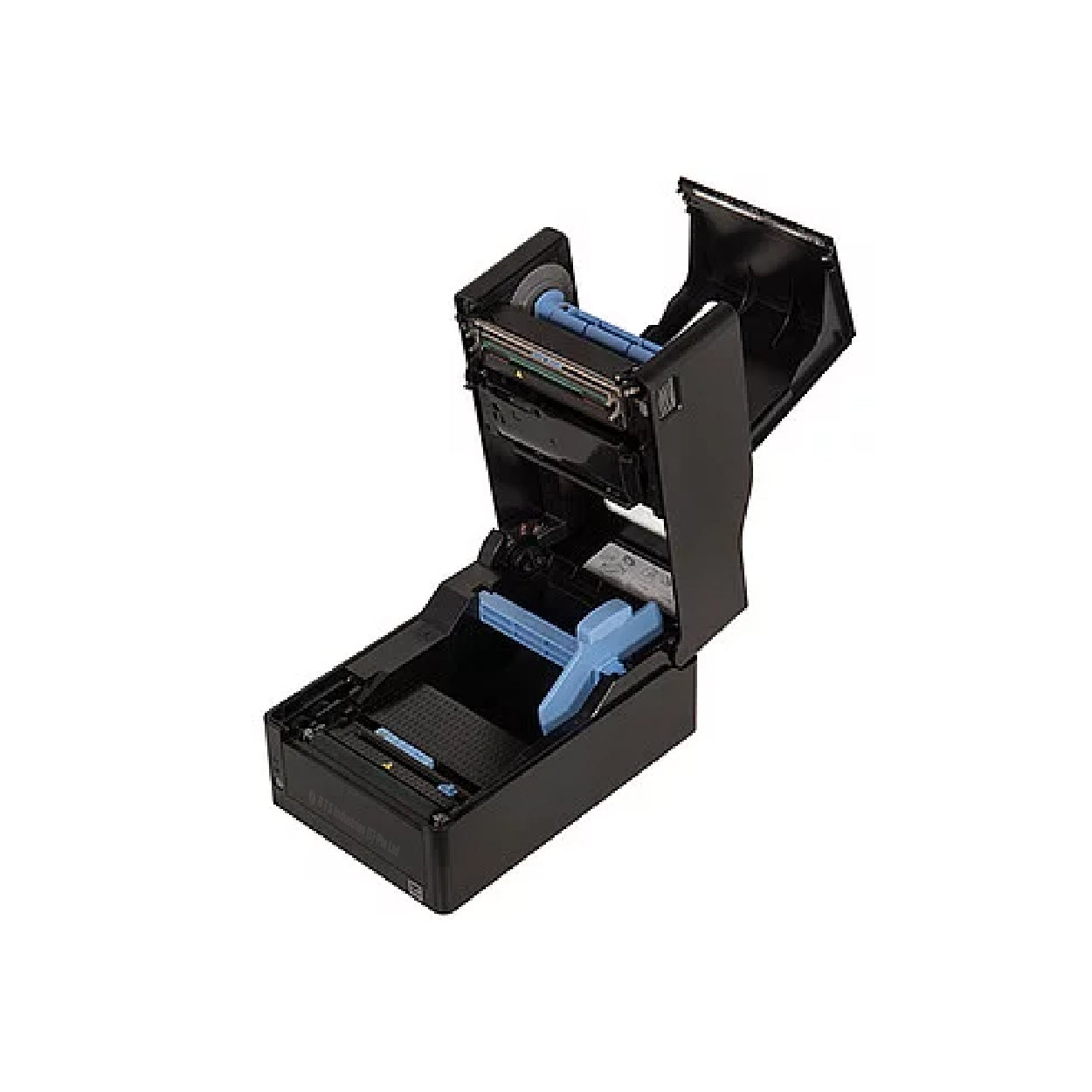

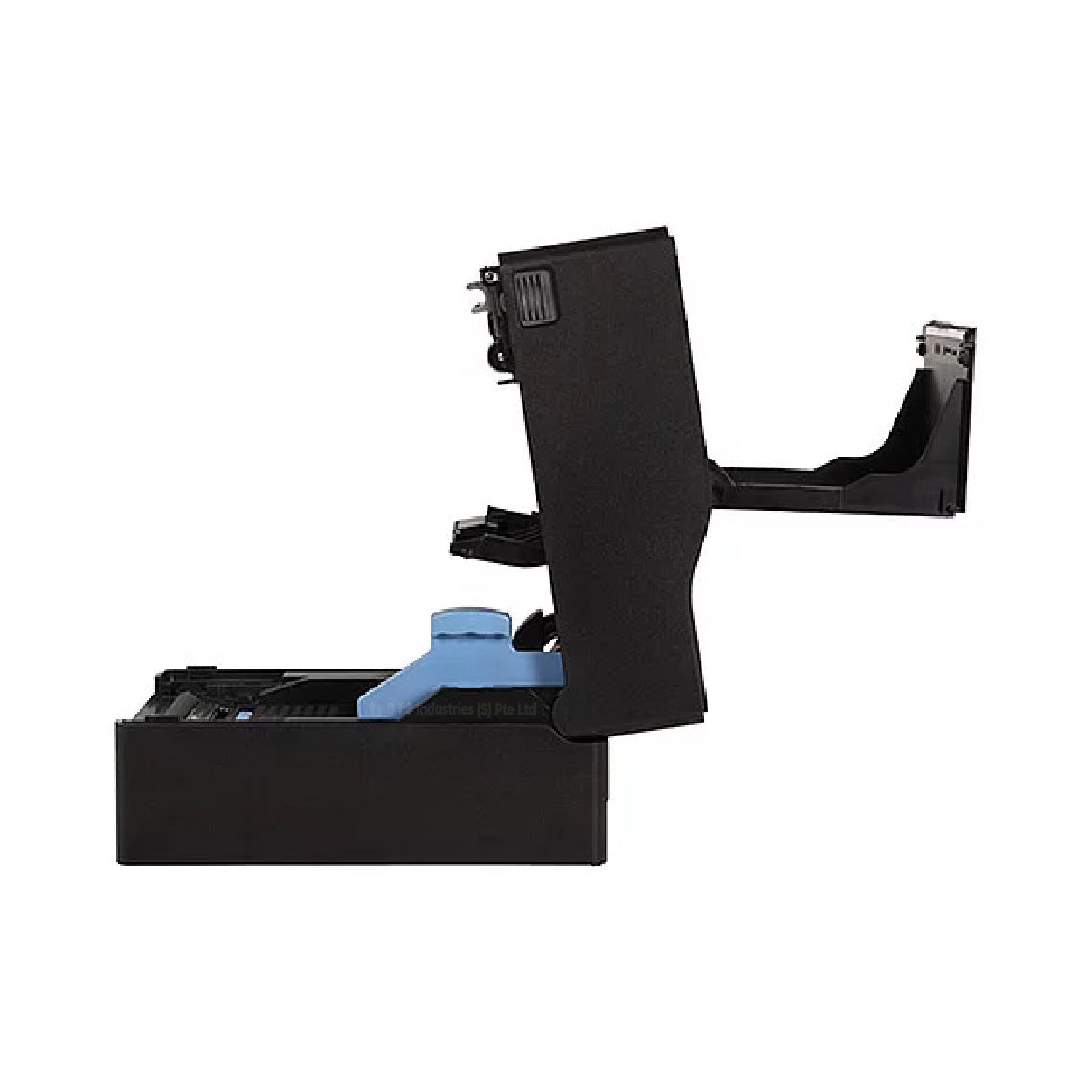

The new Citizen CL-E321 combines a unique and stylish design with outstanding performance and reliability, all in a compact, easy to use package. Designed for quick media and ribbon changes, the CL-E321 is equipped with wide 90 degree Hi-Lift™ opening mechanism, full connectivity and printer emulations. These features make it the ideal choice for applications ranging from high-end retail and healthcare, to logistics and courier services. Simple to setup and use, the CL-E321 ensures trouble-free operation , CL-E321 delivers speeds of 200 mm / sec at 203 dpi, with thermal transfer and direct thermal printing and it is available in black or white.
Features:
- Compact, stylish design with a small footprint
- Ethernet LAN, USB and Serial interfaces as standard
-
Quick and easy ribbon change and media loading
- Accessories & Options: High speed cutter, Auto cutter (Contact us for more info)
Applications:
- 🏥 Healthcare
- ⚙️ Manufacturing
- ✈️ Courier
- 🚛 Logistics / Transport
Specifications:
| Printing Technology | Thermal Transfer + Direct Thermal |
| Resolution | 203 dpi |
| Print Speed (Maximum) | 8 inches per second ( 200 mm / s ) |
| Print Width (Maximum) | 4 inches ( 104 mm ) |
| Media type | Roll or fanfold media; die-cut, continuous or perforated labels, tags, tickets. Inside or outside wound |
| Media Width (min to max) |
1 - 4.6 inches ( 25 - 118 mm ) |
| Media Thickness (min to max) | 63.5 to 190 µm |
| Media Length (min to max) |
0.25 to 100 inches ( 6.35 to 2540 mm ) |
| Roll Size (max), Core Size |
Inside diameter 5 inches ( 125 mm ) Core size 1 inch ( 25 mm ) |
| Ribbon size |
2.6 inches ( 60 mm ) maximum outside diameter. 300 meters length. 1 inch ( 25 mm core ) |
| Ribbon winding & type |
Ink side out. Wax, Wax / Resin or Resin Type |

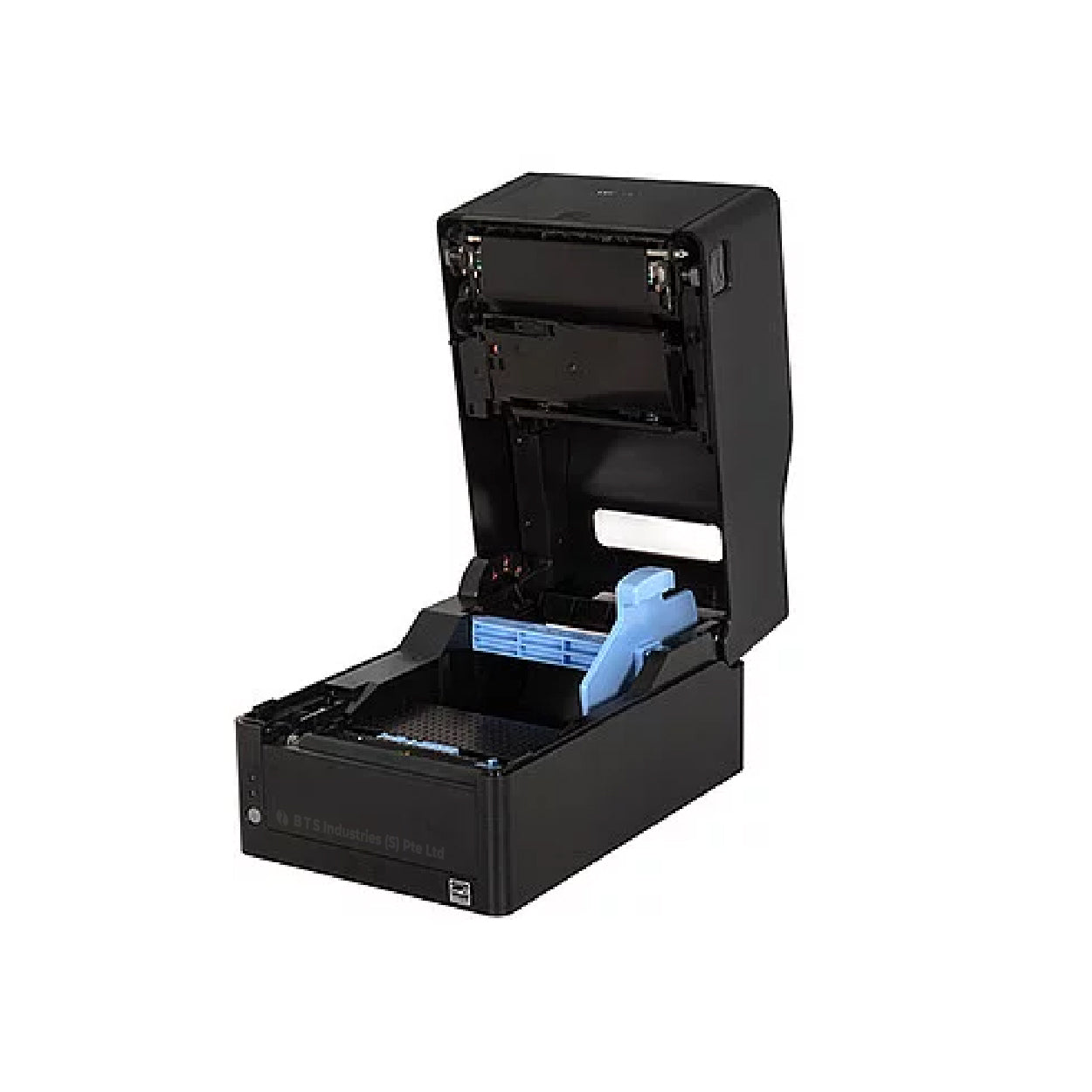

| Mechanism | Clamshell, easy-to-load, wide opening design |
| Media Sensor | Fully adjustable gap, notch and reflective black mark |

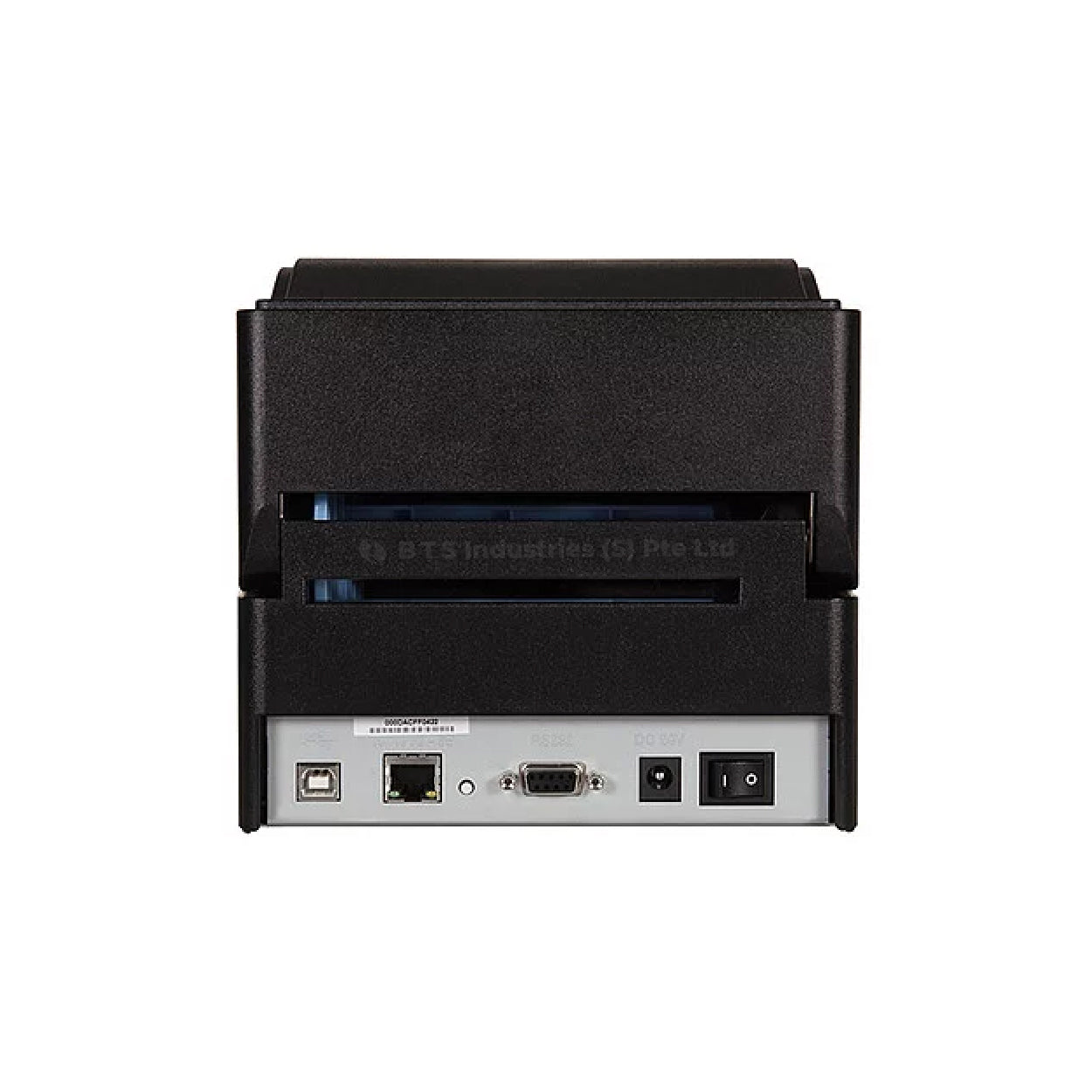

| Main Interface |
Triple interface USB 2.0, RS-232 and 10/100 Ethernet |
| Case | Hi-Open™ industrial ABS case with safe close |

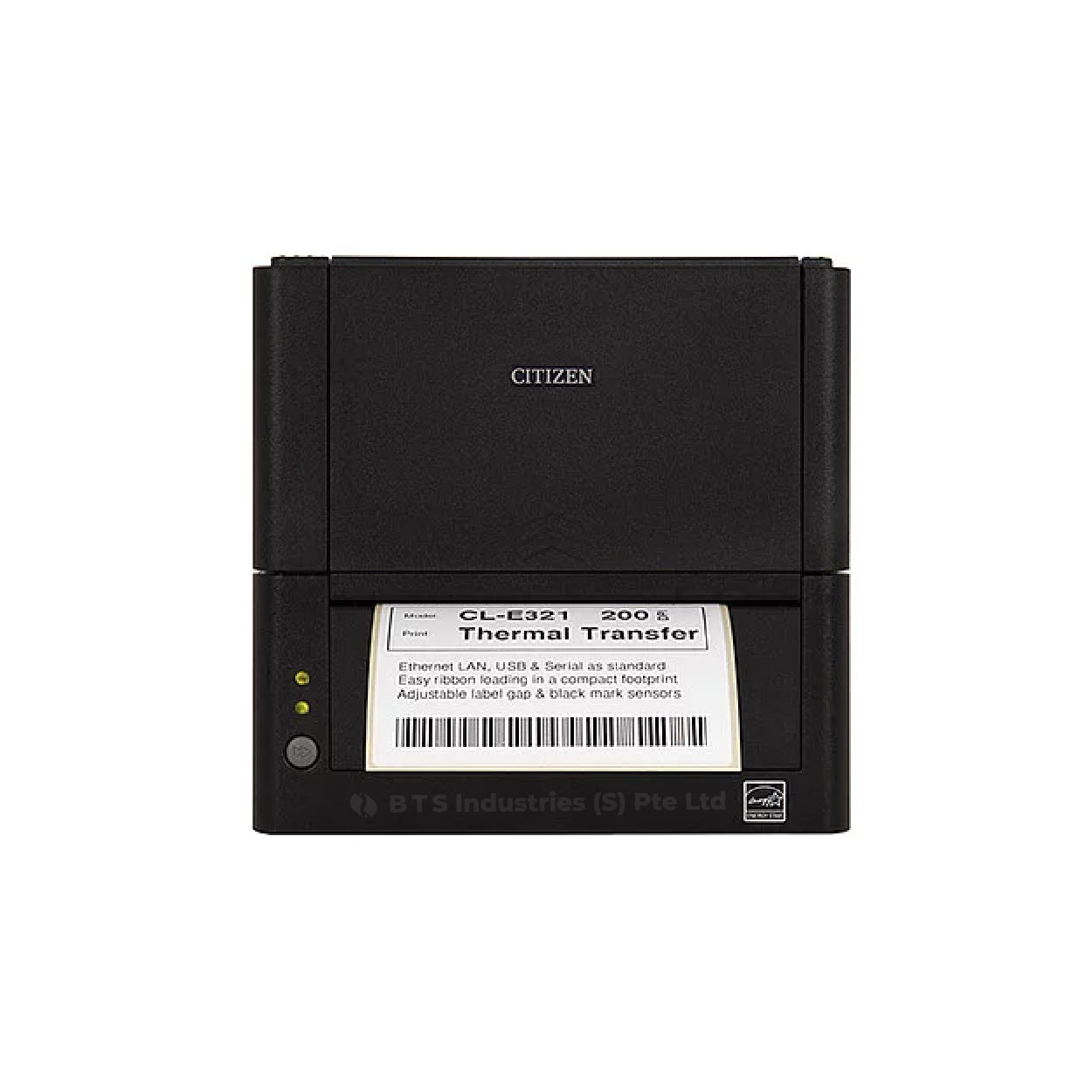

| Control panel | One LED, Control key: FEED |
| Flash (Non-Volatile Memory) | 16 MB total, 4 MB available for user |
| RAM (standard Memory) | 32 MB total, 4 MB available for user |
| Drivers and software | Free-of-charge from website, including support for various platforms |
| Emulations (Languages) |
|
| Barcodes |
|
| Size (W x D x H) and Weight |
|
| Cutter | Guillotine type, factory installable |
| Number of Cuts | 300,000 cuts on media 0.06 - 0.15mm ; 100, 000 cuts 0.15 - 0.25mm |
| EMC and safety standards |
|
