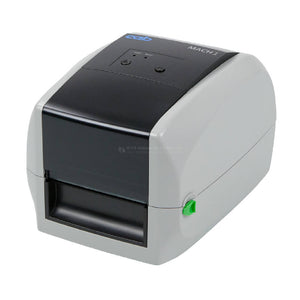

Compact Power, Precise Performance — Meet the CAB MACH1
Experience advanced label printing technology designed for reliability and everyday efficiency

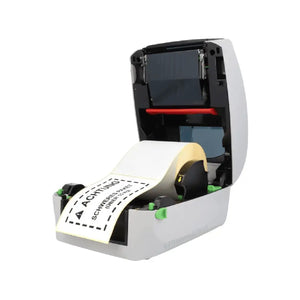

The CAB MACH1 is an entry-level desktop label printer designed for small to medium printing volumes. It supports both thermal transfer and direct thermal printing methods, offering reliable and high-quality results for various labeling needs. Available in 200 dpi or 300 dpi resolutions, the MACH1 delivers clear and precise printouts. Its user-friendly design features simple controls, status LEDs, and an easy media loading system, making operation straightforward. Built with a durable structure, it performs consistently in office, warehouse, and production environments. The printer accommodates label rolls up to 5 inches in diameter and ribbon lengths up to 300 meters, providing flexibility for different tasks. With USB, Ethernet, and serial interfaces, the MACH1 easily integrates into existing systems, making it ideal for product labeling, shipping, logistics, inventory management, and barcode applications.
Features:
- Button feed
- Material sensor calibration
- LED Ready / Status
- Colored TFT display with navigator pad
- Adjustable reflective sensor from below
- 16 MB of storage flash, 8MB of SDRAM ( 4 MB for the application )
Applications:
- 🏢 Office / Authorities
- 🛠️ Production
- 🏥 Healthcare
- 📈 Trading
- 📦 Warehouse
- 🚚 Transport / Logistics
- 🎪 Events
Specifications:
| Printing Technology | Thermal Transfer + Direct Thermal |
| Resolution | 203 - 300 dpi |
| Print Speed (Maximum) | 102 mm / s - 127 mm / s |
| Print Width (Maximum) | 105.7 mm - 108 mm |
| Media type |
Paper, cardboard, plastics, continuous material on a roll or fanfold |
| Media Width ( min to max ) | 25 mm - 112 mm |
| Media Thickness ( min to max ) | 0.06 mm - 0.2 mm |
| Media Length ( max ) | Up to 300 m |
| Roll Size ( max ), Core Size |
127 mm ( Roll Size ); 25.4 mm - 38.1 mm ( Core Size ); |
| Ribbon size | Up to 68 mm ( Roll Diameter ) |
| Ribbon winding & type | Outside / Inside |
| Ribbon variable length | Up to 300 m |
| Power Supply | 100 - 240 VAC, 50 / 60 Hz, PFC |
| Start of Printing Distance to locating edge | - |

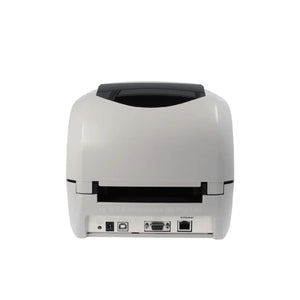

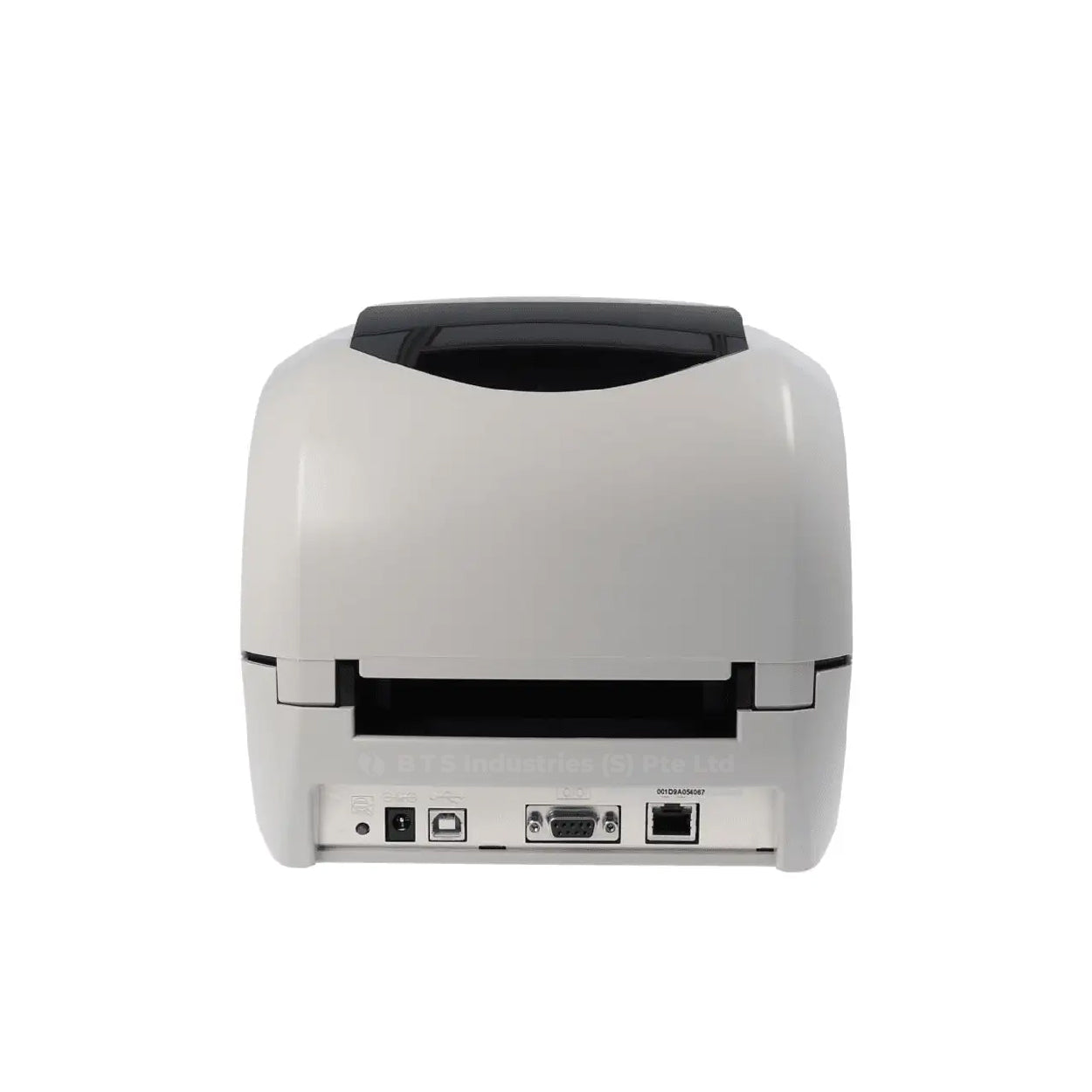

| Main Interface |
• R232C • USB for PC connection • Ethernet |
| Optional Interface |
Colored TFT display with navigator pad |
| Power Consumption | Up to 60W |
| Approvals |
CE, FCC, CCC, CB, UL, KCC |
| Main Storage (RAM) | 16 MB (internal storage), 8 MB (main RAM) |
| Drivers and software |
(Drivers) • cab Windows Driver ARCHIV (Software) • cablabel S3 Demo (Free) • cablabel S3 Lite (Free) • cablabel S3 Print • cablabel S3 Pro • MACH1/2-LoadParameter • NetworkSettingSetup |
| Temperature humidity for Operation |
+5 – 40°C / 30 – 85 %, not condensing |
| Size (W x D x H) and Weight |
210 x 186 x 280 mm, 2.7 kg |
