Precision Meets Power — The CAB SQUIX 4.3
Engineered for industrial performance, the SQUIX 4.3 delivers fast, flawless, and flexible label printing every time.

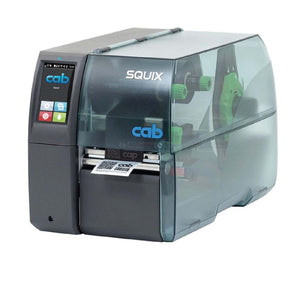

The CAB SQUIX 4.3 is an industrial-grade label printer designed for precise, high-performance printing in demanding environments. It supports both thermal transfer and direct thermal methods, offering sharp results up to 305 dpi. Featuring a 4.3-inch touch display, it’s user-friendly and easy to operate. With USB, Ethernet, and serial connectivity, the SQUIX 4.3 integrates smoothly into production systems. Built for durability and versatility, it’s ideal for manufacturing, logistics, warehousing, and product labeling applications.
Features:
- Reliable and quick printing
- Accurate print images
- Easy to operate
- Compact design
- Maximum quality standards
Applications:
- 📟 PCB
- 🔖 Type Plates
- 📦 Cardboard and pallets
Specifications:
| Printing Technology | Thermal Transfer + Direct Thermal |
| Resolution | 203 - 300 dpi |
| Print Speed (Maximum) | Up to 300 mm / s |
| Print Width (Maximum) | 104 - 108.4 mm |
| Media type | Paper, cardboard, synthetics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec, RFID labels according to separate specification, finishing roll, fanfold, |
| Media Width (min to max) | 20 mm - 116 mm |
| Media Thickness (min to max) | 0.03 - 0.6 mm |
| Media Length (min to max) | Up to 600 m |
| Roll Size (max), Core Size |
80 mm ( Roll Size ) 25.4 mm ( Core Size ) |
| Ribbon size | 25 mm - 114 mm diameter |
| Ribbon winding & type | Outside / Inside |
| Ribbon variable length | Up to 600 mm |
| Power Supply | 100 - 240 VAC ~ 50/60 Hz, PFC |
| Start of Printing Distance to locating edge | 1.2 mm - 2.8 mm |
| Main Interface |
• RS232-C 1,200 to 230,400 baud / 8 bit • USB 2.0 Hi-Speed device for plugging a PC • Ethernet 10 / 100 Mbit / s IPv4 and IPv6 • 2 USB hosts on the control panel, 2 USB hosts on the back of a unit • USB host, 24 VDC, for peripheral plugging |
| Optional Interface |
Digital I/O interface providing 8 inputs and 8 outputs |
| Power Consumption | <10 W in standby / 100 W in typical operation / max. 200 W |
| Approvals |
CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BIS, BSMI, KC-Mark, Mexico Reg. |
| Main Storage (RAM) | 256 MB total, 50 MB ( data storage ) |
| Drivers and software |
(Drivers) |
| Temperature humidity for Operation |
+5 - 40°C / 10 - 85 %, not condensing |
| Size (W x D x H) and Weight |
252 x 460 x 288 mm, 10 kg |
