SQUIX 6.3
6 People are viewing this right now
Wide-Format Labeling, Next-Level Efficiency
Advanced printing technology meets robust design for seamless production and demanding industrial applications

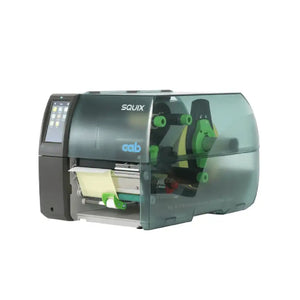

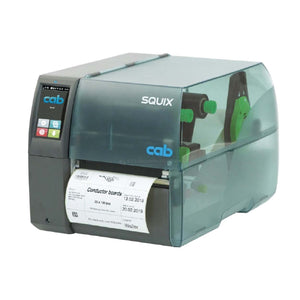

The CAB SQUIX 6.3 is a high-performance industrial label printer designed for demanding applications requiring wide-format labeling. It supports both thermal transfer and direct thermal printing methods, offering flexibility in media usage. With a maximum print width of 168 mm and resolutions up to 300 dpi, it delivers sharp and clear labels suitable for various materials, including paper, synthetic films, and textiles. The printer boasts a maximum print speed of 250 mm/s, ensuring efficient production workflows.
Equipped with a 4.3-inch touch display, the SQUIX 6.3 provides an intuitive user interface for easy operation. Connectivity options include USB, Ethernet, and RS232, facilitating seamless integration into existing systems. Its robust design and durable components make it ideal for applications in manufacturing, logistics, and warehousing, where high-quality, wide-format labels are essential.
Features:
- Reliable and quick printing
- Accurate print images
- Easy to operate
- Compact design
-
Maximum quality standards
Applications:
- 📟 PCB ( Printed Circuit Board )
- 🔖 Type plates
- 🧇 Cardboard and pallets
Specifications:
| Printing Technology | Thermal Transfer + Direct Thermal |
| Resolution | 203 dpi - 300 dpi |
| Print Speed ( Maximum ) | Up to 250 mm / s |
| Print Width ( Maximum ) | 162.6 mm - 168 mm |
| Media type: |
Paper, cardboard, synthetics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec |
| Media Width ( min to max ) | 46 mm - 176 mm |
| Media Thickness ( min to max ) | 0.03 mm - 0.6 mm |
| Media Length ( min to max ) | Up to 600 m |
| Roll Size (max), Core Size |
80 mm ( Roll Size ); 25.4 mm ( Core Size ); |
| Ribbon size | Up to 80 mm ( roll diameter ) |
| Ribbon winding & type | Outside / Inside |
| Ribbon variable length | Up to 600 m |
| Power Supply | 100 - 240 VAC ~ 50/60 Hz, PFC |
| Start of Printing Distance to locating edge | 0.5 mm - 3.2 mm |
| Main Interface |

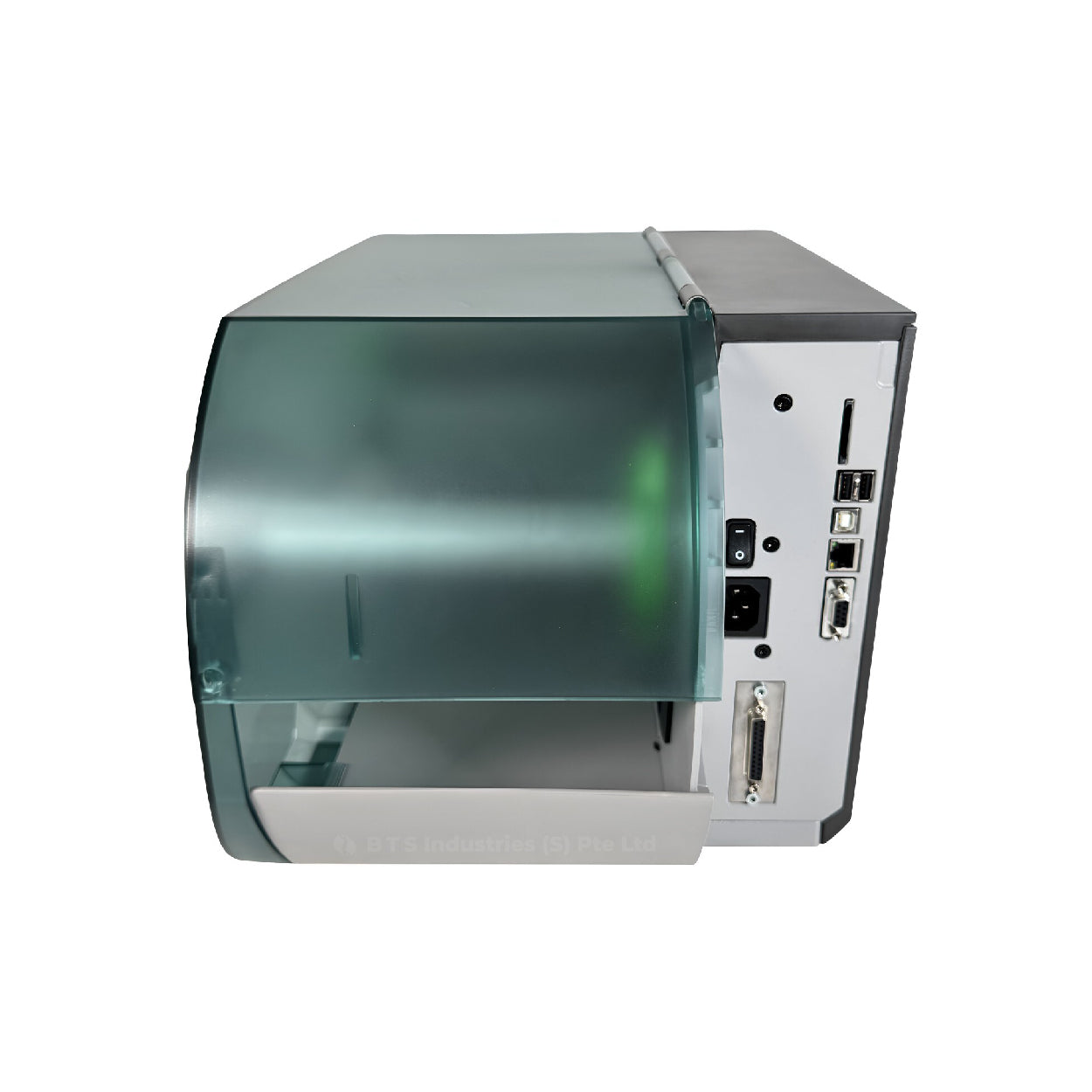

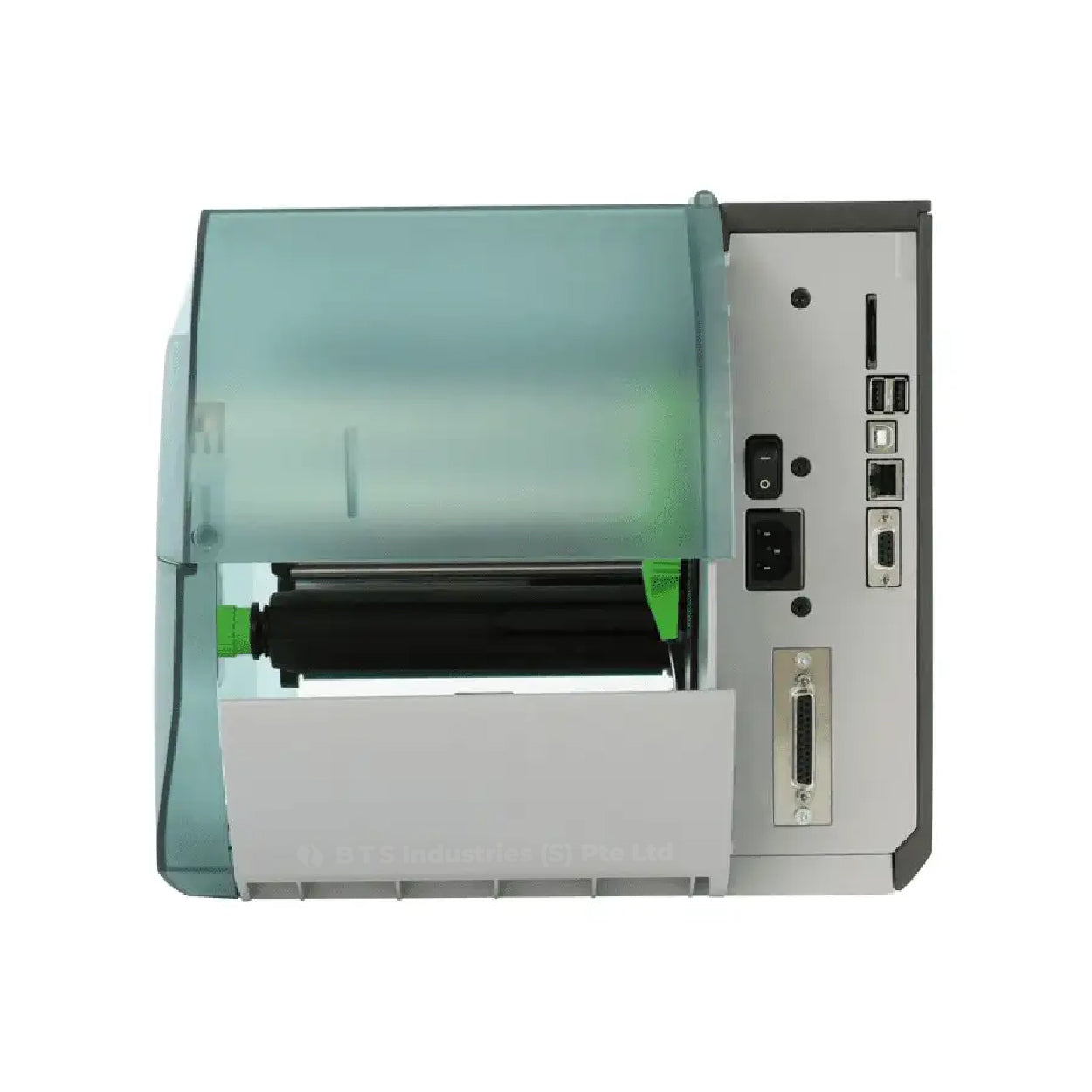

• RS232-C 1,200 to 230,400 baud / 8 bit • USB 2.0 Hi-Speed device for plugging a PC • Ethernet 10 / 100 Mbit / s IPv4 and IPv6 • 2 USB hosts on the control panel, 2 USB hosts on the back of a unit • USB host, 24 VDC, for peripheral plugging |
| Optional Interface |
|
| Power Consumption | <10 W in standby / 100 W in typical operation / max. 200 W |
| Approvals |
CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BIS, BSMI, KC-Mark, Mexico Reg. |
| Main Storage (RAM) | 256 MB (main), 50 MB (data storage) |
| Drivers and software |
(Drivers) • cab Linux Armv7 - 32 Bit Driver • cab Linux Armv8(aarch64) - 64 Bit Driver • cab Linux x86 - 32 Bit Driver • cab Linux x86 - 64 Bit Driver • cab MAC OS Driver • cab MAC OS X Driver • cab Windows Driver ARCHIV • cab Windows Driver NEW • cab Windows Driver NEW Release Notes (Software) • cab Download Converter • cablabel S3 Demo (Free) • cablabel S3 Lite (Free) • cablabel S3 Print • cablabel S3 Pro • Database Connector • LogService |
| Temperature / humidity for Operation |
+5 - 40°C / 10 - 85 %, not condensing |
| Size (W x D x H) and Weight |
312 x 460 x 288 mm, 14 kg |
