The Ultimate Labeling Solution — CAB SQUIX 8.3
Experience superior wide-format printing, speed, and durability engineered for the toughest industrial labeling challenges.

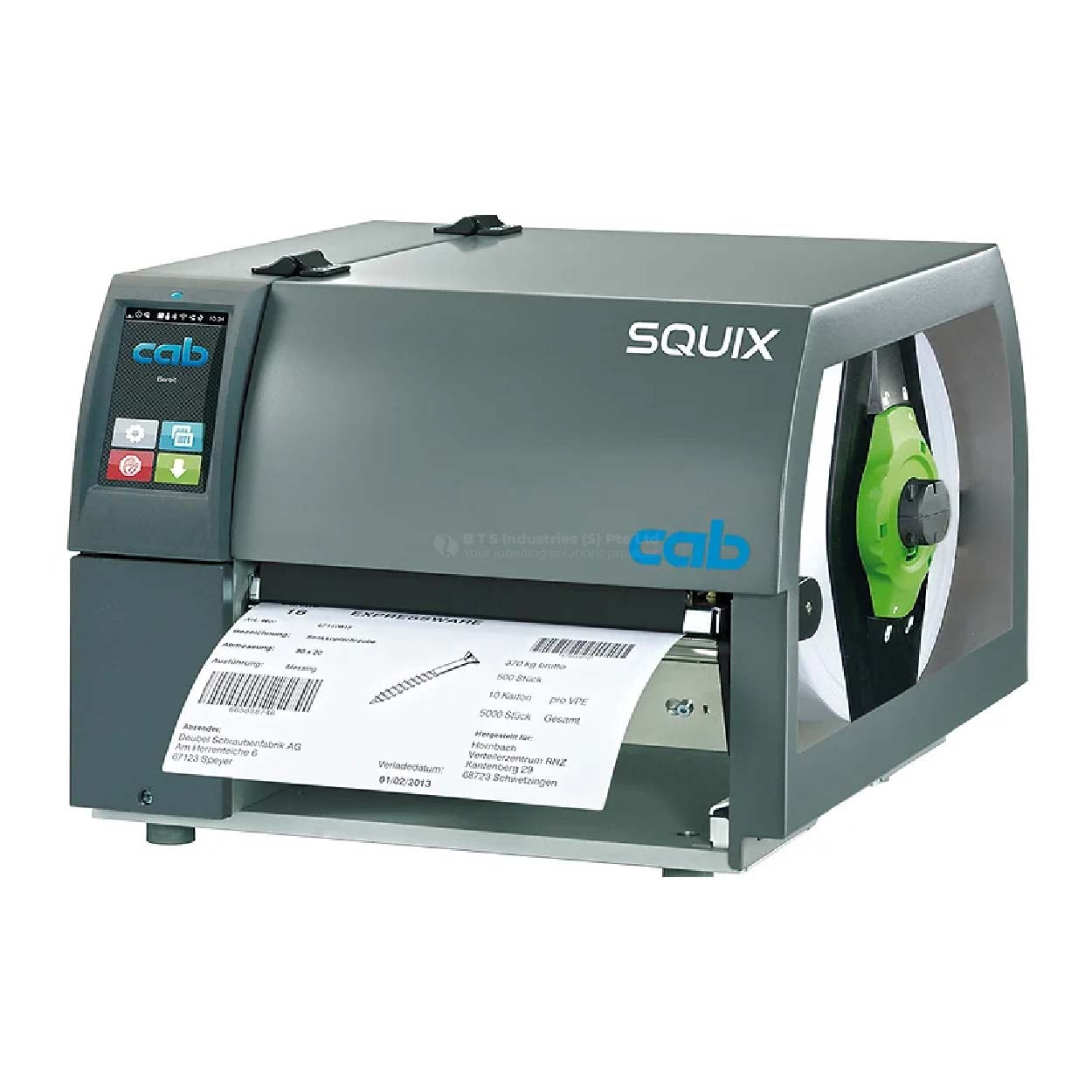

The CAB SQUIX 8.3 is an industrial-grade label printer designed for high-volume, wide-format labeling applications. With a maximum print width of 216 mm ( 8.5 inches ) and a resolution of 300 dpi, it delivers precise and clear labels suitable for large items such as pallets and drums. The printer supports both thermal transfer and direct thermal printing methods, providing versatility for different labeling needs. Its robust design ensures reliable performance in demanding environments, making it ideal for industries like logistics, manufacturing, and warehousing. Connectivity options include USB, Ethernet, and serial interfaces, facilitating seamless integration into existing systems.
Features:
- Reliable and quick printing
- Accurate print images
- Easy to operate
- Compact design
-
Maximum quality standards
Applications:
- 📟 PCB (Printed Circuit Board)
- 🔖 Type Plates
-
🧇 Cardboard and pallets
Specifications:
| Printing Technology | Thermal Transfer + Direct Thermal |
| Resolution | 300 dpi |
| Print Speed ( Maximum ) | Up to 150 mm / s |
| Print Width ( Maximum ) | Up to 216 mm |
| Media type |
Paper, cardboard, synthetics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec |
| Media Width ( min to max ) | 46 mm - 220 mm |
| Media Thickness ( min to max ) | 0.05 - 0.6 mm |
| Media Length ( max ) | Up to 3000 m |
| Roll Size ( max ), Core Size |
Up to 205 mm (roll size); 38.1 mm - 76 mm (core size) |
| Ribbon size | Up to 80 mm diameter (roll diameter) |
| Ribbon winding & type | Outside / Inside |
| Ribbon variable length | Up to 360 mm |
| Power Supply | 100 - 240 VAC ~ 50 / 60 Hz, PFC |
| Start of Printing Distance to locating edge | 2 mm |
| Main Interface |
• RS232-C 1,200 to 230,400 baud / 8 bit • USB 2.0 Hi-Speed device for plugging a PC • Ethernet 10/100 Mbit/s IPv4 and IPv6 • 2 USB hosts on the control panel, • 2 USB hosts on the back of a unit • USB host, 24 VDC, for peripheral plugging |
| Optional Interface |
• Digital I/O interface providing 8 inputs and 8 outputs |
| Power Consumption | 100 - 240 VAC ~ 50/60 Hz, PFC |
| Approvals |
CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BIS, BSMI, KC-Mark, Mexico Reg. |
| Main Storage ( RAM ) | 256 MB total (50 MB for data storage) |
| Drivers and software |
(Drivers) |
| Temperature humidity for Operation |
+5 - 40°C / 10 - 85 %, not condensing |
| Size ( W x D x H ) and Weight |
352 x 460 x 288 mm, 15 kg |
