XC Q4
5 People are viewing this right now
Two-Color, One Pass: Designed for GHS Labels
Maximize efficiency with two-colour printing, ribbon saving and seamless integration into your workflow.

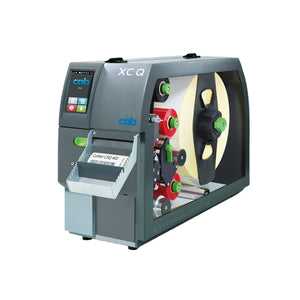

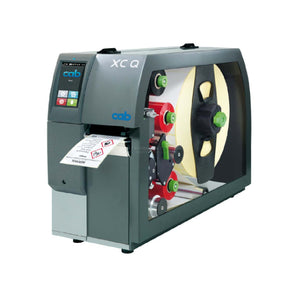

The CAB XC Q4 is a dual-printhead industrial label printer designed for two-color printing in a single pass, making it ideal for chemical labeling, GHS-compliant labels, and hazardous material warnings. It supports thermal transfer printing with two printheads (300 dpi resolution each), ensuring high-quality, durable labels. The printer accommodates large ribbon rolls (up to 1,000m) for extended operation and precise label handling, reducing downtime. Featuring a touchscreen interface, USB, Ethernet, and optional Wi-Fi connectivity, the XC Q4 ensures efficient, high-speed printing while maintaining compliance with strict labeling regulations.
Features:
- Heating can be assigned separately to each print head
- Print head 1 is lifted by menu control if printing only with print head 2
- Automated ribbon saving
- Continuous print images when cutting at no back feed
- Optimized printing so multiple print jobs can be printed seamless
- CSQ402 cutters are provided for XC Q4 printer
Applications:
- 🧪 Chemical Industry
- 🚚 Logistics / Shipping
- 🏭 Production / Manufacturing
- 🏷️ Retail / Promotions
Specifications:
| Printing Technology | Thermal Transfer |
| Resolution | 300 dpi |
| Print Speed ( Maximum ) | Up to 150 mm / s |
| Print Width ( Maximum ) | Up to 105.7 mm |
| Media type |
Paper, cardboard, synthetics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec, textile tape, finishing roll |
| Media Width ( min to max ) | 20 mm - 116 mm |
| Media Thickness ( min to max ) | Up to 0.1 mm |
| Media Length ( min to max ) | Up to 450 m |
| Roll Size ( max ), Core Size |
300 mm ( roll size ); 76 mm ( core size ) |
| Ribbon size | Up to 80 mm diameter (roll diameter) |
| Ribbon winding & type | Outside / Inside |
| Ribbon variable length | Up to 450 mm |
| Power Supply | 100 - 240 VAC, 50/60 Hz, PFC |
| Guidance of materials | Aligned to the left |
| Main Interface |
• RS232-C 1,200 to 230,400 baud / 8 bit |
| Optional Interface |
• Digital I/O interface providing 8 inputs and 8 outputs |
| Power Consumption | < 15 W in standby / 100 W in typical operation / max. 200 W |
| Approvals |
CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BSMI, Mexico Reg. |
| Main Storage (RAM) | 256MB total ( 50 MB for data storage ) |
| Drivers and software |
(Drivers) |
| Temperature humidity for Operation |
+5 - 40°C / 10 - 85 %, not condensing |
| Size (W x D x H) and Weight |
248 x 554 x 395 mm, 22 kg |
