XC Q6.3
2 People are viewing this right now
High-Impact Warning & Compliance Labels. One Pass. Two Colours
From synthetics to heavy-duty media—XC Q6.3 handles wide materials and harsh environments with ease.

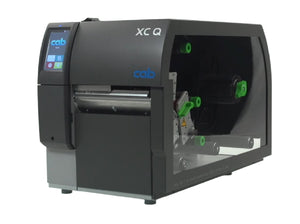

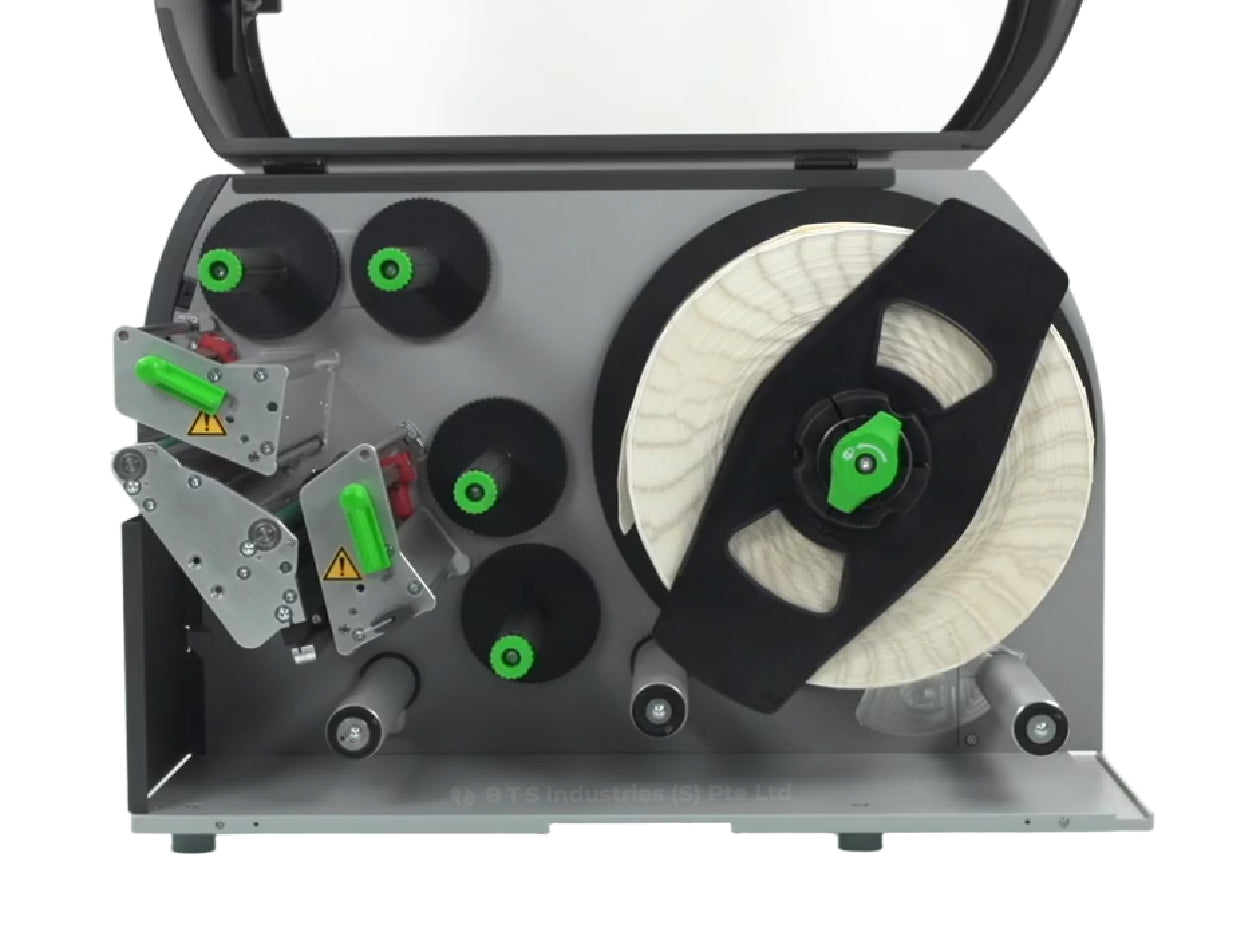

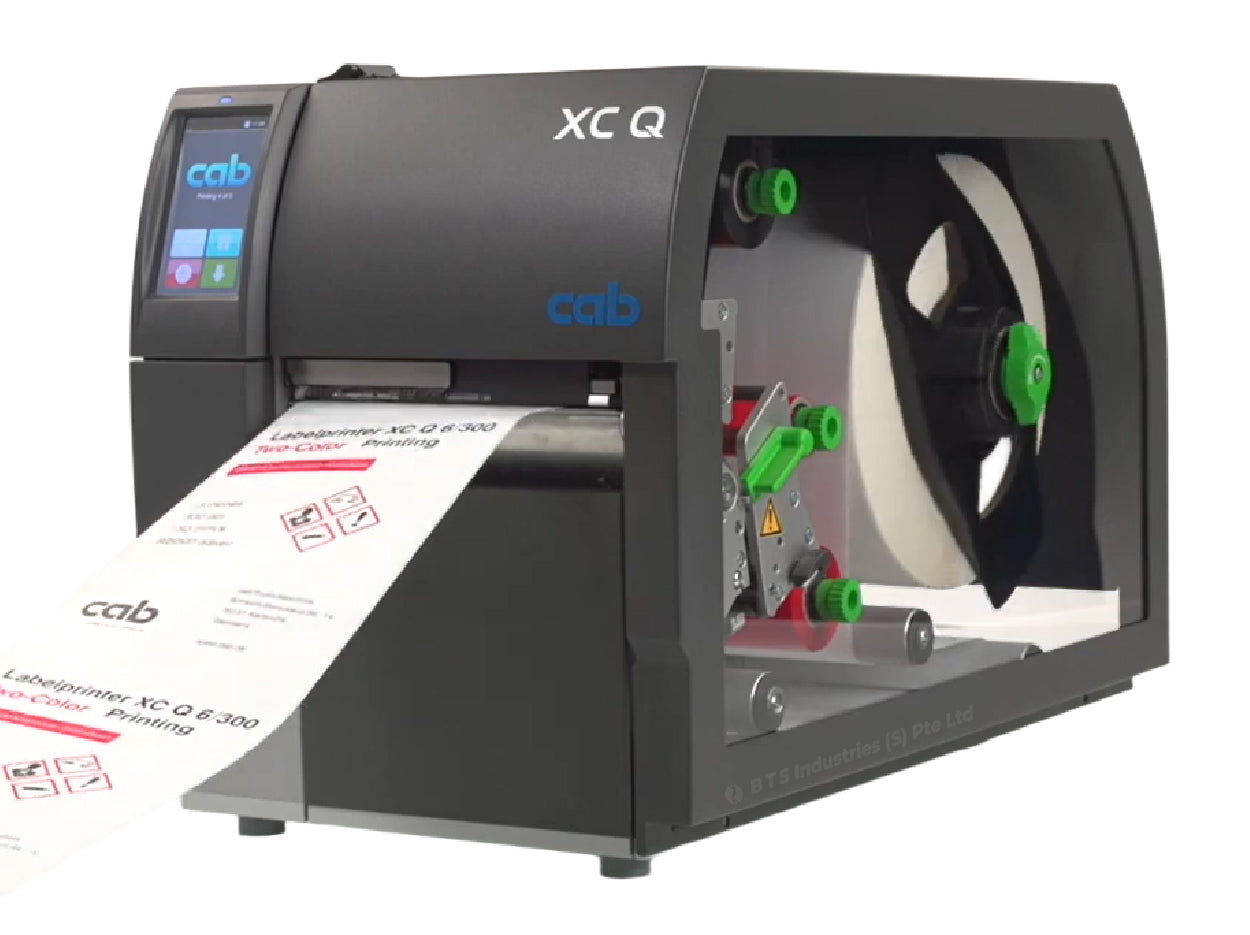

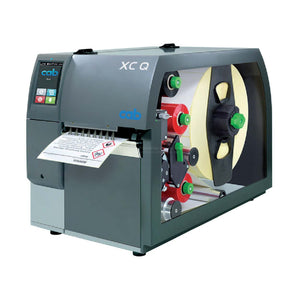

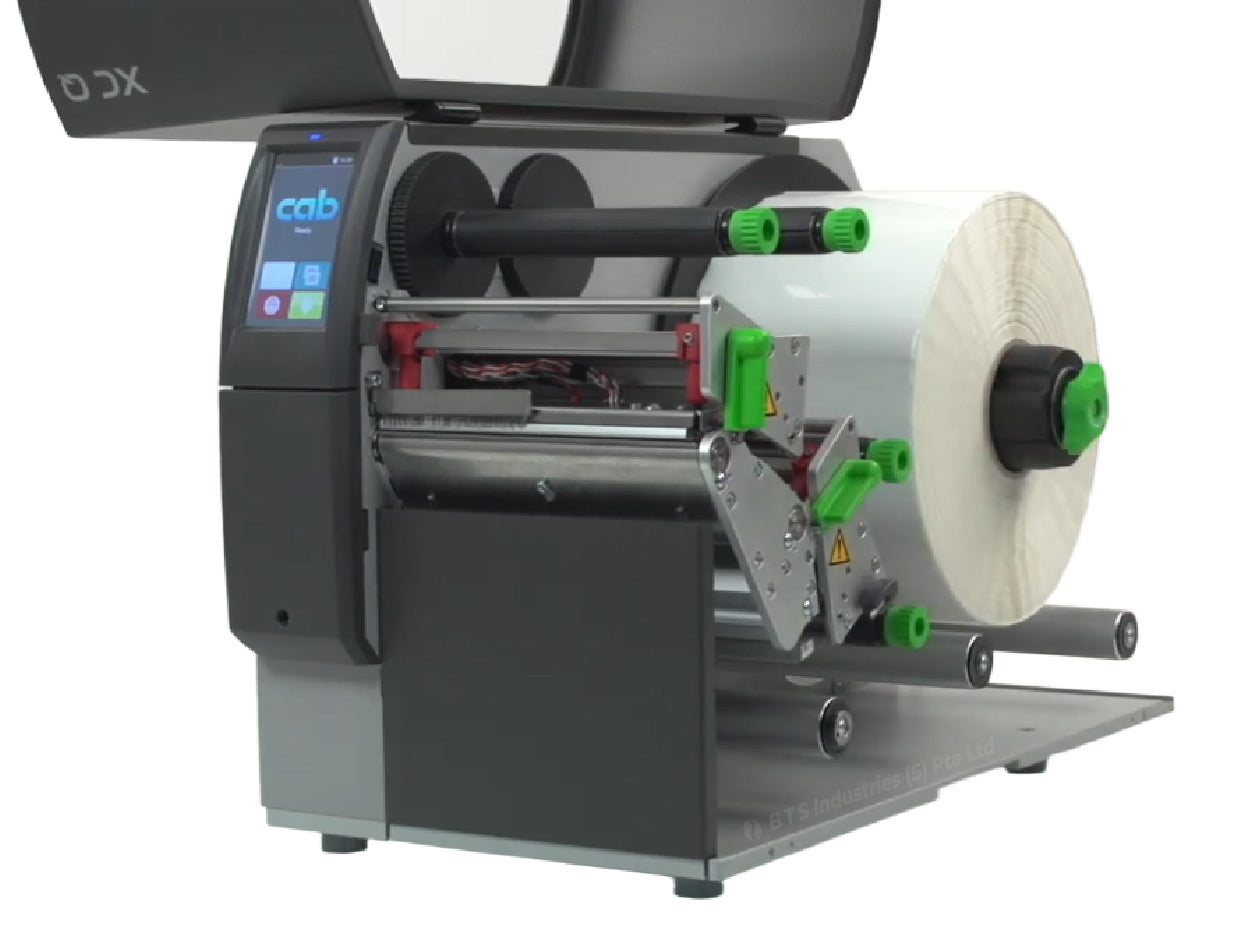

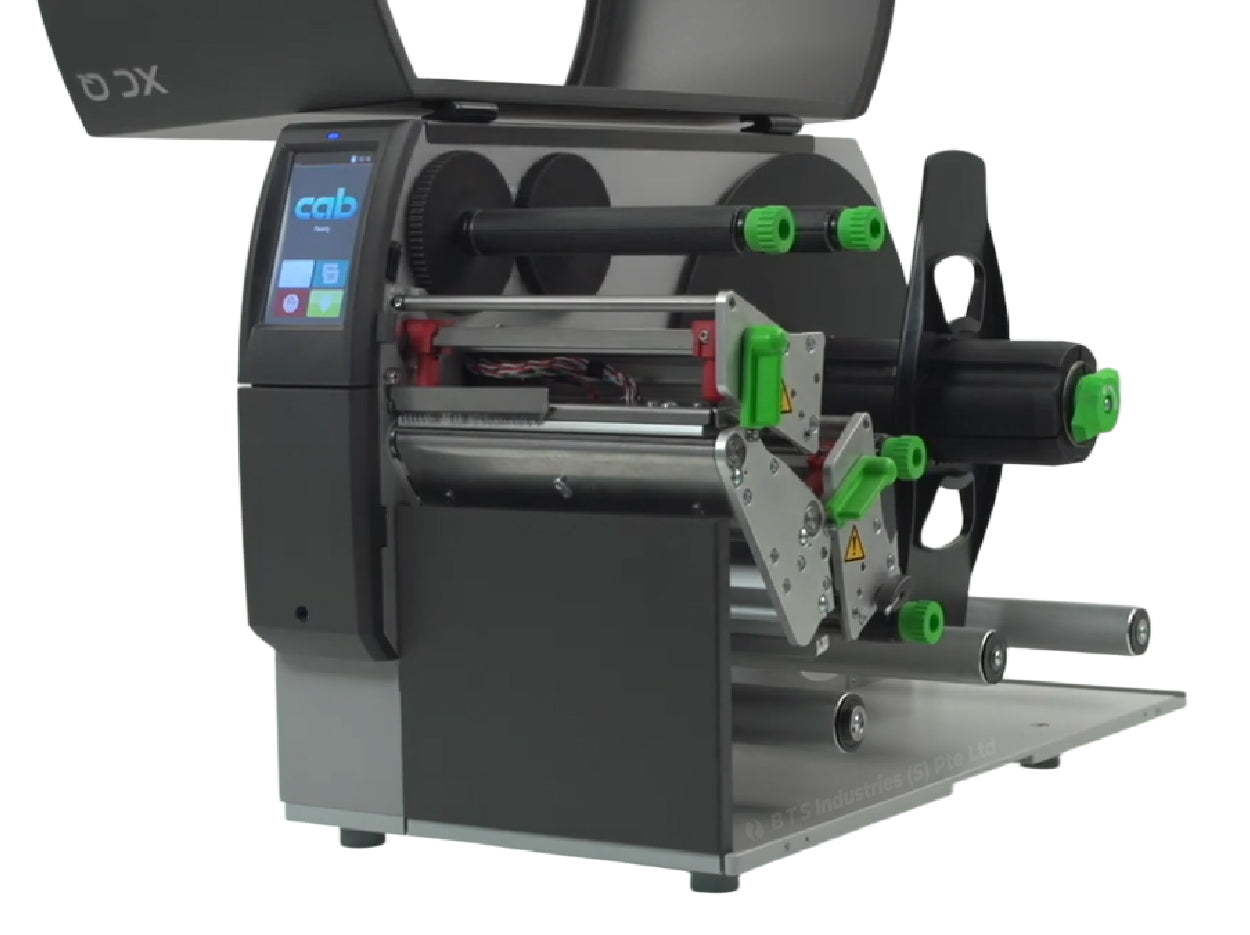

The CAB XC Q6.3 is a dual-printhead industrial label printer designed for two-color thermal transfer printing in a single pass, making it ideal for GHS-compliant chemical labels, hazardous material warnings, and industrial applications. It features two 300 dpi printheads, allowing for simultaneous printing of black and red (or other colors) on labels. With a maximum print width of 6.3 inches, it supports large-format labels while accommodating ribbon rolls up to 1,000m for extended operation. The touchscreen interface, USB, Ethernet, and optional Wi-Fi connectivity ensure seamless integration and efficient, high-speed printing in demanding environments.
Features:
- Heating can be assigned separately to each print head
- Print head 1 is lifted by menu control if printing only with print head 2
- Automated ribbon saving
- Continuous print images when cutting at no backfeed
- Optimized printing so multiple print jobs can be printed seamless
- CSQ402 cutters are provided for XC Q4 printer
Applications:
- 🧪 Chemical Industry
- 🚚 Logistics / Shipping
- 🏭 Production / Manufacturing
- 🏷️ Retail / Promotions
Specifications:
| Printing Technology | Thermal Transfer |
| Resolution | 300 dpi |
| Print Speed (Maximum) | Up to 150 mm / s |
| Print Width (Maximum) | Up to 162.6 mm |
| Media type |
Paper, cardboard, synthetics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec |
| Media Width (min to max) | 46 mm - 176 mm |
| Media Thickness (min to max) | 0.1 mm |
| Media Length (min to max) | Up to 450 m |
| Roll Size (max), Core Size |
Up to 300 mm ( roll size ); 76 mm ( core size ) |
| Ribbon size | Up to 80 mm diameter (roll diameter) |
| Ribbon winding & type | Outside / Inside |
| Ribbon variable length | Up to 450 mm |
| Power Supply | 100 - 240 VAC, 50 / 60 Hz, PFC |
| Guidance of materials | Aligned to the left |
| Main Interface |
• RS232-C 1,200 to 230,400 baud / 8 bit |
| Optional Interface |
• Digital I / O interface providing 8 inputs and 8 outputs |
| Consumption of power | < 15 W in standby / 100 W in typical operation / max. 200 W |
| Approvals |
CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BSMI, Mexico Reg. |
| Main Storage (RAM) | 256 MB total ( 50 MB for data storage ) |
| Drivers and software |
(Drivers) |
| Temperature humidity for Operation |
+5 - 40°C / 10 - 85 %, not condensing |
| Size (W x D x H) and Weight |
358 x 554 x 395 mm, 24 kg |
