Citizen CL-S631II

Sale price SGD 1,888.00
view

2 People are viewing this right now

Add to Wishlist Add to Compare

Ask a question
Share
Discover our machines

Desktop printing with high, 300 dpi performance

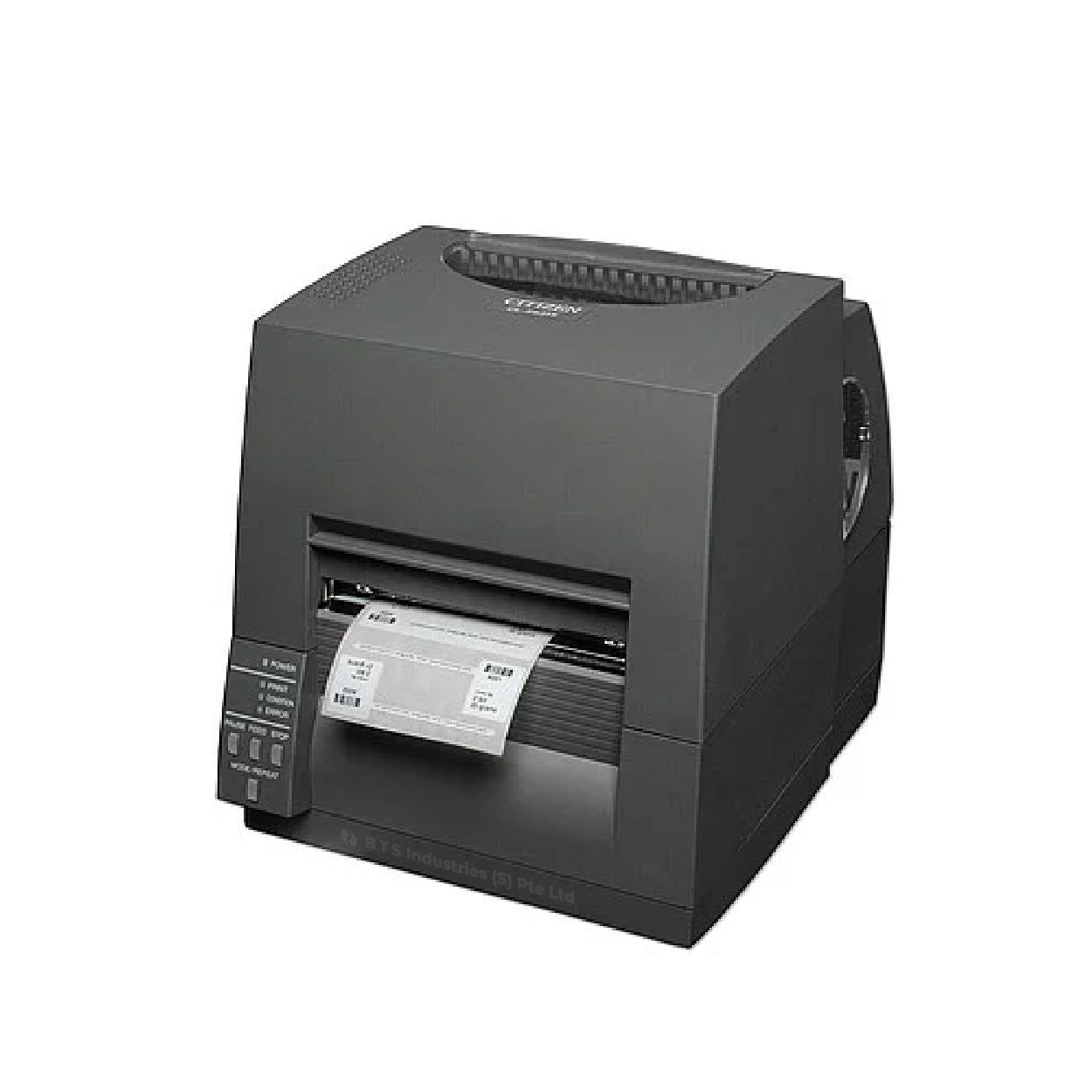

CL-S631II with 300 dpi

Our desktop range is designed to provide simple, low-cost, high quality printing and the best-in-class CL-S631II offers the finest resolution, providing 300 dpi for the reproduction of logos, pictures and EAN-compliant barcodes.  The CL-S631II is supplied as standard with Cross-Emulation™ technology with both Zebra® and Datamax® emulations, plus a range of connectivity options including USB, Ethernet and WiFi.



Features:

  • Direct and thermal transfer printing
  • Robust all-metal mechanism
  • Easy media loading
  • Accessories & Options: Basic peeler, Auto cutter (Contact us for more info)
  • Cross Emulation, autoswitch between Zebra® and Datamax® emulations



Applications:

  • 🏥 Healthcare
  • ⚙️ Manufacturing
  • 🛒 Retail



Specifications:

Printing Technology Thermal Transfer + Direct Thermal
Resolution 300 dpi
Print Speed (Maximum) 4 inches per second ( 100 mm / s )
Print Width (Maximum) 4 inches ( 104 mm )
Media Width (min to max) 0.5 - 4.6 inches ( 12.5 - 118 mm )
Media Thickness (min to max) 63.5 to 254 µm
Media Length (min to max) 0.25 to 64 inches ( 6.35 to 1625.6 mm )
Roll Size (max), Core Size Inside diameter 5 inches ( 125 mm ) External diameter 8 inches ( 200 mm ) Core size 1 inch ( 25 mm )
Ribbon size 2.9 inches (74 mm) maximum outside diameter. 360 meters length. 1 inch ( 25 mm ) core
Ribbon winding & type Ink side in or out, switch selectable. Wax, Wax/Resin or Resin Type
Ribbon system ARCP™ automatic ribbon tension adjustment

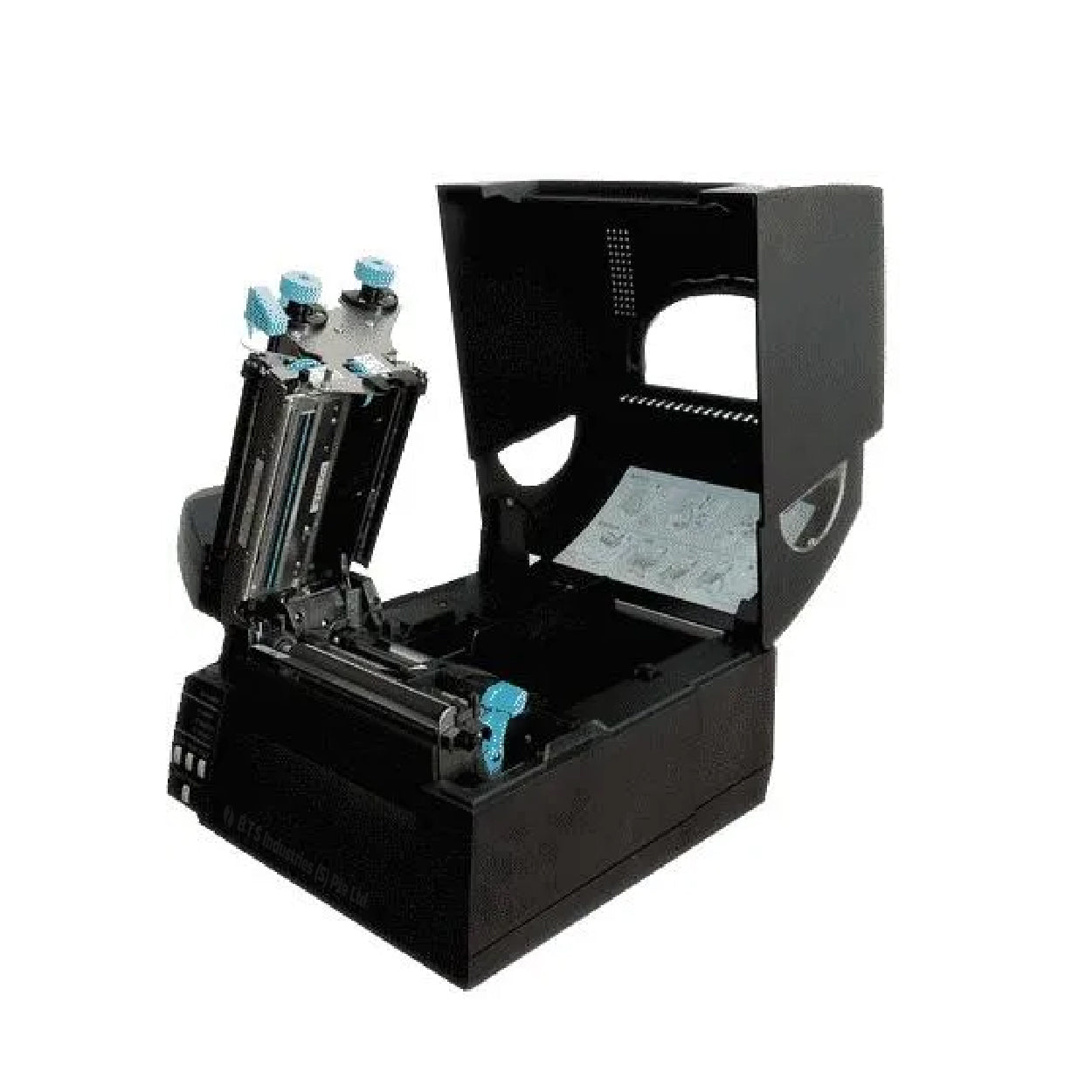

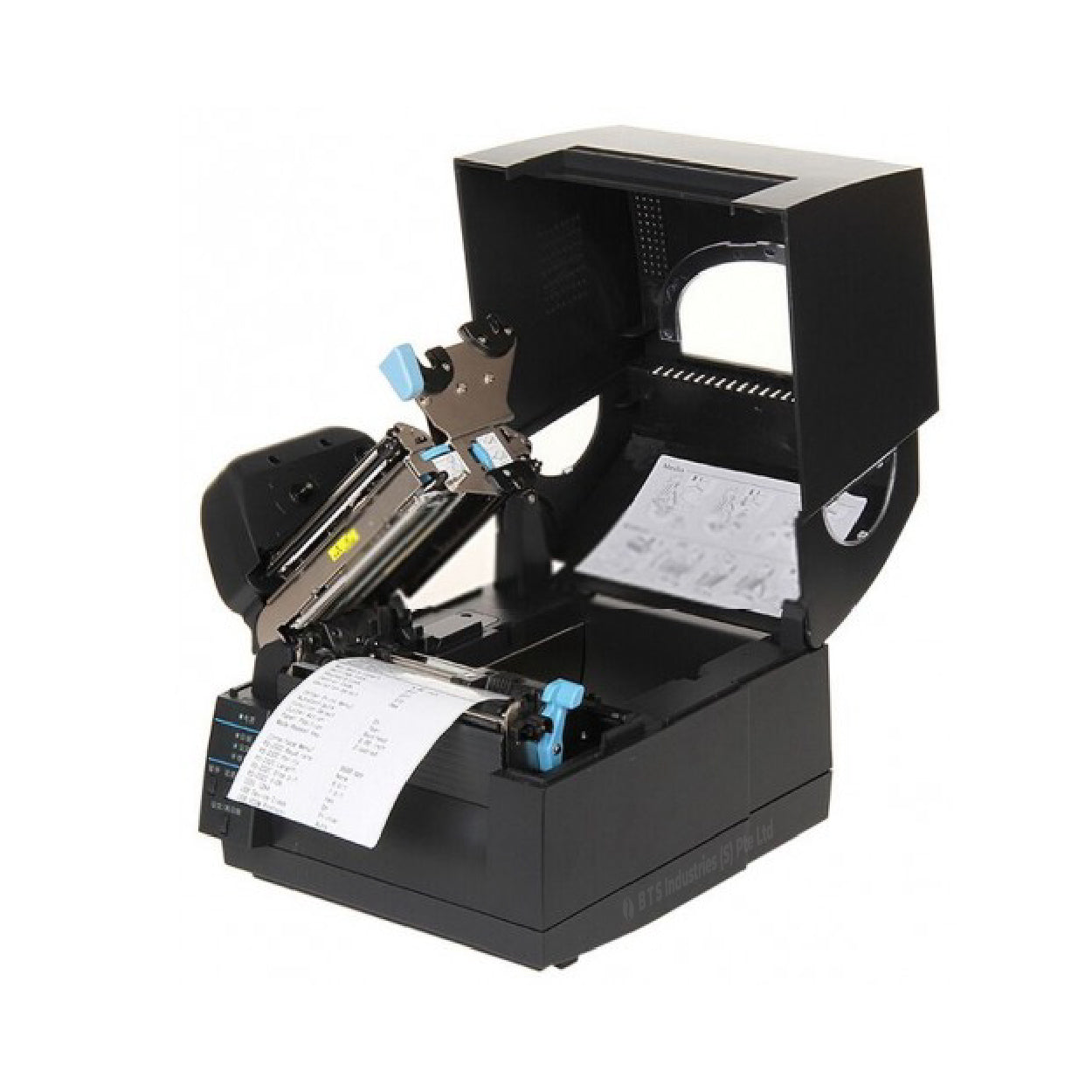

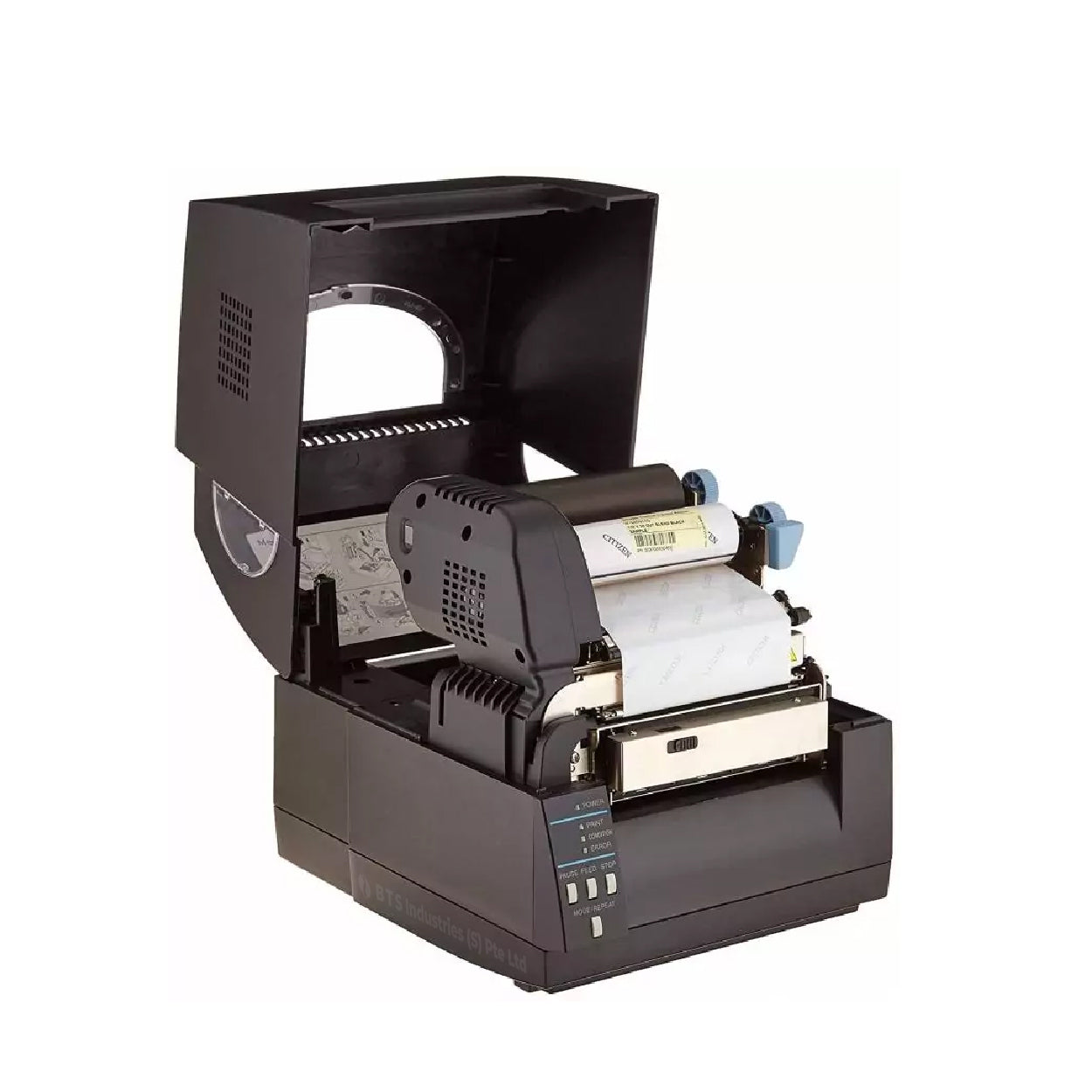

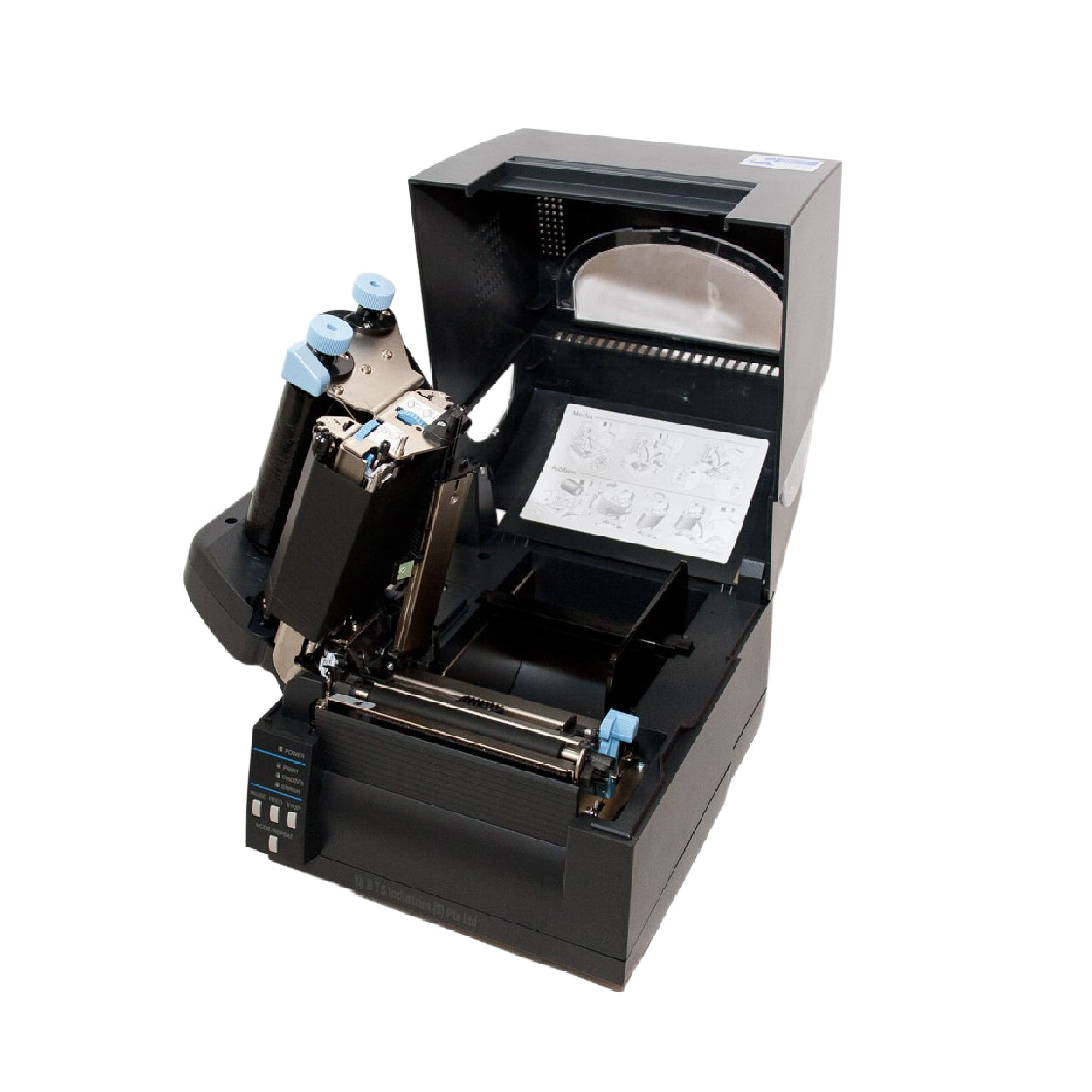

Mechanism Hi-Lift™ metal mechanism with wide opening head
Media Sensor Fully adjustable gap, notch and reflective black mark
Main Interface Dual Interface Serial ( RS-232C ), USB ( version 2.0, full speed )
Optional Interface
  • Wireless LAN 802.11b and 802.11g standards, 100 meters, 64/128 bit WEP, WPA, up to 54 Mbps
  • Ethernet ( 10/100 Base T )
  • Parallel ( IEEE 1284 compliant )
Case Hi-Open™ industrial ABS case with safe close
Control panel 4 buttons and 4 LEDs
Flash (Non-Volatile Memory) 16 MB total, 4 MB available for user
RAM (standard Memory) 32 MB total, 8 MB available for user
Drivers and software Free-of-charge from website, including support for various platforms
Emulations (Languages)
  • Datamax® DMX
  • Cross-Emulation™ - autoswitch between Zebra® and Datamax® emulations
  • Zebra® ZPL2®
  • CBI™ BASIC Interpreter
  • Eltron® EPL2®
Size (W x D x H) and Weight


231 x 289 x 270 mm, 4.5 kg
