Description

POWERFUL PRINTING IN THE PALM OF YOUR HAND

Lightweight Design, Heavyweight Performance

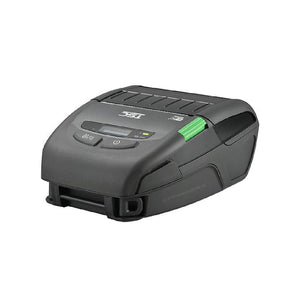

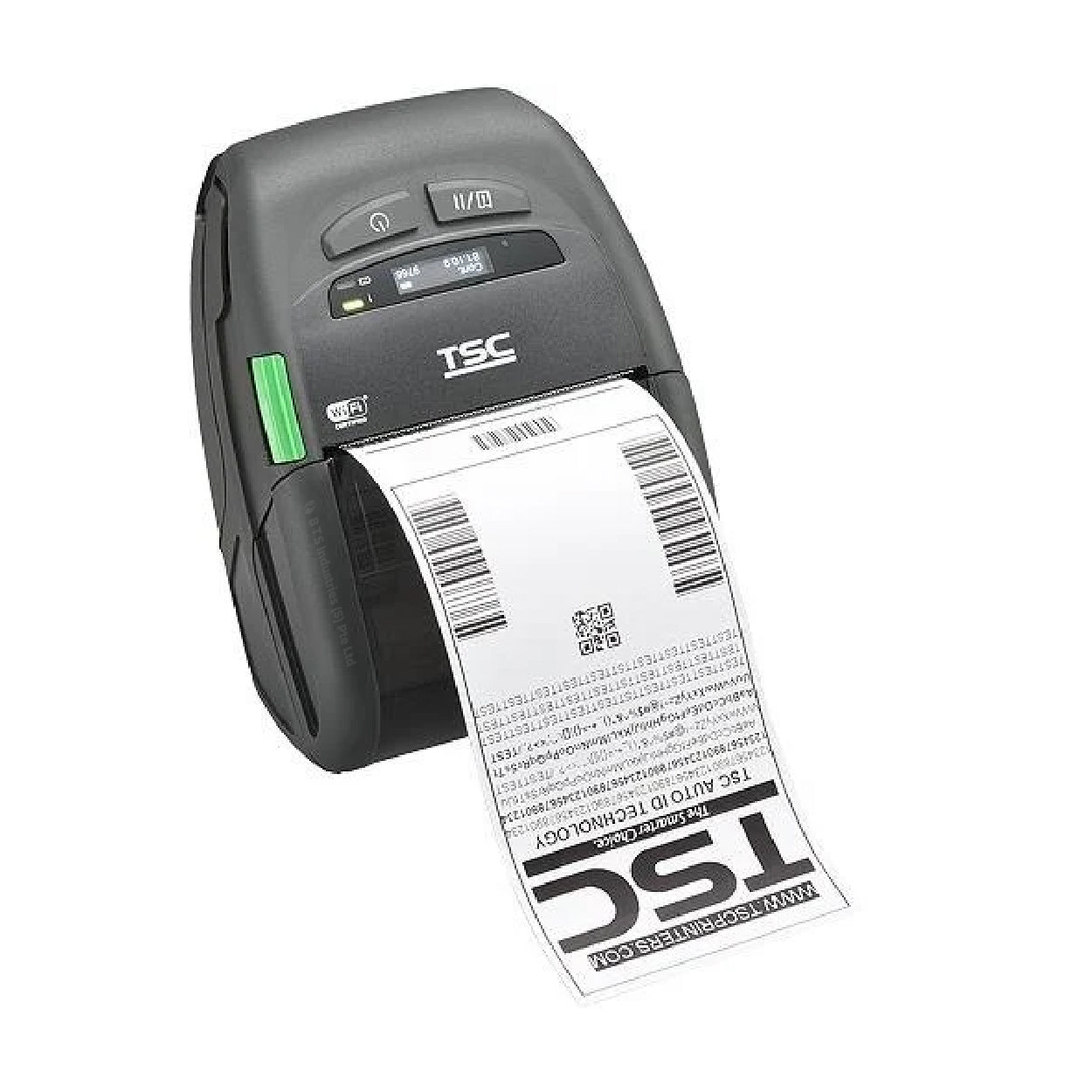

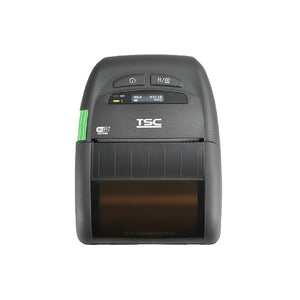

The TSC Alpha-30L is a rugged 3-inch mobile label printer designed for on-the-go printing in industries like logistics, retail, and healthcare. It supports direct thermal printing with a 203 dpi resolution for crisp barcodes and labels. Featuring fast print speeds up to 5 inches per second, it ensures efficiency in demanding environments. The durable, lightweight design is IP54-rated for dust and water resistance and can withstand 6-foot drops. Connectivity options include USB, Bluetooth, NFC, and optional Wi-Fi, allowing seamless integration. The Alpha-30L is ideal for businesses needing durable, high-performance mobile label printing.



Features:

  • IP54-rated
  • Withstand 1.0 m tumble
  • Withstand up to 6-ft. (1.8 m) drop,& 8.2-ft. (2.5 m)& with protective case

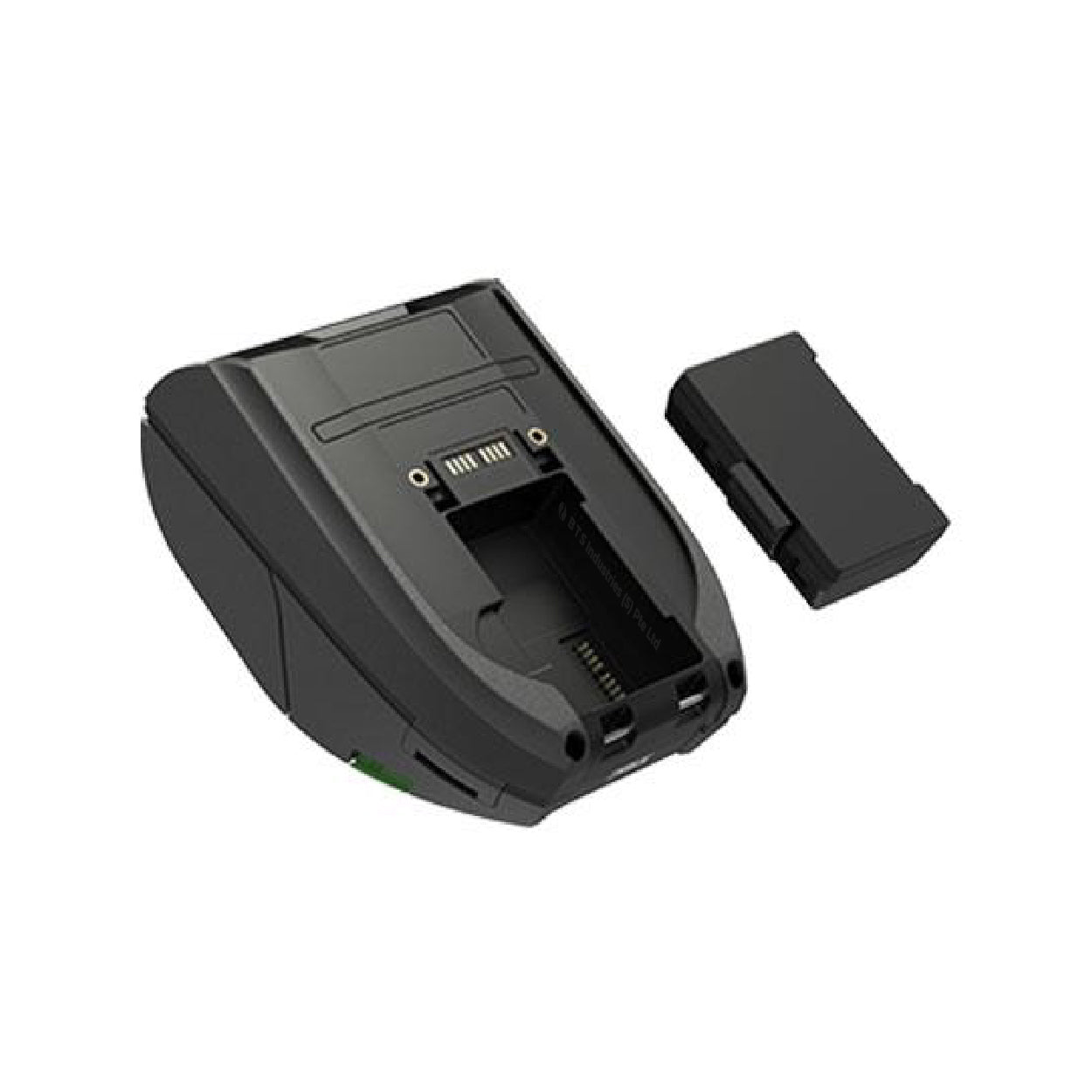

  • High capacity 3030 mAh rechargeable Li-ion battery
  • Supports label width up to 3.15-in. (80 mm)
  • (Wireless communication interfaces)
  • MFi Bluetooth®5.0
  • 802.11 a/b/g/n/ac Wi-Fi with Bluetooth®& 4.2 combo module
  • Built-in peeler or linerless kit option



Applications:

  • 🚚  Shipping and Logistics
  • 📦  Warehouse and Fulfillment
  • 🏥  Healthcare
  • 📄  Linerless
  • 🏷️  Product and Item Labels



Specifications:

Printing Technology Direct Thermal
Resolution 8 dots / mm ( 203 dpi )
Print Speed (Maximum) Up to 127 mm ( 5 " ) / second
Print Width (Maximum) 72 mm ( 2.83 '' )
Media source

• Linerless Labels
• Wristbands ( Direct Thermal )
• Tag Stock ( Lightweight Card / Tickets )
• Synthetic Direct Thermal Labels ( Polypropylene / Polyester )
Media Type Die cut, black mark, receipt, fan-fold, linerless, continuous (outside wound)
Media Width 25.4 mm - 80 mm ( 1 " - 3.15 " ) with liner
Media Thickness 0.06 mm - 0.16 mm ( 2.36 mil - 6.3 mil )
Media Roll Capacity 67 mm ( 2.64 '' ) OD
Media Core Diameter Standard: 12.7 mm ( 0.5 " )
•  Optional:
     19.1 mm ( 0.75 '' )
     25.4 mm + 38.1 mm ( 1" + 1.5" )
Label Length 2794 mm ( 110 '' )
Barcode
  • 1D bar code

• Code128UCC
• Code128 subsets A, B, C
• EAN128
• Interleaved 2 of 5
• Interleaved 2 of 5 with check digit,
• Standard 2 of 5
• Industrial 2 of 5
• Code39
• Code39 with check digit
• Code93
• EAN13
• EAN8
• UPCA,
• UPCE
• EAN
• UPC 2 (5) digits add-on
• Codabar
• Postnet
• MSI
• MSI with check digit
• PLESSEY
• China post
• ITF14
• EAN14
• Code11
• TELEPEN
• TELEPEN number
• PLANET
• Code49
• Deutsche Post
• Identcode
• Deutsche Post Leitcode
• LOGMARS

  • 2D bar code

• CODABLOCK F mode
• GS1 DataBar
• GS1 DataMatrix
• Maxicode
• AZTEC
• PDF417
• QR Code
• Micro PDF417
• TLC39
Winding Direction Face Out
Ink Type •No ribbon required
(machine uses heat-sensitive label media)
Ink Catridge •No ribbon required
(machine uses heat-sensitive label media)
Barcode Font



• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font


Environment Conditions Operation: -20˚C - 50˚C (-4˚F - 122˚F), 10% - 90% non-condensing
Storage: -30˚C - 70˚C (-22˚F - 158 ˚F), 10% - 90% non-condensing
Charging: 0˚C - 40˚C (32˚F - 104 ˚F), 10% - 90% non-condensing
Environmental Concerns Comply with RoHS, WEEE, REACH, China RoHS
Main Interface

Either one selected
• Type C USB 2.0 + MFi Bluetooth 5.0 + Passive NFC tag
• Type C USB 2.0 + 802.11 a/b/g/n/ac with Bluetooth 5.0 + Passive NFC tag
* Type C is for communication only

• 2 LED indicators (battery charging status, printer status),
• 2.3 " color LCD display, 320 x 240 pixels
Optional Interface

• Type C USB 2.0 cable
• 0.75 '' media core adaptor
• 1 "+ 1.5 " media core adaptor

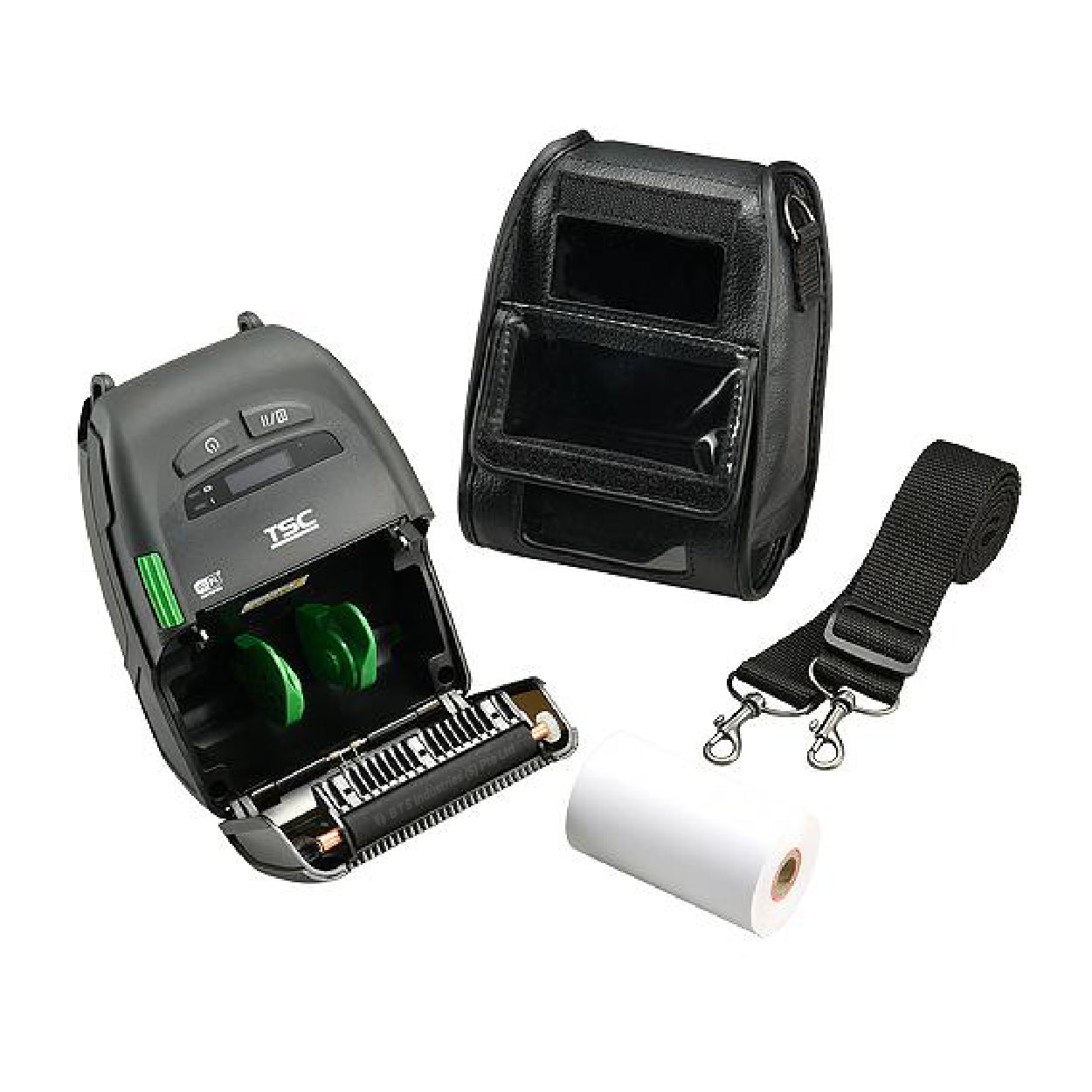

• Protective case with shoulder strap
• Shoulder strap

• Li-ion smart battery
• 1-slot docking cradle
• 4-slot docking cradle
• 1-slot battery charger
• 4-slot battery charger
• 12-24 V DC vehicle power adaptor
• 12-60 V DC vehicle power adaptor

• 12-60 V DC vehicle open end power supply
• 12-48 V DC power source with battery eliminator
• 12-48 V wire to wire battery eliminator with power supply
• Wire to wire dummy battery pack
• Vehicle mount adaptor can be used with RAM®


MOUNTS
• Quick release vehicle mount kit
• External fanfold media holder with expansion kit
• External fanfold media holder with quick release vehicle mount kit
Printer Language

TSPL-EZC (EPL2, ZPL2, CPCL), or ESC-POS
Size (W x D x H) and Weight

117 mm (W) x 79 mm (D) x 173 mm (H)
4.61 " (W) x 3.11 " (D) x 6.81 " (H)

745g ( 1.64 lbs )
