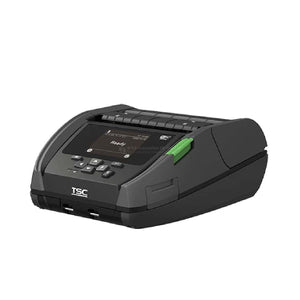

Alpha-40L
19 People are viewing this right now
THE POWER OF MOBILE PRINTING IN YOUR HANDS
Rugged And Reliable Mobile Printing Delivers Your Labels Wherever Your Need
Building on its legacy of rugged design and reliable performance, the TSC Alpha-40L delivers a truly mobile printing solution that combines durability with intelligent connectivity. Designed to withstand demanding environments with military-grade drop and vibration standards, the Alpha-40L ensures dependable operation for professionals in the field. Equipped with smart battery management, remote monitoring through SOTI Connect, and advanced wireless options such as Apple-certified MFi Bluetooth® 5.0, Wi-Fi fast roaming, and NFC one-touch pairing, the Alpha-40L empowers enterprises with seamless integration, secure communications, and real-time insights into device health—offering a premium, worry-free mobile printing experience anywhere work takes you.
Features:
- Rugged 4-inch mobile printer built to military-grade drop and vibration standards.
- Smart battery management with capacity, charge, and cycle tracking.
- Remote monitoring and control via SOTI Connect.
- Apple-certified MFi Bluetooth® 5.0 and dual-band Wi-Fi with fast roaming.
- NFC one-touch pairing for instant device connection.
Applications:
- 🏷️ Product / Label Items
- 🚚 Shipping / Logistics
- 🏥 Healthcare
- 🛒 Retail
- 📦 Warehouse / Fulfilment
- ♻️ Linerless
Specifications:
| Printing Technology | Direct Thermal |
| Resolution | 8 dots / mm (203 dpi) |
| Print Speed (Maximum) | Up to 127mm (5'') / second |
| Print Width (Maximum) | 104 mm (4.09'') |
| Media source: |
|
| Media Type: |
Die cut, black mark, receipt, fan-fold, linerless, continuous (outside wound) |
| Media Width: | 50.8mm - 112mm (2" - 4.4") with liner |
| Media Thickness: |
0.06mm - 0.16mm (2.36mil - 6.3mil) |
| Media Roll Capacity: |
Up to 2794mm (110'') |
| Media Core Diameter: |
Standard: 12.7mm (0.5") Optional: • 19.1mm (0.75'') • 25.4mm + 38.1mm (1" + 1.5")
|
| Label Length: |
2,794mm (110") |
| Barcode: |
Code128UCC, Code128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit,
CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, |
| Winding Direction: | Face Out |
| Ink Type: |
•No ribbon required (machine uses heat-sensitive label media) |
| Ink Catridge: |
•No ribbon required (machine uses heat-sensitive label media) |
| Barcode Font: |
• 8 alpha-numeric bitmap fonts |
| Environment Conditions: |
Operation: -20˚C - 50˚C (-4˚F - 122˚F), 10% - 90% non-condensing Storage: -30˚C - 70˚C (-22˚F - 158 ˚F), 10% - 90% non-condensing Charging: 0˚C - 40˚C (32˚F - 104 ˚F), 10% - 90% non-condensing |
| Environment Concerns: |
Comply with RoHS, WEEE, REACH, China RoHS |
| Main Interface: |
• Either one selected:
• Type C USB 2.0 + MFi Bluetooth 5.0 + Passive NFC tag • Type C USB 2.0 + 802.11 a/b/g/n/ac with Bluetooth 5.0 + Passive NFC tag * Type C is for communication only |
| Optional Interface: |
• Type C USB 2.0 cable • 0.75'' media core adaptor • 1"+ 1.5" media core adaptor • Protective case with shoulder strap • Shoulder strap • Li-ion smart battery • 1-slot docking cradle • 4-slot docking cradle • 1-slot battery charger • 4-slot battery charger • 12-24V DC vehicle power adaptor • 12-60V DC vehicle power adaptor • 12-60V DC vehicle open end power supply • 12-48V DC power source with battery eliminator • 12-48V wire to wire battery eliminator with power supply • Wire to wire dummy battery pack • Vehicle mount adaptor can be used with RAM® MOUNTS • Quick release vehicle mount kit • External fanfold media holder with expansion kit • External fanfold media holder with quick release vehicle mount kit |
| Printer Language: |
TSPL-EZC (EPL2, ZPL2, CPCL), or ESC-POS |
| Size (W x D x H) and Weight: |
160mm (W) x 191mm (H) x 79mm (D) 6.3" (W) x 7.52" (H) x 3.11" (D)
985g (2.17lbs) |
