ELEVATE YOUR LABELLING PROCESS WITH MB240T

Equipped with advanced features to meet diverse labelling needs efficiently

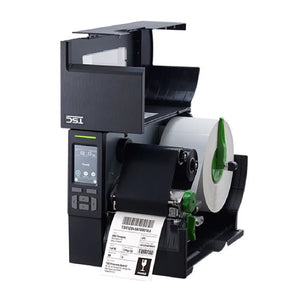

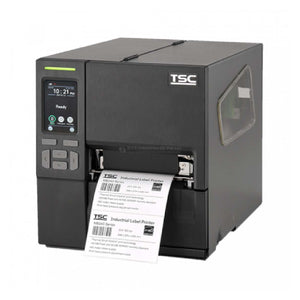

The TSC MB240T is a compact industrial thermal transfer label printer designed for high-performance printing in manufacturing, warehousing, logistics, and healthcare. It features a 4.3-inch color touchscreen for easy operation and a 203 dpi resolution for clear barcodes and text. With fast print speeds up to 10 inches per second, it ensures efficient label production. The rugged metal frame enhances durability, while USB, Serial, Ethernet, and optional Bluetooth/Wi-Fi provide versatile connectivity. Its space-saving design and easy media loading make it a reliable, cost-effective solution for mid-volume industrial labeling needs.



Features:

  • Small Footprint and Rugged Design
  • Flexible, Advanced and TPH Mechanism
  • 3.5” Intuitive Color and Touch Display
  • Versatile Availability of Connectivity
  • One Step to Quick Setup/ Update



Applications:

  • 🏭  Manufacturing
  • 📦  Warehouse / Logistics
  • 🛒  Retail



Specifications:

Printing Technology Thermal Transfer and Direct Thermal
Resolution 8 dots / mm (203 dpi)
Print Speed (Maximum) Up to 254mm (10'') / second
Print Width (Maximum) 108 mm (4.25'')
Media source:



  • Direct Thermal Label (don't require ribbons)
  • Thermal Transfer Label (require ribbon)
  • Made from materials like paper, polyester, polypropylene, and synthetic materials
Media Type: Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media Width: 20 ~ 120 mm (0.8” ~ 4.7”)
Media Thickness: 0.06 ~ 0.28 mm (2.36 ~ 11 mil)
Media Roll Capacity: 203.2 mm (8“) OD
Media Core Diameter:

25.4 mm ~ 76.2 mm (1” ~ 3”)
Label Length: 5 ~ 25,400 mm (0.2" ~ 1000")
Barcode:
  • 1D bar code

Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11,
China Post

  • 2D bar code

PDF-417, Maxicode, DataMatrix, QR code, Aztec
Winding Direction: Face Out
Ink Type: •Thermal Transfer (require ink ribbon)
•Direct Thermal (no ink ribbon required)
Ink Catridge: •Thermal Transfer (require ink ribbon)
•Direct Thermal (no ink ribbon required)
Barcode Font:

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Environment Conditions:

• Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety Regulations: FCC Class A, CE Class A, RCM Class A, cTUVus, CCC, BIS, TÜV, KC, BSMI, EAC, ENERGY STAR®
Main Interface: • RS-232
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host, for scanner or PC keyboard
• GPIO (dealer option)
• Internal Bluetooth 4.2 (dealer option)
• Slot-in 802.11 a/b/g/n wireless (dealer option)
Optional Interface:

• 802.11 a/b/g/n wireless module (for device with slot-in housing)
• KP-200 Plus keyboard display unit
Printer Language:

TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Size (W x D x H) and Weight:

248 mm (W) x 274 mm (H) x 436 mm (D)
9.76” (W) x 10.79” (H) x 17.17” (D)

9.2 kg (20.28 lbs)
