BUILT FOR DEMANDING WORKFLOWS

Equipped with TSC Sense Care and Remote Management Tools for Optimal Uptime

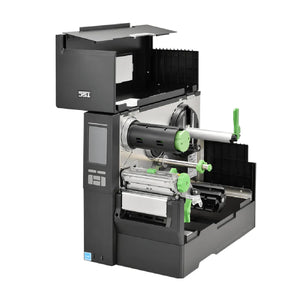

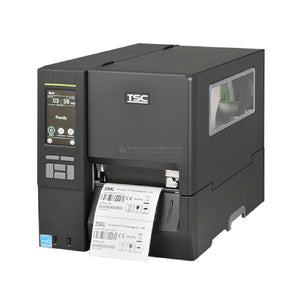

The TSC MH241T is a high-performance industrial thermal transfer label printer designed for demanding applications in manufacturing, logistics, healthcare, and retail. It features a 4.3-inch color touchscreen for easy operation and a 203 dpi resolution for sharp barcodes and text. With fast print speeds up to 14 inches per second, it ensures efficient, high-volume printing. Its rugged metal frame enhances durability, while USB, Serial, Ethernet, and optional Bluetooth/Wi-Fi provide flexible connectivity. Advanced TSPL-EZD firmware supports multiple printer languages, making integration seamless. The MH241T is ideal for businesses needing reliable, high-speed label printing.



Features:

  • High print resolution
  • High print speed
  • Multiple connectivity options
  • Various media compatibility
  • High ribbon capacity



Highlights:

  • ⚡  High speed printing
  • 🧠  Advanced Printhead Technology
  • 🏥  Flexible media handling
  • 🔧  Easy maintenance
  • 🌐  Comprehensive connectivity
  • 🛡️  Enhanced Durability
  • 🌱  Energy Efficient



Specifications:

Printing Technology Thermal Transfer and Direct Thermal
Resolution 8 dots / mm ( 203 dpi )
Print Speed (Maximum) Up to 356 mm ( 14 '' ) / second
Print Width (Maximum) 104 mm ( 4.09 '' )
Media source



  • Direct Thermal Paper
  • Thermal Transfer Paper
  • Coated / Glossy Paper Labels
  • Synthetic Labels ( Polyester, Polypropylene, Polyethylene )
  • Tag Stock ( Cardboard / Heavy Paper )
  • Specialty Media ( textile labels, wristbands, or pre-printed stock )
Media Type Continuous, die-cut, black mark ( Bottom side or top side black mark ), fan-fold, notch, perforated, tag, care label ( outside wound )
Media Width 20 ~ 114 mm ( 0.79 " ~ 4.5 " )
Media Thickness 0.06 ~ 0.28 mm ( 2.36 ~ 11 mil )
Media Roll Capacity 203.2 mm ( 8 ” ) O.D.
Media Core Diameter

3.81 mm / 76.2 mm ( 1.5 ”/ 3 ” )
Label Length 5 ~ 25,400 mm ( 0.2 " ~ 1000 " )
Barcode
  • 1D bar code

• Code 39
• Code 93
• Code128UCC
• Code128 subsets A.B.C
• Codabar
• Interleave 2 of 5
• EAN-8
• EAN-13
• EAN-128,
• UPC-A
• UPC-E,
• EAN and UPC 2(5) digits add-on
• MSI
• PLESSEY
• POSTNET
• RSS-Stacked
• GS1 DataBar
• Code 11
• China Post

  • 2D bar code

• PDF-417
• Maxicode
• DataMatrix
• QR code
• Aztec
Winding Direction Face In
Ink Type • Thermal Transfer ( require ink ribbon )
• Direct Thermal ( no ink ribbon required )
Ink Catridge • Thermal Transfer ( require ink ribbon )
• Direct Thermal ( no ink ribbon required )
Barcode Font

• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font
Environment Conditions

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety Regulations • FCC Class A
• CE Class A
• RCM Class A
• cTUVus
• CCC
• BIS
• TÜV
• KC
• BSMI
• EAC
• ENERGY STAR®
Main Interface
• RS-232
• USB 2.0 ( High speed mode )
• Internal Ethernet, 10 / 100 Mbps
• USB host *2 ( Front side ), for scanner or PC keyboard
• GPIO ( DB15F ) + Centronics ( factory option )
• Internal Bluetooth 5.0 MFi ( factory option )
• Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module ( dealer option )
Optional Interface

• Basic cutter tray
• Advanced cutter tray
• Universal cutter tray
• KP-200 Plus keyboard display unit
Printer Language

TSPL-EZD ( Compatible to EPL, ZPL, ZPL II, DPL )
Size (W x D x H) and Weight

276 mm ( W ) x 502 mm ( D ) x 326 mm ( H )
10.87 ” ( W ) x 19.76 ” ( D ) x 12.83 ” ( H )

15.70 kg ( 34.61 lbs )
