TE244

view

35 People are viewing this right now

Click To Enquire Add to Wishlist Add to Compare
Share
Description

AFFORDABLE PRINTING, EXCEPTIONAL VALUE

Delivering 203 dpi resolution at speeds up to  6 inches per second

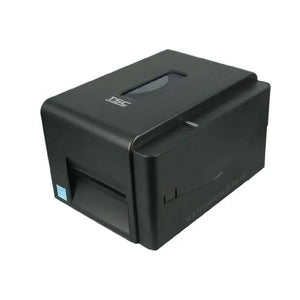

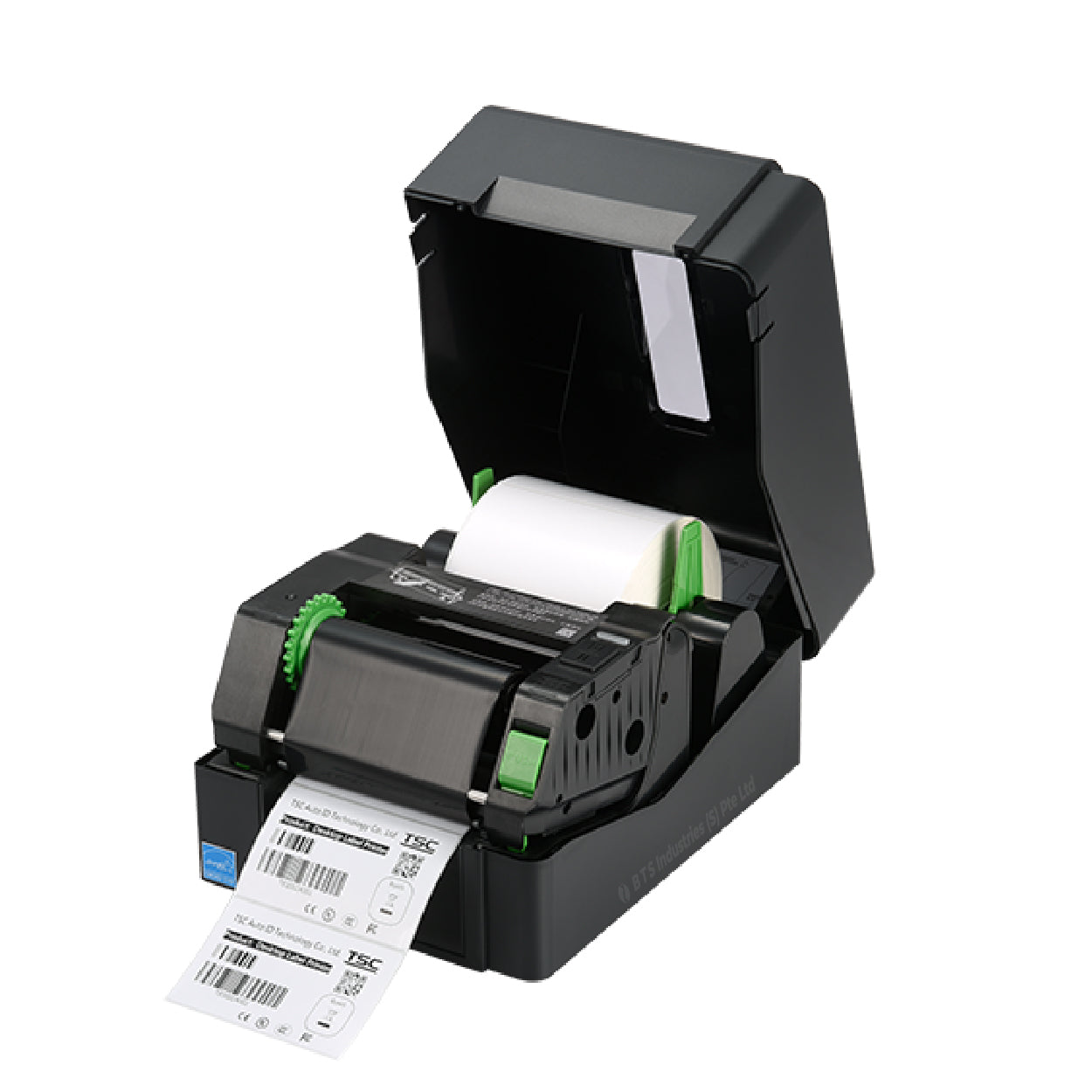

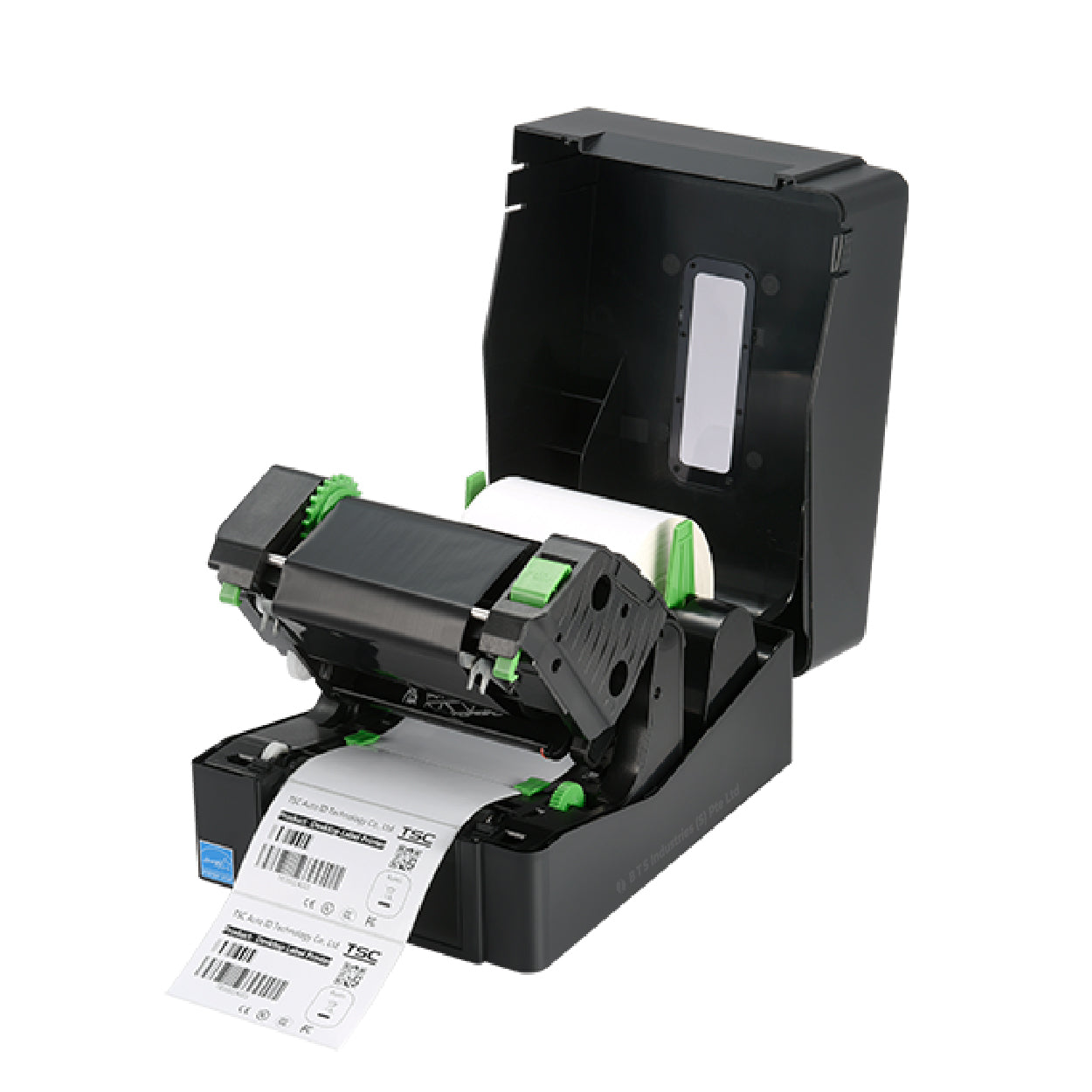

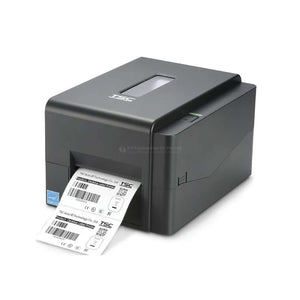

The TSC TE 244 Thermal Transfer Barcode Printer is a top-performing desktop-class barcode label printer designed for efficiency, durability, and versatility. This entry-level yet powerful printer boasts a fast printing speed of up to 6 inches per second, making it ideal for handling various labeling tasks with precision and ease. Featuring the largest memory capacity in its class and a robust dual-motor design, the TE244 ensures smooth operation for a wide range of applications.



Features:

  • Print mechanism for kiosk applications
  • 400 MHz 32-bit RISC processor with 16 MB SDRAM, 8 MB Flash memory
  • Internally scalable true type fonts
  • FreeWindows® drivers and label design and software (available via download)
  • ENERGY STAR® qualified



Applications:

  • 🏭  Manufacturing / Warehousing
  • 🏥  Healthcare
  • 📦  Parcel Post
  • 🏢  Small Office / Home Office
  • 🛍️  Retail Marking



Specifications:

Printing Technology Thermal Transfer and Direct Thermal
Resolution 8 dots / mm ( 203 dpi )
Print Speed (Maximum) Up to 152.4 mm ( 6 '' ) / second
Print Width (Maximum) 108 mm ( 4.25“ )
Media source



  • Paper
  • Polyester
  • Polypropylene
  • Vinyl
  • Other Synthetic Options
Media Type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media Width 20 ~ 112 mm ( 0.8 “ ~ 4.4 “ )
Media Thickness 0.06 ~ 0.19 mm ( 2.36 ~ 7.48 mil )
Media Roll Capacity 127 mm ( 5 " ) OD
Media Core Diameter

25.4 ~ 38 mm ( 1” ~ 1.5 ” )
Label Length 5 ~ 2794 mm ( 0.2 '' ~ 110 " )
Barcode
  • 1D bar code

• Code 128UCC
• Code 128 subsets A, B, C
• EAN128
• Interleaved 2 of 5
• Interleaved 2 of 5 with check digit
• Code 39
• Code 39 with check digit
• Code 93
• EAN13
• EAN8
• UPCA
• UPCE
• EAN and UPC 2 (5) digits add-on
• Codabar
• Postnet
• MSI
• MSI with check digit
• PLESSEY
• China post
• ITF14
• Code 11
• TELEPEN
• TELEPENN
• PLANET
• Code49
• Deutsche Post Identcode
• Deutsche Post Leitcode
• LOGMARS

  • 2D bar code

• GS1 DataBar
• GS1 DataMatrix
• Maxicode
• AZTEC
• PDF417
• QR Code
• Micro PDF 417
Winding Direction Face Out
Ink Type • Thermal Transfer (require ink ribbon)
• Direct Thermal (no ink ribbon required)
Ink Catridge • Thermal Transfer (require ink ribbon)
• Direct Thermal (no ink ribbon required)
Barcode Font

• 8 alpha-numeric bitmap fonts
• Monotype Image®
 true type font engine with one CG Triumvirate Bold Condensed scalable font
Environment Conditions

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety Regulations • FCC Class A
• CE Class A
• C-Tick Class A
• UL
• cUL
• TÜV/safety
• CCC
• EAC
• CoC
• BIS
• KC
• Energy Star®
Main Interface • USB 2.0
• Internal Bluetooth 4.0 (factory option)
Optional Interface

• Internal Bluetooth 4.0 (factory options)

• External roll mount, media OD. 214 mm ( 8.4 ” ) with 76.2 mm ( 3 ” ) core
Printer Language

TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Size (W x D x H) and Weight

204 mm ( W ) x 280 mm ( D ) x 164 mm ( H )

8.03“ ( W ) x 11.02“ ( D ) x 6.46“ ( H )

2.4 kg ( 5.29 lbs )
