BIG PERFORMANCE IN A COMPACT PACKAGE

Perfect for Retail, Healthcare, and Office Applications Where Space is Premium

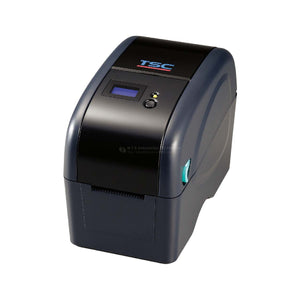

The TSC TTP-225 is a compact desktop label printer designed for efficient and reliable printing in retail, healthcare, and small business applications. It features thermal transfer and direct thermal printing, supporting up to 4-inch-wide labels with a 203 dpi resolution for clear barcodes and text. With USB and optional Ethernet connectivity, it ensures easy integration. The clamshell design allows for quick label loading, while its durable construction ensures long-term use. Offering fast print speeds and a space-saving footprint, the TTP-225 is an excellent choice for businesses needing high-quality, cost-effective label printing.



Features:

  • Small size – space saving design
  • Uses industry standard ribbons and media

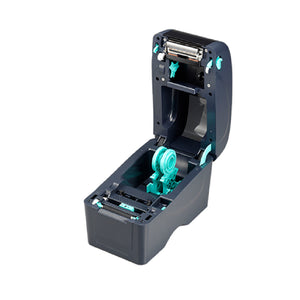

  • High quality double walled and clamshell design

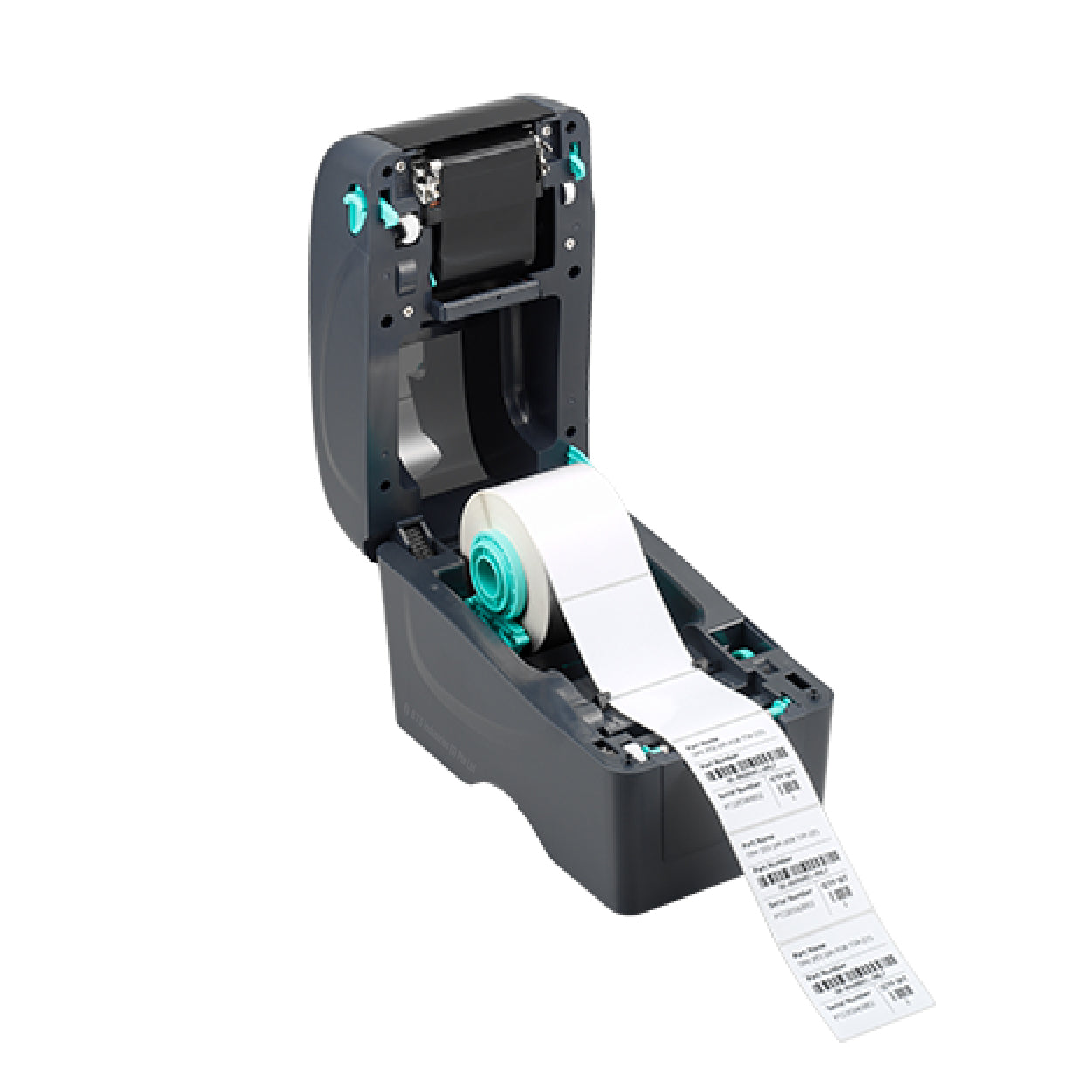

  • Easy media loading
  • Head open sensor
  • 8 MB SDRAM, 4 MB Flash memory
  • Serial and USB 2.0 connectivity, standard, Ethernet optional
  • Options include LCD display, keyboard and ;cutter, peel, and Bluetooth module
  • Standard industry emulations right and out of the box including Eltron®; and Zebra® language support

Applications:

  • 🏷️  Retail Point-of-Sale
  • 🚚  Oil Change / Auto Service Labeling
  • 🏥  Pharmacy Prescription Labeling
  • 🛒  Healthcare Patient Tracking
  • 📦  Shelf Labeling
  • 🗃️  Product Marking / Inventory / Asset Management
  • 📬  Small Office / Home Office Mailing
  • 🗂️  File-Folder Labeling
  • 🧣  Wristbands



Specifications:

Printing Technology Thermal Transfer and Direct Thermal
Resolution 8 dots / mm ( 203 dpi )
Print Speed (Maximum) Up to 127 mm ( 5 '' ) / second
Print Width (Maximum) 54 mm ( 2.13 '' )
Media source



  • Paper
  • Polypropylene
  • Polyster
  • Other synthetic labels
Media Type Continuous, die-cut, blackmark, fan-fold, notched, wristband (outside wound)
Media Width 15 ~ 60 mm ( 0.59 '' ~ 2.36 '' )
Media Thickness 0.06 ~ 0.19 mm ( 2.36 ~ 7.48 mil )
Media Roll Capacity Max. 127 mm ( OD )
Media Core Diameter

25.4 ~ 38 mm ( 1 '' ~ 1.5 '' )
Label Length 6 ~ 2286 mm ( 0.24 '' ~ 90 '' )
Barcode
  • 1D bar code

• Code 39
• Code 93
• Code 128UCC
• Code 128 subset A, B, C
• Codabar
• Interleave 2 of 5
• EAN-8
• EAN-13
• EAN-128
• UPC-A
• UPC-E
• EAN and UPC 2 (5) digits add-on
• MSI
• PLESSEY
• POSTNET
• China Post
• GS1 Data Bar
• Code 11

  • 2D bar code

• PDF-417
• Maxicode
• DataMatrix
• QR Code
• Aztec
Winding Direction Face Out
Ink Type • Thermal Transfer (require ink ribbon)
• Direct Thermal (no ink ribbon required)
Ink Catridge • Thermal Transfer (require ink ribbon)
• Direct Thermal (no ink ribbon required)
Barcode Font

• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Environment Conditions

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety Regulations • FCC Class B
• CE Class B
• C-Tick Class B
• UL
• CUL
• TÜV/Safety, CCC, ENERGY STAR®
Main Interface
  • Main Interface:
  • USB 2.0
  • RS-232
  • USB host, for scanner or PC keyboard ( factory option )
  • Internal Ethernet, 10/100 Mbps (dealer option)
  • Bluetooth (user option)
Optional Interface
  • Bluetooth module ( serial interface )
  • KP-200 Plus keyboard display unit
  • KU-007 Plus programmable smart keyboard
Printer Language

TSPL-EZ™ (Compatible to EPL, ZPL, ZPL II)
Size (W x D x H) and Weight

140 mm ( W ) x 241 mm ( D ) x 177 mm ( H )
5.51“ ( W ) x 9.49 “ ( D ) x 6.97 “ ( H )

2.45 kg ( 5.4 lbs )
