Description

SMART LABELLING FOR EVERYDAY DEMANDS

Supports large 300-meter ribbons and 8 inch OD Media Rolls for Maximum Effciency

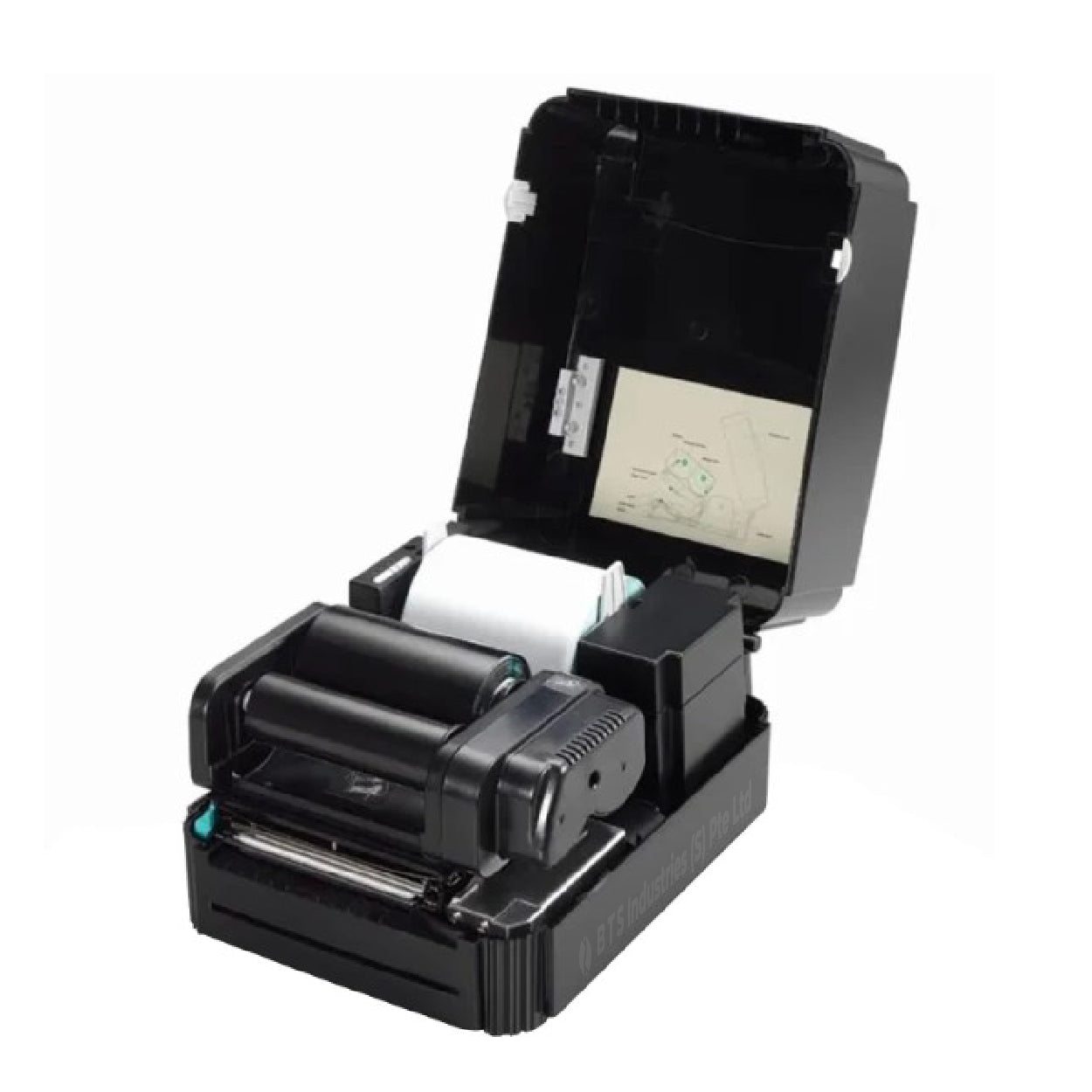

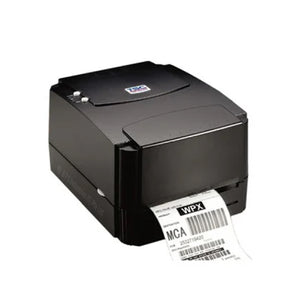

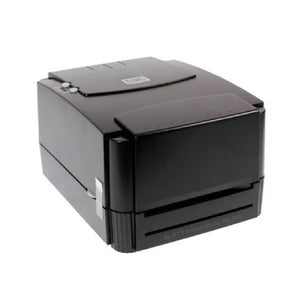

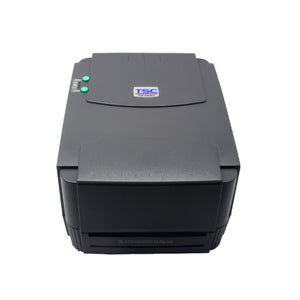

The TSC TTP-244 Pro is a compact and cost-effective thermal transfer label printer designed for small to medium-volume printing applications. It offers 203 dpi resolution with a print speed of up to 5 inches per second and supports label widths up to 4.25 inches. With its dual-motor design, it efficiently handles longer print runs without overheating. The TTP-244 Pro features a large ribbon capacity (up to 300m), reducing the need for frequent replacements. It supports USB and serial connectivity, ensuring seamless integration into various work environments. Ideal for shipping, retail, healthcare, and inventory labeling, this printer delivers reliable performance at an affordable price.



Features:

  • 200 MHz 32-bit RISC processor with 8 MB SDRAM, 4 MB Flash memory
  • Internally scalable true type fonts
  • TSPL-EZ™ firmware emulates Eltron® and Zebra® languages out of the box
  • Dual-motor gear driven design
  • 300 meter (984') ribbon supply on a 25.4mm (1'') core (coated side out)
  • 110 mm (4.3'') OD internal media supply, optional external roll mount supports 214 mm (8.4'') OD labels rolls on 76.2 mm (3'') core
  • 5 inches per second print speed
  • USB2.0 and RS-232 interfaces standard
  • Free bundled labeling software and Windows drivers
  • Features an industry best 2 years limited warranty



Applications:

  • 🚚  Shipping / Receiving
  • 🏷️  Compliance Labelling
  • 💎  Asset Tracking
  • 📋  Inventory Control
  • 🗂️  Document Management
  • 🗄️  Shelf Labelling / Product Marking
  • 🧫 Specimen Labelling / Patient Tracking



Specifications:

Printing Technology Thermal Transfer and Direct Thermal
Resolution 8 dots / mm (203 dpi)
Print Speed (Maximum) Up to 127mm (5'') / second
Print Width (Maximum) 108 mm (4.25'')
Media source:



  • Direct Thermal Paper
  • Thermal Transfer Paper/ Labels (coated, plain paper)
  • Gloss / semi-gloss paper / coated paper labels
  • Tag stock / non-adhesive paper / cardstock
  • Fan-fold stock
  • Black-mark / reflective sensors
Media Type: Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media Width: Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media Thickness: 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media Roll Capacity: 110 mm (4.33'') OD
Media Core Diameter:

25.4 ~ 76.2mm (1'' ~ 3'')
Label Length: 10 ~ 2286mm (0.39'' ~ 90'')
Barcode:
  • 1D bar code

Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11

  • 2D bar code

PDF-417 , Maxicode, DataMatrix, QR Code, Aztec
Winding Direction: Face Out
Ink Type: •Thermal Transfer (require ink ribbon)
•Direct Thermal (no ink ribbon required)
Ink Catridge: •Thermal Transfer (require ink ribbon)
•Direct Thermal (no ink ribbon required)
Barcode Font:

• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Environment Conditions:

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10~ 90% non-condensing
Environment Concerns: FCC Class A, CE Class A, C-Tick Class A, TÜV/Safety, CC
Main Interface: • USB 2.0
• RS-232
• Centronics (factory option)
• Bluethooth (user option)
Optional Interface:

• Bluetooth module (serial interface)
• External roll mount, media OD. 214 mm (8.4”) on a 1” or 3” core
• SD Flash memory card reader
• 3” core label spindle
• KP-200 Plus keyboard display unit
• KU-007 Plus programmable smart keyboard
Printer Language: TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Size (W x D x H) and Weight:

230mm (W) x 156mm (H) x 288mm (D)

9.13" (W) x 6.14" (H) x 11.34" (D)



2.5kg (5.51 lbs)
