TTP-247

view

52 People are viewing this right now

Click To Enquire Add to Wishlist Add to Compare
Share
Description

UNMATCHED SPEED, UNBEATABLE VALUE

Print up to 7 inches per second with sharp 203 dpi resolution

The TSC TTP-247 is a high-performance thermal transfer label printer designed for fast, reliable printing in industries like retail, healthcare, and logistics. It offers 203 dpi resolution with a 4.25 inches print width and fast print speeds up to 7 inches per second. Featuring USB, Serial, and Parallel connectivity, with an optional Ethernet upgrade, it ensures seamless integration. Its durable dual-motor design supports high-volume printing, while the clamshell design allows easy media loading. The TTP-247 is ideal for businesses needing efficient, cost-effective, and long-lasting label printing.



Features:

  • Up too 177.8 mm ( 7 '' ) per sec. print speed
  • 4 MB Flash memory and 8 MB SDRAM memory
  • SD Flash memory expansion up to 4 GB

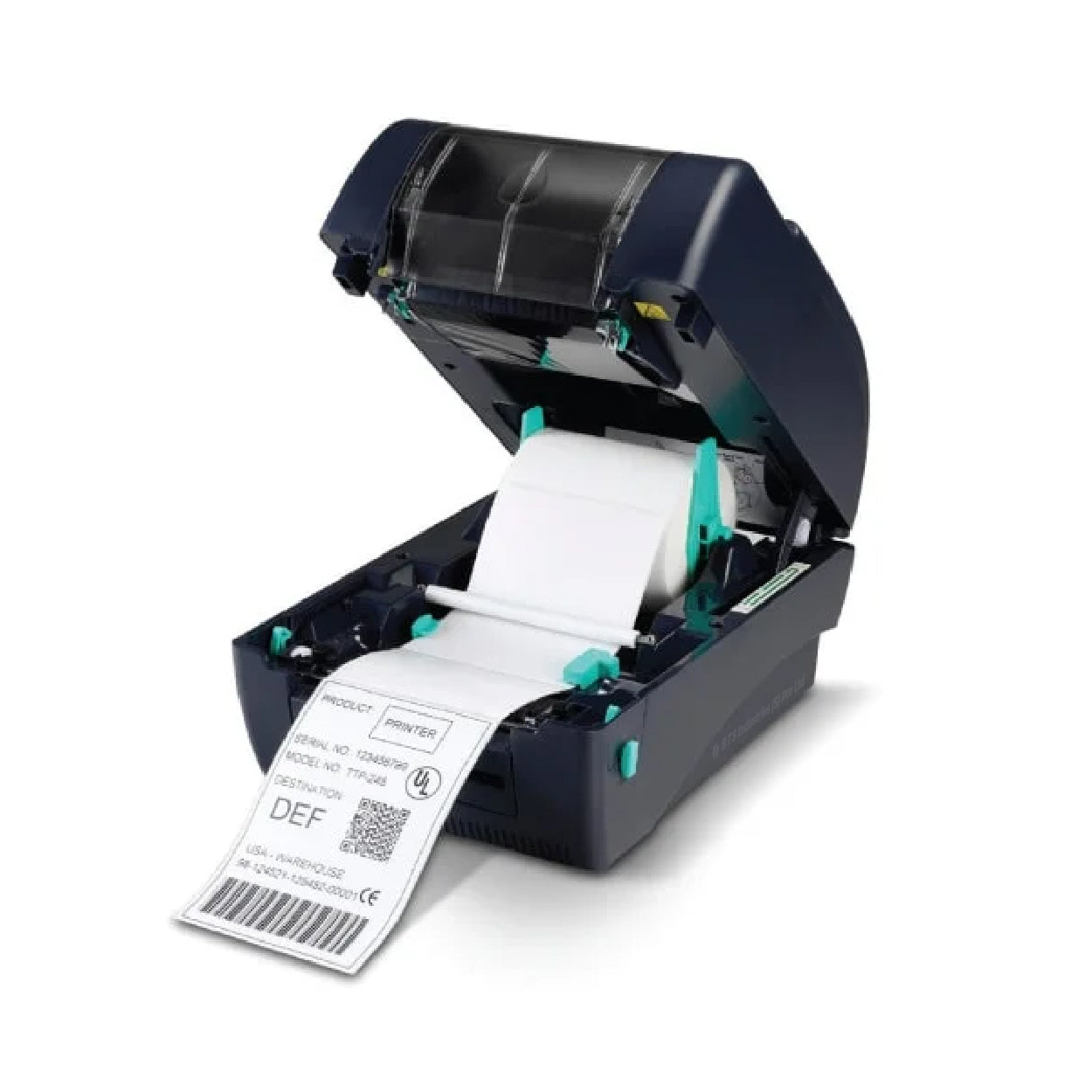

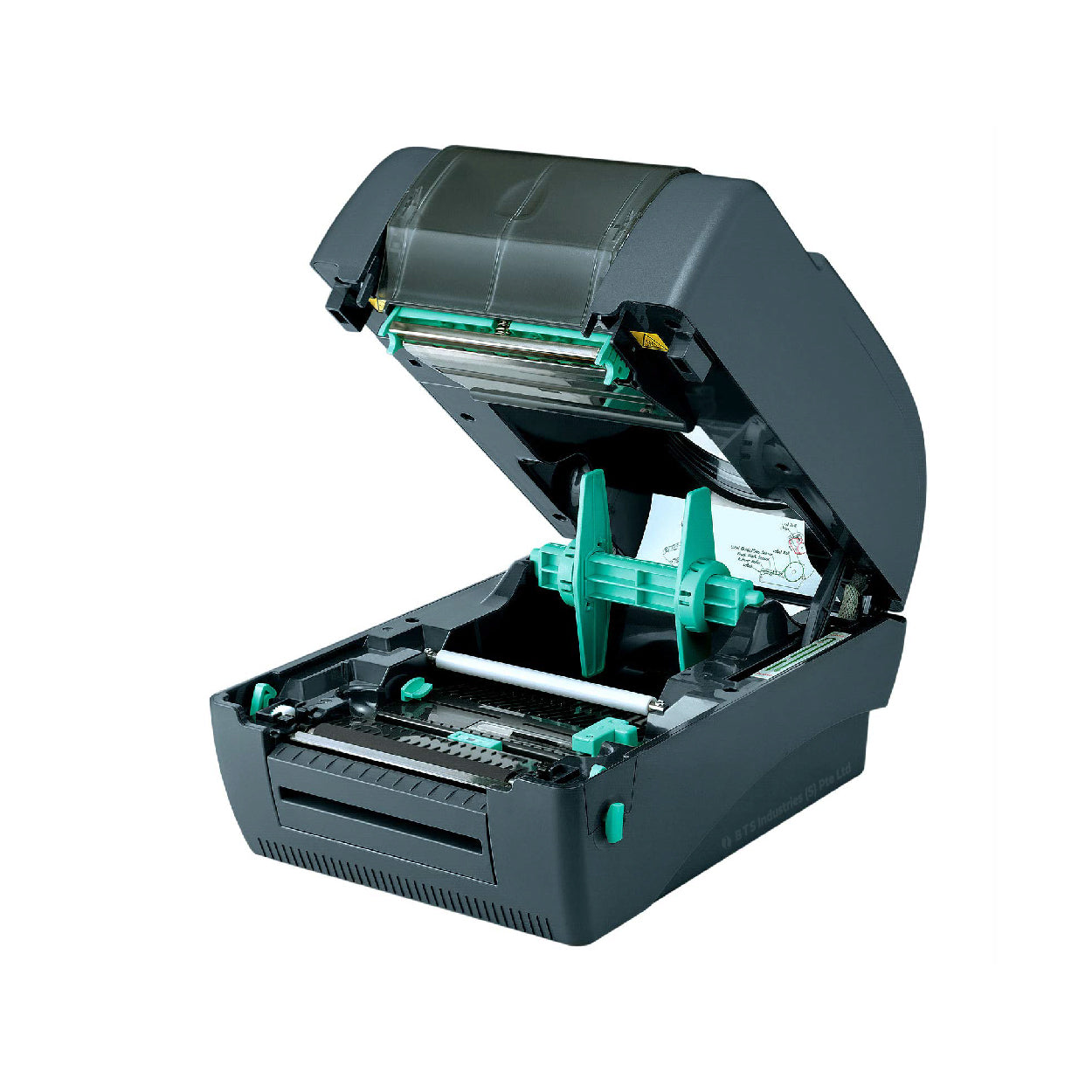

  • User-friendly clamshell design
  • Label gap sensor and full range adjustable black mark sensor
  • Parallel, serial and USB 2.0 interfaces standard
  • TSPEL-EZ firmware for plug-n-play ease
  • Optional peel-off module, cutter module, Bluetooth module, stand-alone keyboard and scanner

Applications:

  • 🏷️  Shopping / Logistics
  • 🚚  Healthcare
  • 🏥  Manufacturing
  • 🛒  Product / Item Labels
  • 📦  Retail



Specifications:

Printing Technology Thermal Transfer and Direct Thermal
Resolution 8 dots / mm ( 203 dpi )
Print Speed (Maximum) Up to 178 mm ( 7 '' ) / second
Print Width (Maximum) 108 mm ( 4.25 '' )
Media source



  • Direct Thermal
  • Thermal Transfer
  • Paper / Label types
  • Synthetic Materials (e.g. polypropylene, vinyl)
Media Type Continuous, die-cut, blackmark, fan-fold, notched (outside wound)
Media Width 20 ~ 112 mm ( 0.78 '' ~ 4.4 '' )
Media Thickness 0.06 ~ 0.19 mm ( 2.36 ~ 7.48 mil )
Media Roll Capacity Max. 127 mm (OD)
Media Core Diameter

25.4 ~ 76.2 mm ( 1 '' ~ 3 '' )
Label Length 10 ~ 2286 mm ( 0.39 '' ~ 90 '' )
Barcode
  • 1D bar code

• Code 39
• Code 93
• Code 128UCC
• Code 128 subset A, B, C
• Codabar
• Interleave 2 of 5
• EAN-8
• EAN-13
• EAN-128
• UPC-A
• UPC-E
• EAN
• UPC 2 (5) digits add-on
• MSI
• PLESSEY
• POSTNET
• RSS-Stacked
• GS1 DataBar
• Code 11

  • 2D bar code

• PDF-417
• Maxicode
• DataMatrix
• QR Code
• Aztec
Winding Direction Face Out
Ink Type • Thermal Transfer (require ink ribbon)
• Direct Thermal (no ink ribbon required)
Ink Catridge • Thermal Transfer (require ink ribbon)
• Direct Thermal (no ink ribbon required)
Barcode Font

• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Environment Conditions

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Environmental Concerns Comply with RoHS, WEEE
Main Interface
  • Main Interface:
  • USB 2.0
  • RS-232
  • Centronics
  • Internal Ethernet, 10/100 Mbps (factory option)
  • Bluetooth (user option)
Optional Interface
  • Bluetooth module (serial interface)
  • External roll mount, media OD. 214 mm (8.4”) on a 1” or 3” core
  • 3” core label spindle
  • KP-200 Plus keyboard display unit
  • KU-007 Plus programmable smart keyboard
Printer Language

TSPL-EZ™
Size (W x D x H) and Weight

213 mm (W) x 314 mm (D) x 188 mm (H)

8.39 " (W) X 12.36 " (D) x 7.40 " (H)

2.8kg (6.17 lbs)
