HIGH SPEED PRINTING, MAXIMUM EFFICIENCY

Advanced Technology for Seamless, High-Speed Label Production

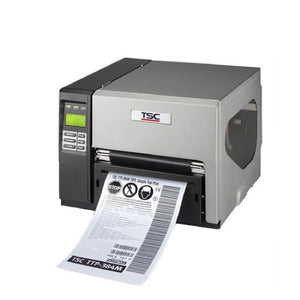

The TSC TTP 384MT is a robust industrial thermal transfer and direct thermal printer designed for high-volume labeling applications. Built for reliability and precision, it delivers fast printing speeds with sharp barcode and text quality, supporting media widths up to 4.3 inches. Its rugged metal construction ensures durability in demanding environments, while versatile connectivity options—including USB, Ethernet, and optional wireless modules—enable seamless integration into production and logistics workflows. Ideal for manufacturing, warehousing, and distribution, the TTP 384MT combines efficiency, accuracy, and long-term performance for industrial labeling needs.



Features:

  • Enhanced High-Speed Performance, Color Touch Display
  • High-Speed Performance, More memory
  • A Colorful Choice
  • Loaded with Standard Features
  • Powerful TSPL-EZ Printer Programming Language



Applications:

  • 🚚  Compliance Labeling for Shipping & Receiving
  • 🖼️  Brand Marketing Featuring Graphics, Logos & Texts
  • 📦  Pallet Labeling
  • 📋  Inventory Control Labeling
  • ⚠️  Warning Labels
  • 🛢️  Drum Labeling
  • 🪧  Custom Signage



Specifications:

Printing Technology Thermal Transfer + Direct Thermal
Resolution 12 dots/mm (300DPI)
Print Speed (Maximum) 102mm (4'') / second
Print Width (Maximum) 219.5mm (8.64'')
Media source:
  • Direct Thermal Paper
  • Thermal Transfer Paper
  • Wide Format Labels & Signage Media
  • Synthetic Labels (Polyester, Polypropylene, Polyethylene, Vinyl)
  • Tag Stock (Cardboard / Heavy Paper)
  • Specialty Media (Includes textile care labels, wristbands, durable asset tags, security labels, and oversized labels for compliance.)
Media Type: Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)
Media Width: 101.6 ~ 241.3mm (4'' ~ 9.5'')
Media Thickness: 0.06 ~ 0.254 mm (2.36 ~ 10 mil)
Media Roll Capacity: 208.3 mm (8.2'') OD
Media Core Diameter: 76.2 mm (3“)
Label Length: 25.4 ~ 5080mm (1'' ~ 200'')
Barcode:
  • 1D bar code

Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked,
GS1 DataBar, Code 11

  • 2D bar code

PDF-417, Maxicode, DataMatrix, QR code, Aztec
Winding Direction: Face Out
Ink Type: •Thermal Transfer (require ink ribbon)
•Direct Thermal (no ink ribbon required)
Ink Catridge: •Thermal Transfer (require ink ribbon)
•Direct Thermal (no ink ribbon required)
Barcode Font:

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Environment Conditions: Operation: 5 ~ 40°C, 20 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety Regulation: FCC Class A, CE Class A, UL, CUL, TÜV/Safety
Main Interface: • RS-232
• Centronics
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host, for scanner or PC keyboard
• GPIO (factory option)
• Bluetooth (user option)
Optional Interface: • Guillotine cutter (full cut)
• Heavy duty cutter (full cut)
• Bluetooth module (serial interface)
• KP-200 Plus keyboard display unit
• KU-007 Plus programmable smart keyboard
Printer Language:
  • TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Size (W x D x H) and Weight:

440 mm (W) x 336 mm (H) x 514 mm (D)
17.32“ (W) x 13.23“ (H) x 20.24“ (D)

23.7 kg (N.W)
