Description

ELEVATE YOUR LABELLING WITH HIGH RESOLUTION OUTPUT

Achieve 300 dpi resolution at speeds up to 6 inches per second

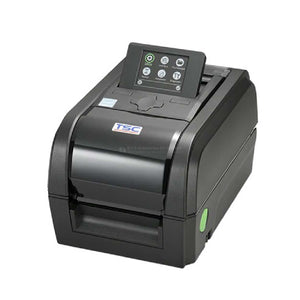

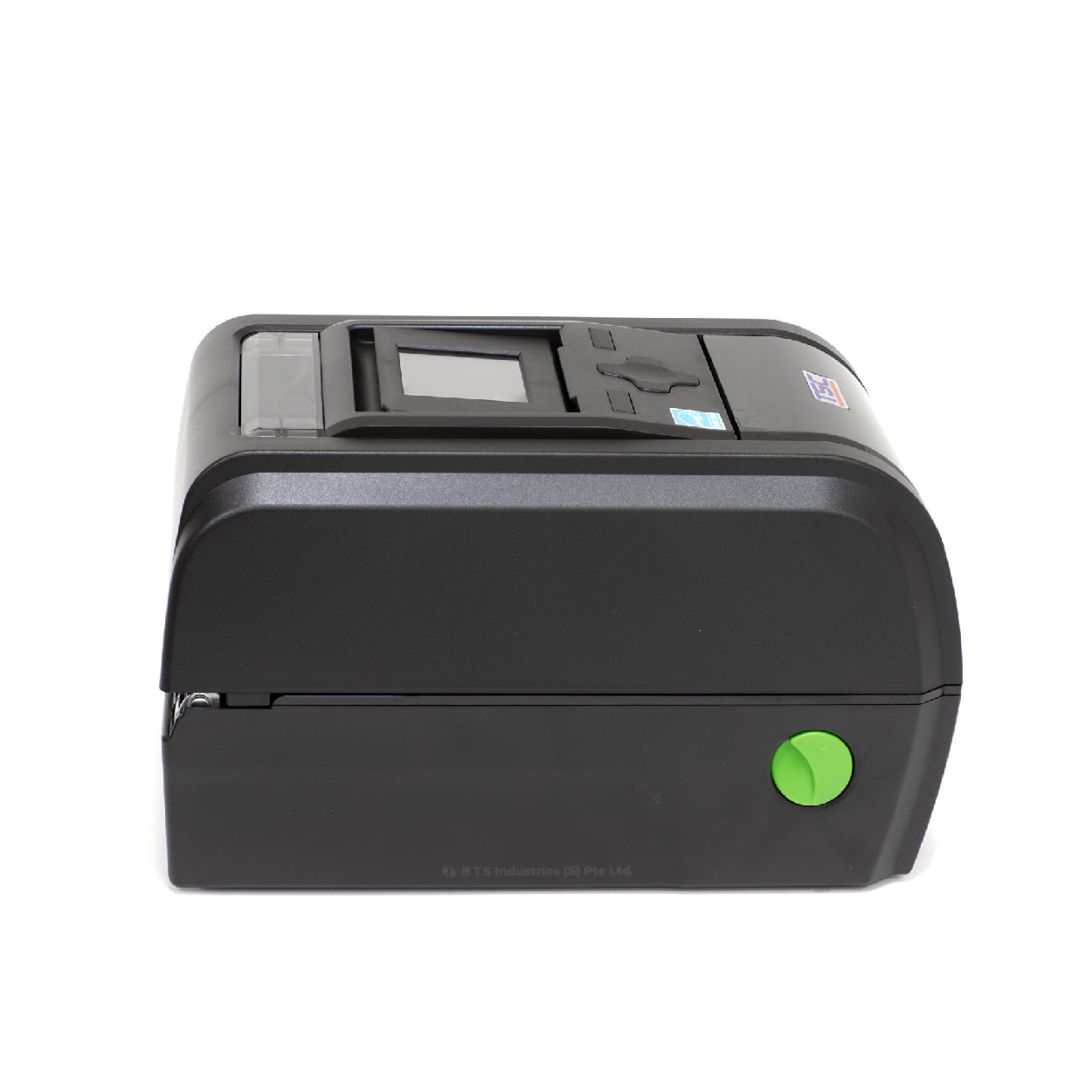

The TSC TX300 is a 300 dpi thermal transfer label printer designed for high-precision printing in industries like healthcare, retail, and manufacturing. It supports 4-inch-wide labels with sharp, detailed barcodes and text, making it ideal for small or high-density labels. With fast print speeds up to 6 inches per second, it ensures efficiency. The rugged design features USB, Ethernet, Serial, and optional Wi-Fi/Bluetooth connectivity for seamless integration. Its clamshell design allows easy media loading, while advanced sensors enhance print accuracy. The TX300 is perfect for businesses needing durable, high-resolution label printing.



Features:

  • Up to 203 mm ( 8 ” ) per sec. print speed
  • 128 MB Flash memory and 128 MB and SDRAM memory
  • microSD Flash memory expansion up to 32 GB

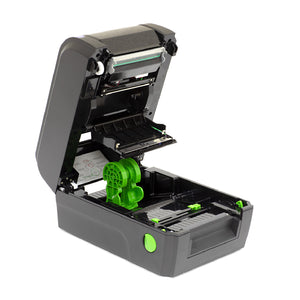

  • User-friendly clamshell design
  • Serial, internal Ethernet USB 2.0 and USB host interfaces standard
  • Label capacity up to 127 mm (5 ”) OD
  • Ribbon capacity up to 300 m (984’)
  • TSPL-EZ™ firmware for plug-n-play ease
  • ENERGY STAR® qualified



Applications:

  • 💼 Business / Office
  • 🔎 Product Marking
  • 🏷️ Compliance Labelling
  • 📍 Asset Tracking
  • 🗂️ Document Management
  • 🗃️ Shelf-Labelling
  • 🚚 Shipping / Receiving
  • 🧫 Specimen Labelling
  • 📋 Inventory Control
  • 🩺 Patient Tracking



Specifications:

Printing Technology Thermal Transfer and Direct Thermal
Resolution 12 dots / mm ( 300 dpi )
Print Speed (Maximum) Up to 152 mm ( 6 '' ) / second
Print Width (Maximum) 106 mm ( 4.17 '' )
Media source



  • Thermal Sensitive Labels (Permanent or removable adhesive labels)
  • Non Thermal Paper / Coated Paper / Synthetic Materials + Ribbon (Wax / Wax Resin / Resin)
  • Includes coated papers (semi gloss, gloss, matte), vellum and specialty papers / synthetics
Media Type Continuous, die-cut, black mark, fan-fold, notch (outside wound)
Media Width 19 ~ 112 mm ( 0.75 ” ~ 4.4 ” )
Media Thickness 0.055 ~ 0.254 mm ( 2.17 ~ 10 mil )
Media Roll Capacity 3.75 kg ( 8.27 lbs )
Media Core Diameter

25.4 ~ 38.1 mm ( 1 '' ~ 1.5 '' )
Label Length 3 ~ 11430 mm ( 0.1 '' ~ 450 '' )
Barcode
  • 1D bar code

• Code 39
• Code 93
• Code128UCC
• Code128 subsets A.B.C
• Codabar
• Interleaved 2 of 5
• EAN 8
• EAN 13,
• EAN 128
• UPC-A
• UPC-E
• EAN and UPC 2(5) digits add-on
• MSI
• PLESSEY
• POSTNET
• China post
• ITF14
• EAN14
• Code 11
• TELEPEN
• TELEPENN
• PLANET
• Code 49
• Deutsche Post Identcode
• Deutsche Post Leitcode
• LOGMARS

  • 2D bar code

• TLC39
• CODABLOCK F mode
• PDF-417
• Maxicode
• DataMatrix
• QR code
• Aztec
• Micro PDF 417
• GS1 DataBar (RSS barcode)
Winding Direction Face Out
Ink Type • Thermal Transfer (require ink ribbon)
• Direct Thermal (no ink ribbon required)
Ink Catridge • Thermal Transfer (require ink ribbon)
• Direct Thermal (no ink ribbon required)
Barcode Font

• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Environment Conditions

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety Regulations • FCC Class B
• CE Class B
• RCM
• UL
• cUL
• TÜV/Safety
• CCC
• BIS
• EAC
• ENERGY STAR®

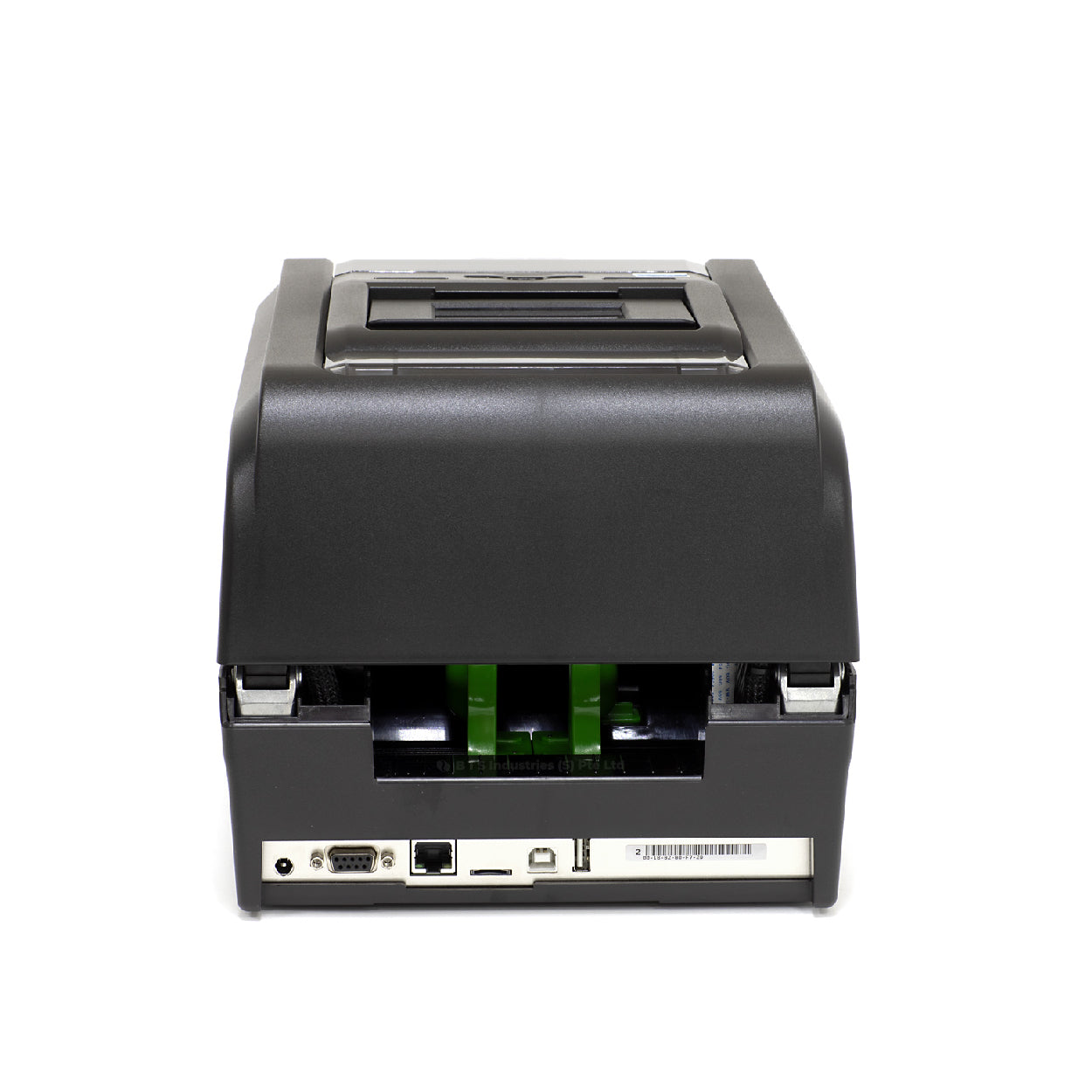

Main Interface • USB 2.0
• RS-232
• Internal Ethernet, 10/100 Mbps
• USB Host
• Centronics (factory option)
• External Bluetooth (user option)
• Slot-in 802.11 a/b/g/n wireless (dealer option)
Optional Interface

• Bluetooth module (serial interface)
• External label roll mount
• KP-200 Plus keyboard display unit
• KU-007 Plus programmable smart keyboard
Printer Language

TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Size (W x D x H) and Weight

226 mm ( W ) x 332 mm ( D ) x 198 mm ( H )
8.90 “ ( W ) x 13.07 “ ( D ) x 7.80 “ ( H )

3.75 kg ( 8.27 lbs )
