ZD220T
18 People are viewing this right now
Quality barcode, Smart budget
Print crisp 203 dpi labels, ribbons up to 74 m, and leverage USB connectivity with the robust build expected of a Zebra printer
The Zebra ZD220T is a compact and affordable thermal transfer label printer designed for low- to medium-volume printing applications. It features a 203 dpi resolution, supporting both thermal transfer and direct thermal printing. With fast print speeds of up to 6 inches per second, it ensures efficient operation. The ZD220T offers USB connectivity for easy integration into existing systems. It is ideal for industries like retail, healthcare, and logistics, offering reliable, high-quality labeling at a cost-effective price point. Its compact design makes it suitable for environments where space is limited.
Features:
- ZPL and EPL programming languages
- Single LED status indicator
- Single button for feed/pause
- USB connectivity

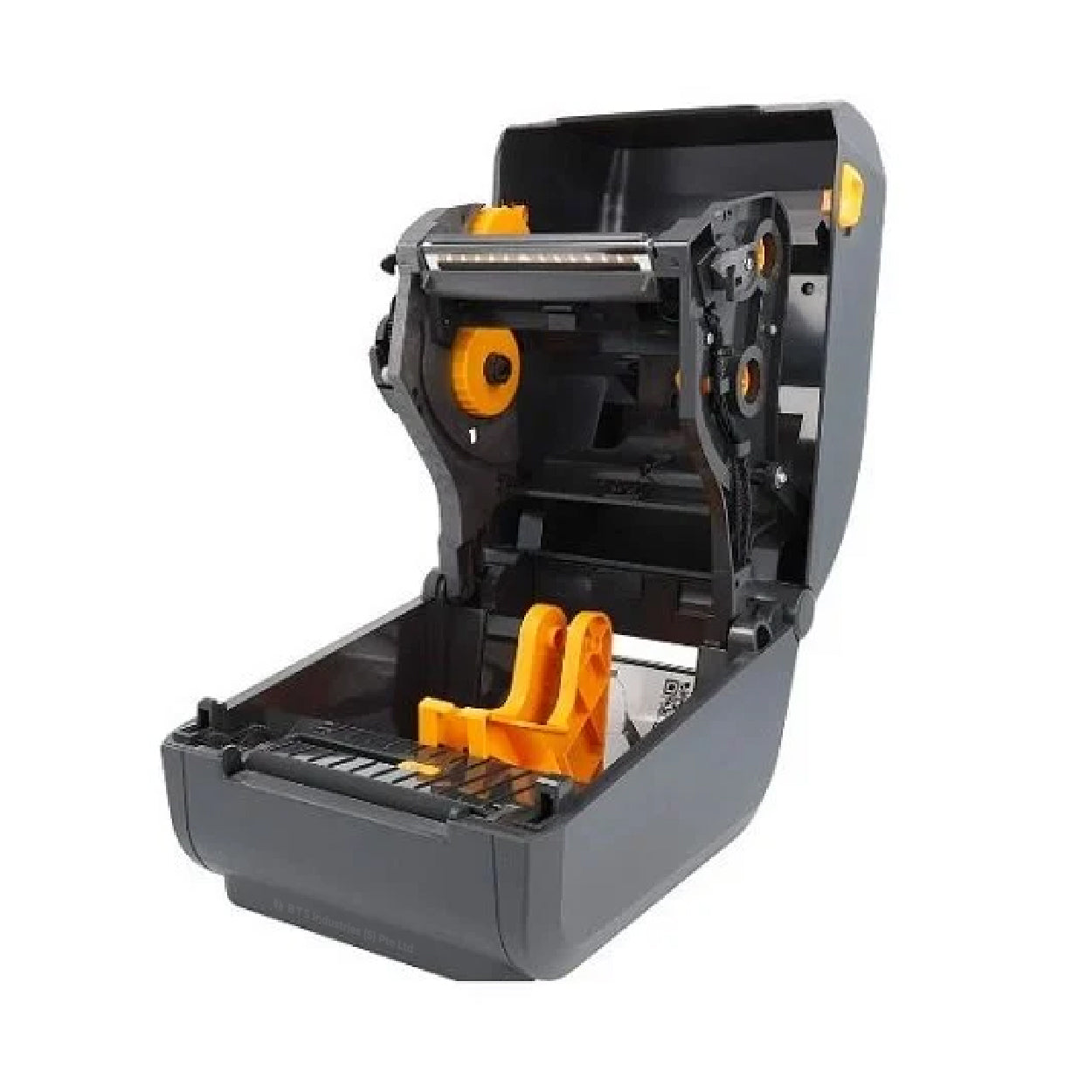

- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR qualified
- ZebraDesigner Essentials – easy label design tool free at www.zebra.com /
zebradesigner
Applications:
- 🏭 Manufacturing / Light Industry
- 🚚 Logistics / Transportation
- 🛍 Retail / POS
- 🧪 Healthcare / Other environments
Specifications:
| Printing Technology | Thermal Transfer or Direct Thermal |
| Resolution | 203 dpi / 8 dots per mm |
| Print Speed (Maximum) | 4 in. / 102 mm per second |
| Print Width (Maximum) | 4.09 inches ( 104 mm ) |
| Maximum Label Length | 39.0 in. / 991 mm |
| Media type | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Media Width (min to max) |
1.00 in. / 25.4 mm to 4.4 in. / 112 mm |
| Media Thickness (min to max) | 0.003 in. ( 0.08 mm ) min.; 0.0075 in. ( 0.1905 mm ) max. ( tear-off mode only ) |
| Media Roll Size (max), Core Size |
5.00 in. / 127 mm outer diameter Core inner diameter: 0.5 in. ( 12.7 mm ) and 1.0 in. ( 25.4 mm ) standard, 1.5 in. ( 38.1 mm ) using optional adapters |
| Ribbon Outside Diameter |
1.34 in. / 34 mm ( 74 m ) |
| Maximum Ribbon Length | 244 ft. ( 74 m ) |
| Ribbon Ratio |
1:1 ribbon to media ( 74 m ) |
| Ribbon Width | 1.33 in. / 33.8 mm - 4.3 in. / 109.2 mm |
| Ribbon Core I.D. | 74 meter ribbon 0.5 in. / 12.7 mm |
| Media Sensor |
Movable black mark sensor, limited range from center to left side • Fixed off-center gap sensor |
| Main Interface |
USB connectivity • Single button feed / pause |
| Optional Interface |
|
| Case | Zebra's OpenACCESS Clamshell Design |
| Control panel | 1 buttons, single LED indicator with feed/pause button |
| RAM (standard Memory) |
128 MB Flash; 128 MB SDRAM |
| Drivers and software | Free-of-charge ZebraDesigner Essentials, including set-up using Zebra Setup Utilities |
| Emulations (Languages) |
ZPL II; EPL 2; XML |
| Size (W x D x H) and Weight |
Thermal Transfer: |
