Zebra ZD411T

Sale price SGD 0.00
view

6 People are viewing this right now

Add to Wishlist Add to Compare

Notify me when available

Register to receive a notification when this item comes back in stock.

Ask a question
Share
Discover our machines

Elevate your expectations with advanced, compact printers, built for enduring performance

Simple to Setup, Use and Manage Today

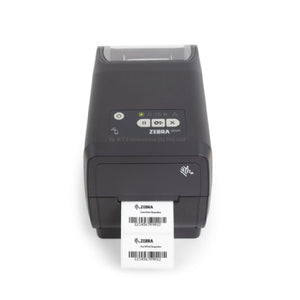

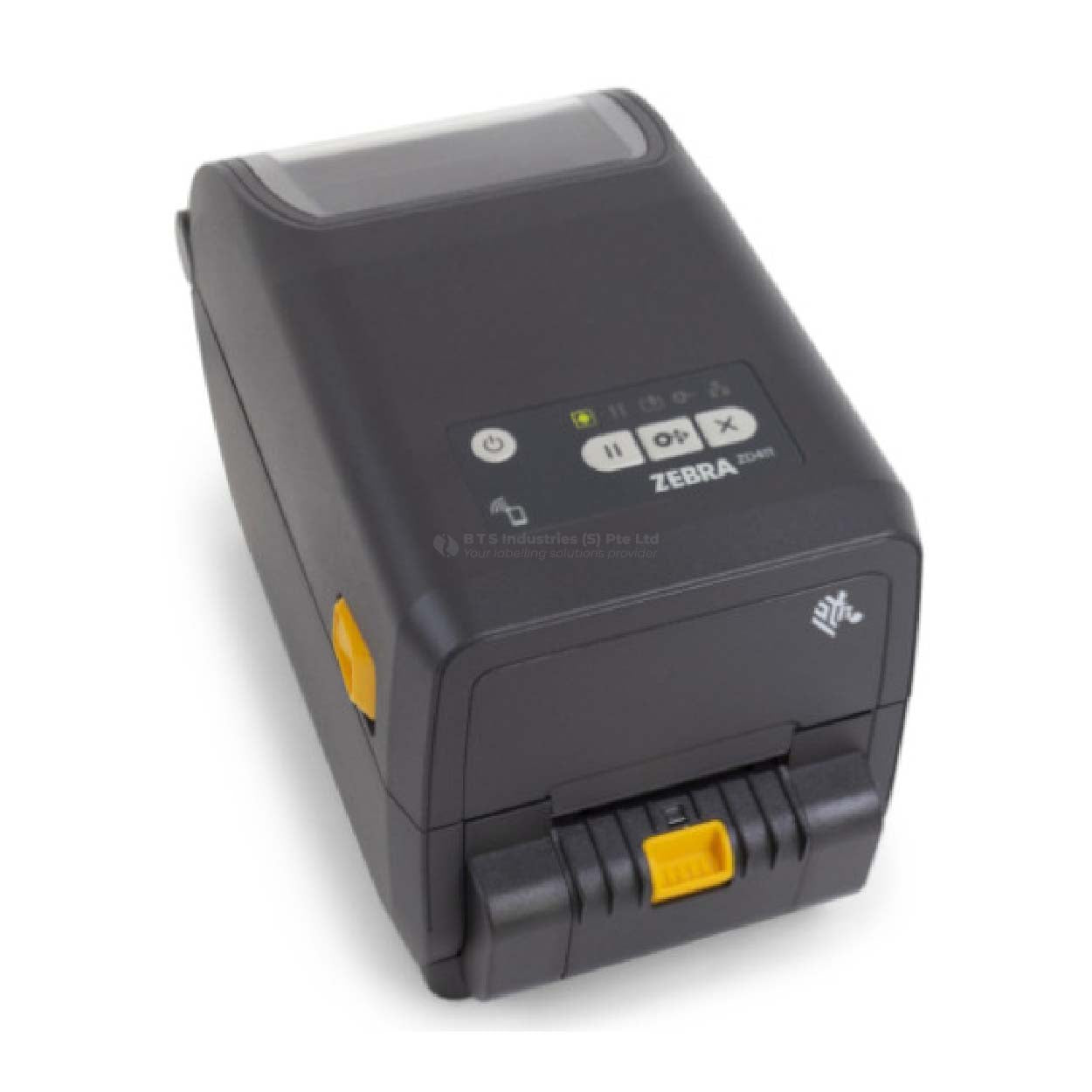

The Zebra ZD411T is a compact yet powerful 2-inch thermal-transfer desktop label printer designed for businesses that need dependable, high-quality labels in tight workspaces. Built with Zebra’s latest print technology, it delivers crisp, durable prints at fast speeds while supporting both ZPL and EPL languages for seamless integration with existing systems. Its simple five-icon interface, easy-open design and upgraded memory make daily operation effortless, while optional Wi-Fi and Bluetooth give you the flexibility to print anywhere without cables. From product labels to asset tags and compliance markings, the ZD411T provides reliable performance, modern connectivity and long-lasting labeling capability in a small, efficient footprint.



Features:

  • Choice of Direct Thermal (ZD421) or Thermal Transfer (ZD421T) models
  • Print resolution: 203 dpi standard, 300 dpi optional
  • New 5-button user interface with intuitive status icons
  • Field-upgradable media handling (peeler, cutter) and communications options
  • Connectivity: USB, USB Host, Ethernet, Serial, Bluetooth, Wi-Fi (optional)
  • Compatible with Zebra’s Print DNA software suite for setup, security, and management

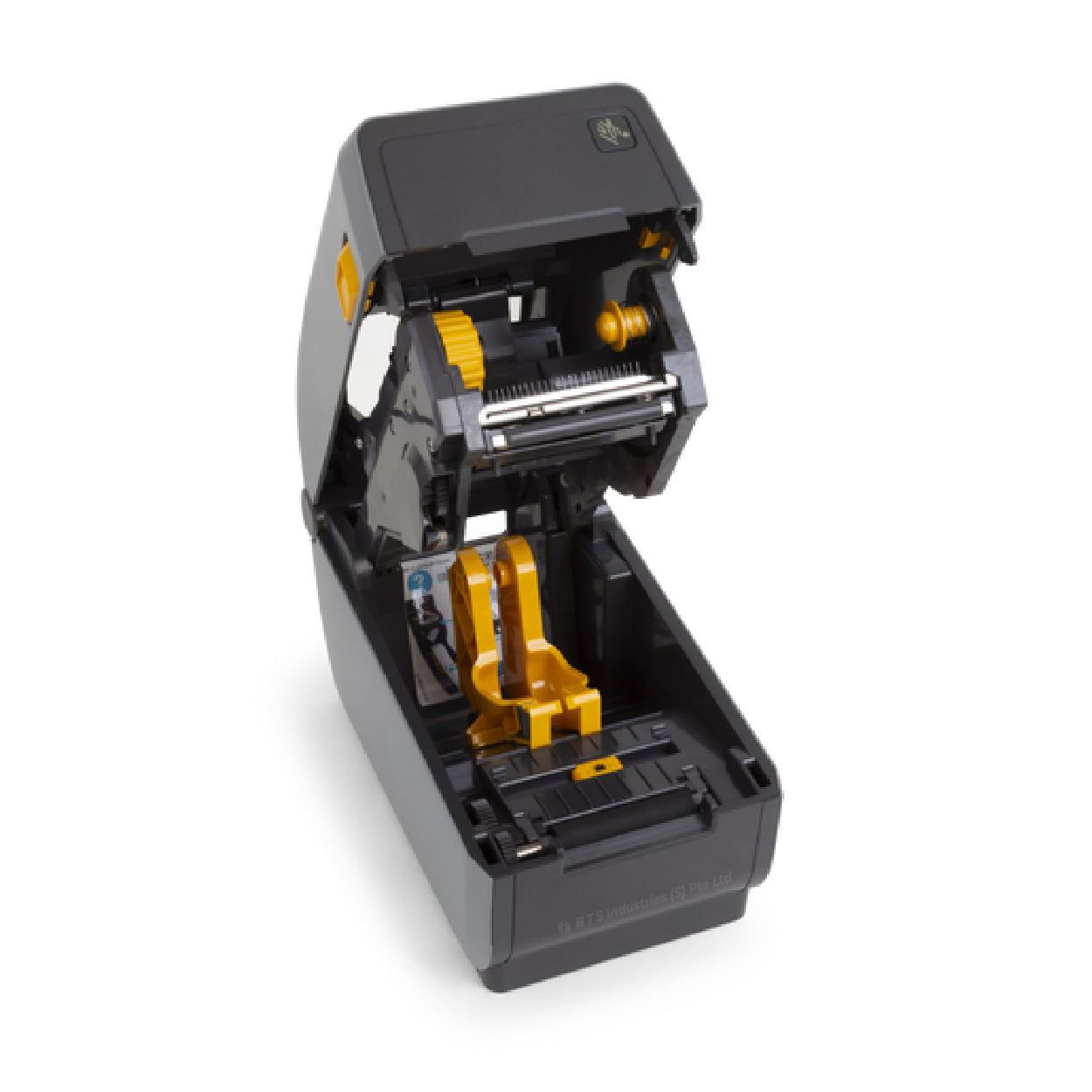

  • Easy-to-use clamshell design for quick media and ribbon changes
  • Compact footprint, ideal for healthcare, retail, logistics, and light manufacturing



Applications:

  •  🏥 Healthcare
  •  🚚 Transportation
  •  ⚙️ Manufacturing
  •  📦 Warehouse & Logistics
  •  🛒 Retail



Specifications:

Printing Technology Thermal Transfer and Direct Thermal

Resolution
  • 203 dpi / 8 dots per mm
  • 300 dpi /12 dots per mm (optional)
Print Speed (Maximum) 6 in. / 152 mm per second ( 203 dpi )
4 in. / 102 mm per second ( 300 dpi )
Print Width (Maximum) 2.2 in. / 56 mm for 203 dpi
2.13 in. / 54 mm for 300 dpi
Print Length



6 in. / 152 mm per second ( 203 dpi )
4 in. / 102 mm per second ( 300 dpi )


Media type

Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Media Width (min to max)

0.585 in. / 15 mm to 2.36 in. / 60 mm
Media Thickness (min to max) 0.0024 in. / 0.06 mm min;
0.0075 in. / 0.1905 mm max. (tear-off mode only)
Media Roll Size (max), Core Size Maximum outer diameter: 5.00 in. / 127 mm
Core inner diameter: 0.5 in. / 12.7 mm and
1.0 in. / 25.4 mm standard, 1.5 in. / 38.1, 2.0 in. / 50.8 mm and 3.0 in. /  76.2 mm using optional adapters
Maximum Ribbon Length  243 ft. / 74 m
Ribbon Width  1.3 in. / 33 mm – 2.24 in. / 58 mm
Ribbon Core I.D. 300 m ribbon 1 in. / 25.4 mm
74 m ribbon 0.5 in. / 12.7 mm
Media Sensor Full width, moveable reflective / black mark sensor; multi-position transmissive / gap sensor
Main Interface
  • USB 2.0, USB Host
  • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection*
    * BLE is provided for use with Zebra printer setup mobile app only
Options & Accessories

  • Healthcare Model – White color scheme, disinfectant-ready plastics, UV-resistant housing, sealed button interface, and healthcare-compliant power supply.

  • Media Handling – Optional field-installable dispenser/peeler with sensor, or cutter for easy media management.

  • Communications – Multiple connectivity choices: Ethernet, Serial, Wi-Fi (5/6), and Bluetooth (4.1/5.3), available as factory or field installable.

  • Battery – Optional battery powers the printer for a full shift at maximum speed, compatible with all media handling options.

  • Carrying Case – Portable case with handles and strap to transport the printer and battery easily to point of use.

  • Enclosed Power Supply – Attached power supply accessory for a cleaner, cord-free installation.

  • Keyboard Display Unit – ZKDU unit for stand-alone, PC-free printing applications.

  • Mounting Adapter Bracket – Allows installation in the same footprint as legacy Zebra models ( GK420, LP/TLP2824 ).
Case

Dual-wall frame construction
Control panel

5 status icon, 3 button user interface
RAM (standard Memory) 512 MB Flash; 256 MB SDRAM
Drivers and software Free-of-charge ZebraDesigner software, including set-up using Zebra Setup Utilities
Barcode Symbologies

Code 11
• Code 39
• Code 93
• Code 128
• ISBT-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• UPC and EAN 2-or 5-digit extensions • Plessey
• Postnet
• Standard 2-of-5
• Industrial 2-of-5
• Interleaved 2-of-5
• Logmars
• MSI
• Codabar and Planet Code
• Codablock
• PDF417
• Code 49
• DataMatrix
• MaxiCode
• QR Code
• MicroPDF
• Aztec
Fonts and Graphics

• 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, • Unicode compliant. China units include SimSun simplified Chinese font
64 MB user available non-volatile memory,
• 8 MB user available SD RAM
Size (W x D x H)

ZD411 Direct Thermal:
8.6 in. L x 4.5 in. W x 6.0 in. H
220 mm L x 115 mm W x 151 mm H
ZD411 Thermal Transfer:
9.56 in. L x 5.46 in. W x 6.66 in. H
242.9 mm L x 138.7 mm W x 169.2 mm H
Weight

ZD411 Direct Thermal:
2.2 lb./1.0 kg
ZD411 Thermal Transfer:
3.59 lb./1.629 kg
