Powerful Label Printing, Simplified
Combines speed, reliability, and innovation — keeping your operations running seamlessly every day.

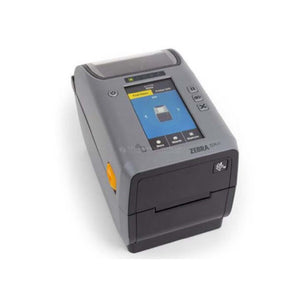

The Zebra ZD611T is a premium 2-inch thermal transfer label printer designed for high-precision printing in industries like healthcare, retail, and manufacturing. It features a high-resolution 300 dpi print quality, ensuring crisp, detailed labels, barcodes, and small text. With fast print speeds up to 8 inches per second, it enhances productivity for demanding applications. The 4.3-inch color touchscreen, USB, Ethernet, Bluetooth, and optional Wi-Fi connectivity provide easy operation and integration. Built for durability and efficiency, the ZD611T is ideal for businesses needing compact, high-quality label printing with advanced features.
Features:
- ZPL and EPL programming languages
- Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection*
*BLE is intended for use with Zebra printer setup mobile app only - Real Time Clock (RTC)
- Media dancer for excellent print quality ( excludes ZD611 direct thermal model )

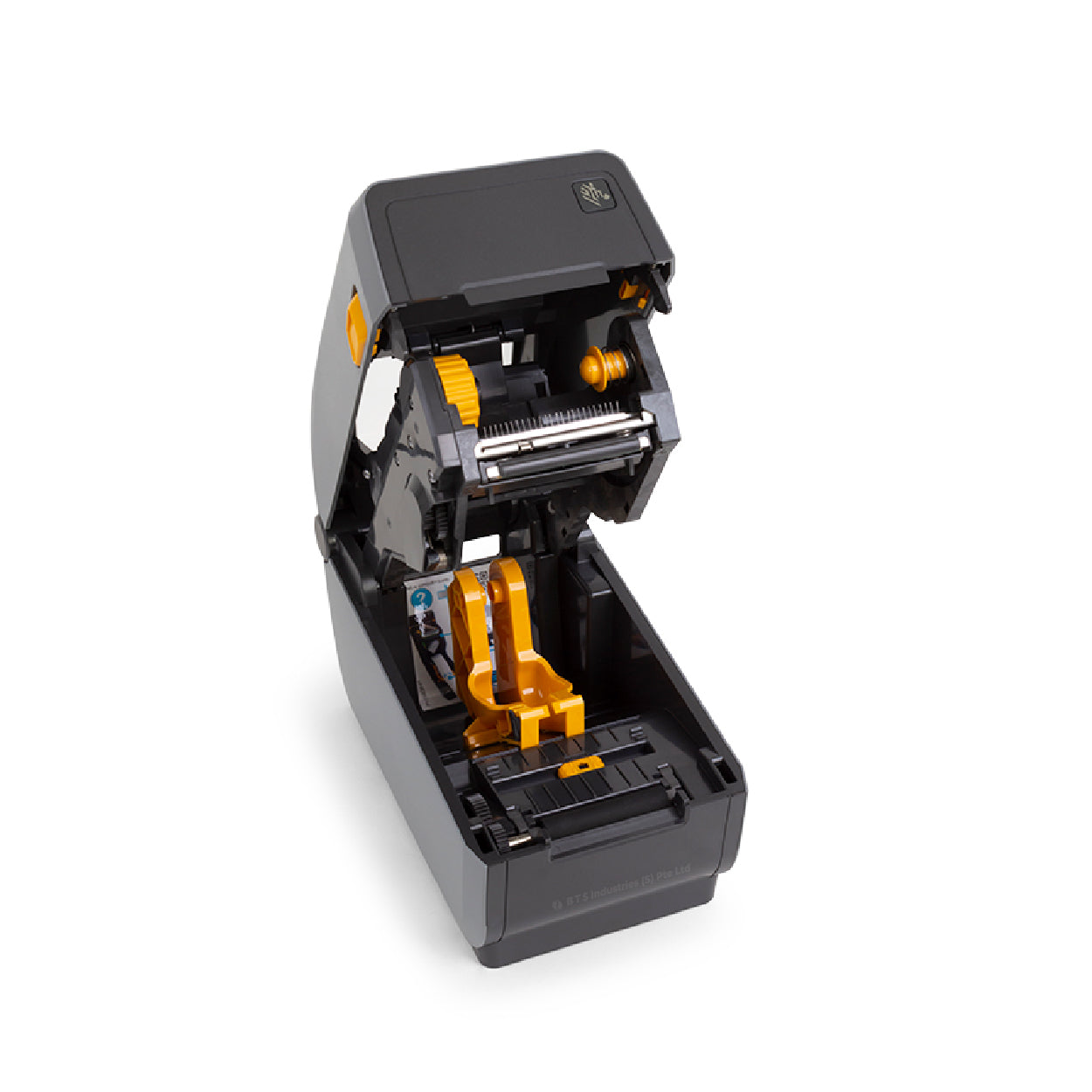

- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR qualified
- ZebraDesigner Essentials – easy label design tool free at www.zebra.com /
zebradesigner
Applications:
- 🧪 Healthcare
- 🏭 Manufacturing / Production
- 🚚 Logistics / Warehousing / Shipping
- 🏷️ Retail / Trade
- 🥫 Food / Beverages / Perishables
Specifications:
| Printing Technology | Thermal Transfer or Direct Thermal |
| Resolution | 203 dpi / 8 dots per mm 300 dpi / 12 dots per mm ( optional ) |
| Print Speed (Maximum) |
8 in. / 203 mm per second ( 203 dpi ) 6 in. / 152 mm per second ( 300 dpi ) |
| Print Width (Maximum) |
2.2 in. / 56 mm for 203 dpi 2.13 in. / 54 mm for 300 dpi |
| Maximum Label Length |
Minimum: 0.25 in. / 6.35 mm Maximum: 39.0 in. / 991 mm |
| Media type |
Roll-fed or fanfold, die-cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands, and linerless * *for use only with linerless printer model |
| Media Width (min to max) |
0.585 in. / 15 mm to 2.36 in. / 60 mm |
| Media Thickness (min to max) | 0.024 in. / 0.06 mm min. 0.0075 in. / 0.1905 mm max. (tear-off mode only) |
| Media Roll Size (max), Core Size |
Maximum outer diameter: 5.00 in. / 127 mm Core inner diameter: 0.5 in. / 12.7 mm and 1.0 in. / 25.4 mm standard, 1.5 in. / 38.1 mm, 2.0 in. / 50.8 mm and 3.0 in. / 76.2 mm using optional adapters |
| Ribbon Outside Diameter |
1.34 in. / 34 mm ( 74 m ) |
| Maximum Ribbon Length | 243 ft. ( 74m ) |
| Ribbon Ratio |
1:4 ribbon to media ( 300 m ) 1:1 ribbon to media ( 74 m ) |
| Ribbon Width | 1.3 in. / 33 mm to 2.24 in. / 58 mm |
| Ribbon Core I.D. | 1 in. / 25.4 mm ( 300 m ) 0.5 in. / 12.7 mm ( 74 m ) |
| Media Sensor |
Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Main Interface |

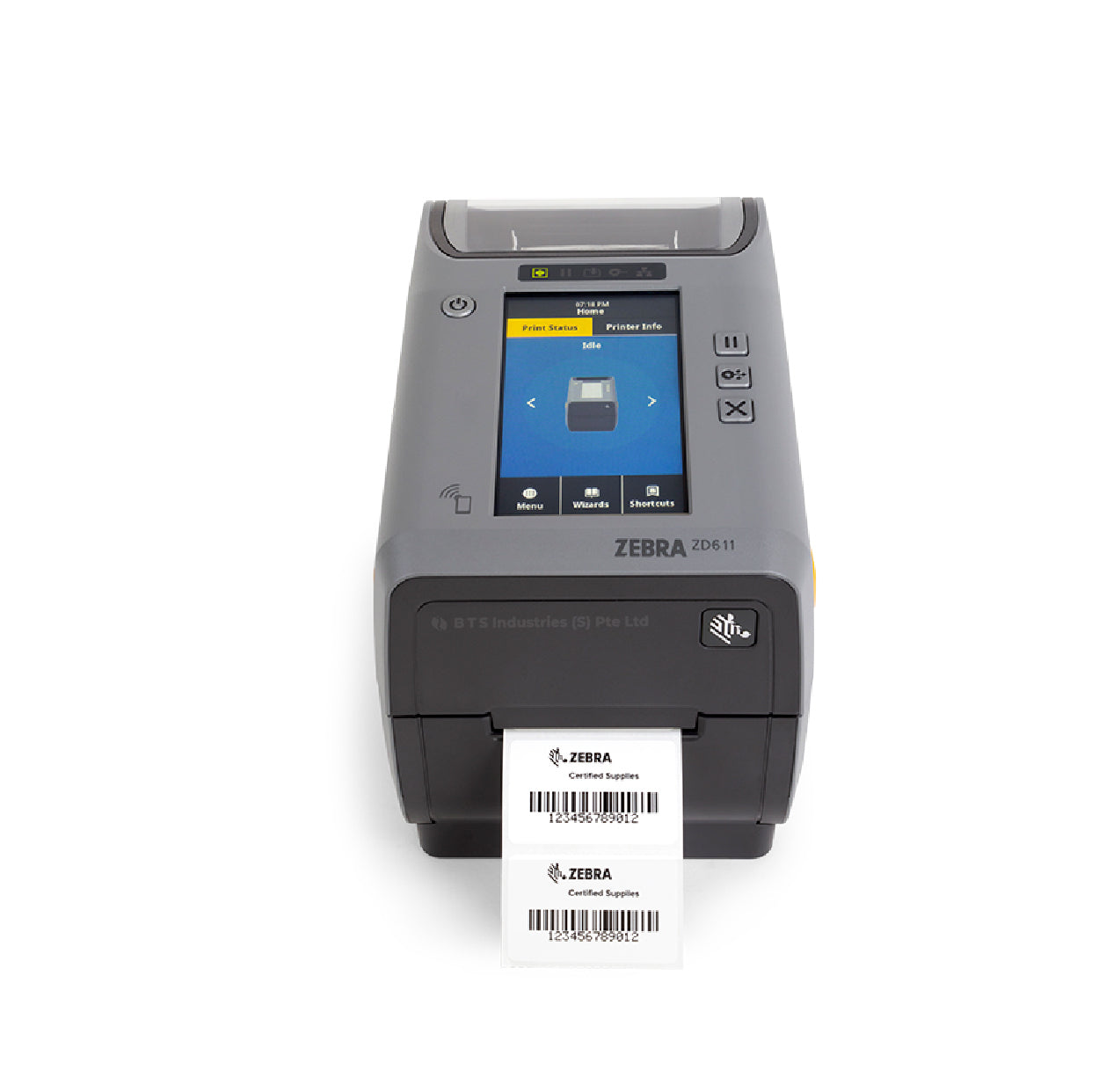

4.3 in. full color touch LCD ( standard on healthcare models and ZD611 RFID and thermal transfer models ) |
| Optional Interface |
|
| Case | Zebra's OpenACCESS Clamshell Design |
| Control panel | 5 status icon, 3 button user interface |
| RAM (standard Memory) |
512 MB Flash; 256 MB SDRAM |
| Drivers and software |
ZebraDesigner Essentials–easy label design tool free at |
| Emulations (Languages) |
ZPL II; EPL 2; XML; ZBI; PDF Direct |
| Size (W x D x H) and Weight |
Thermal Transfer: |
