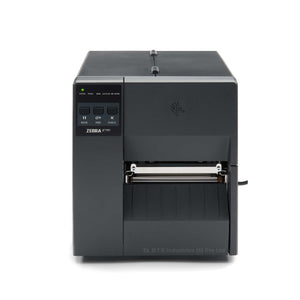

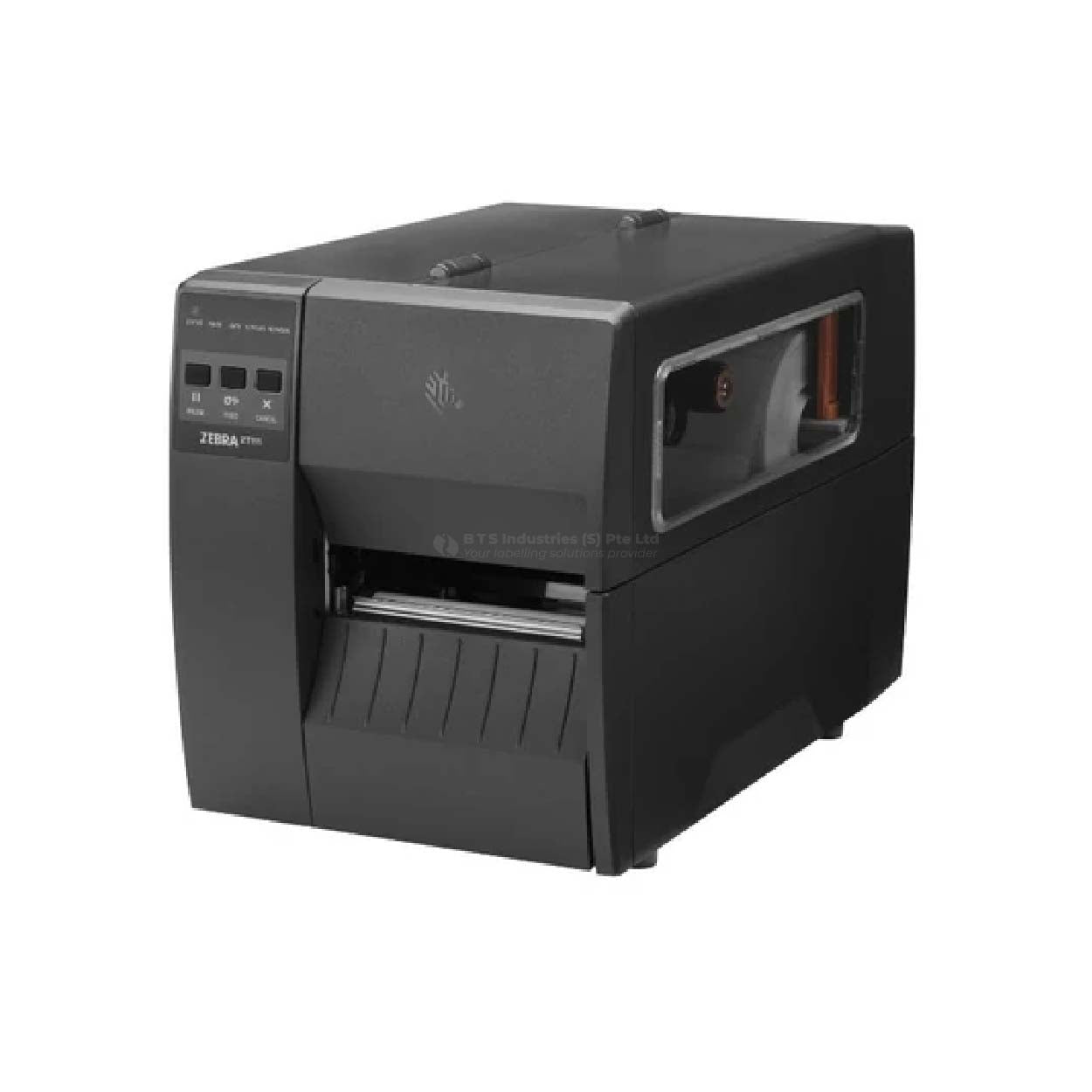

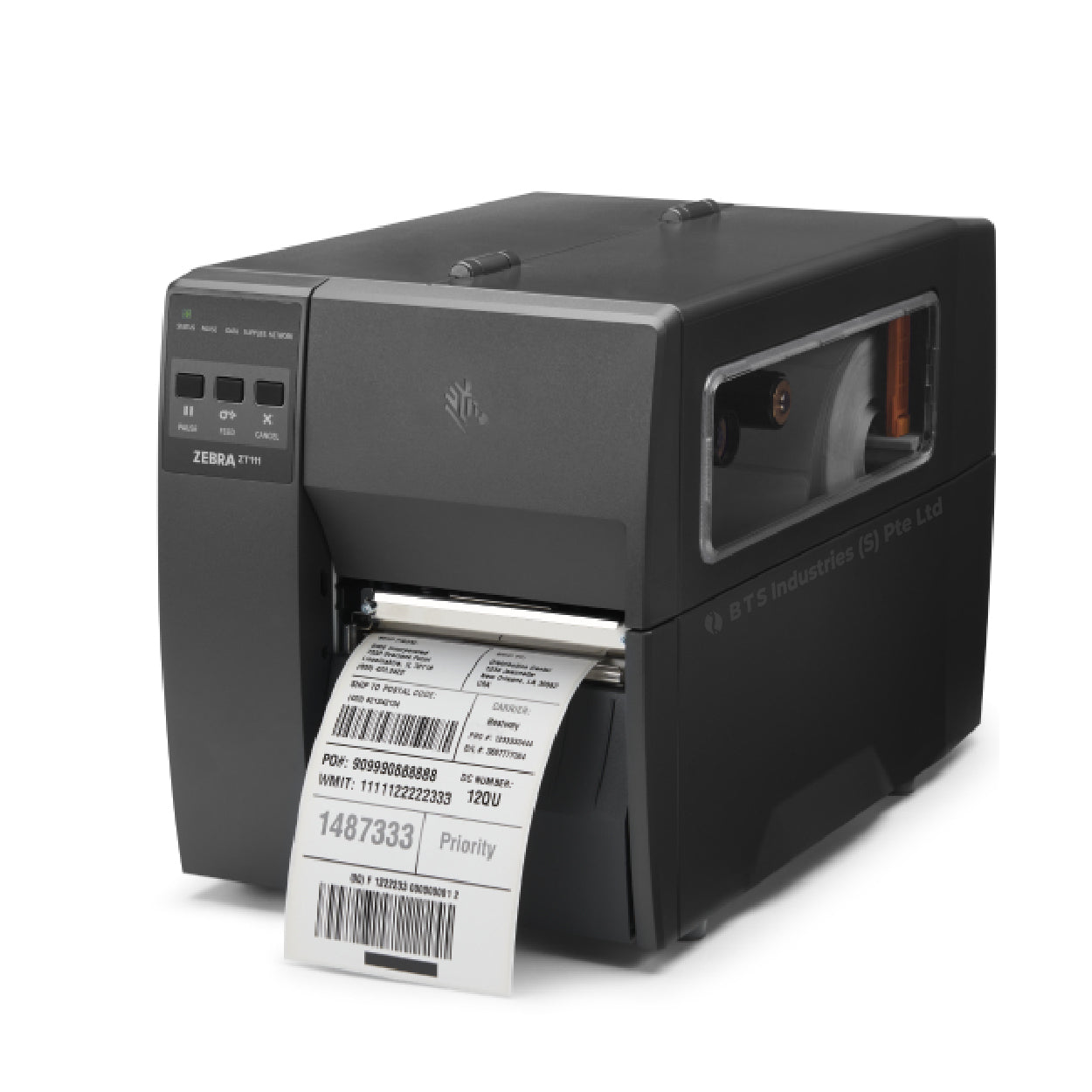

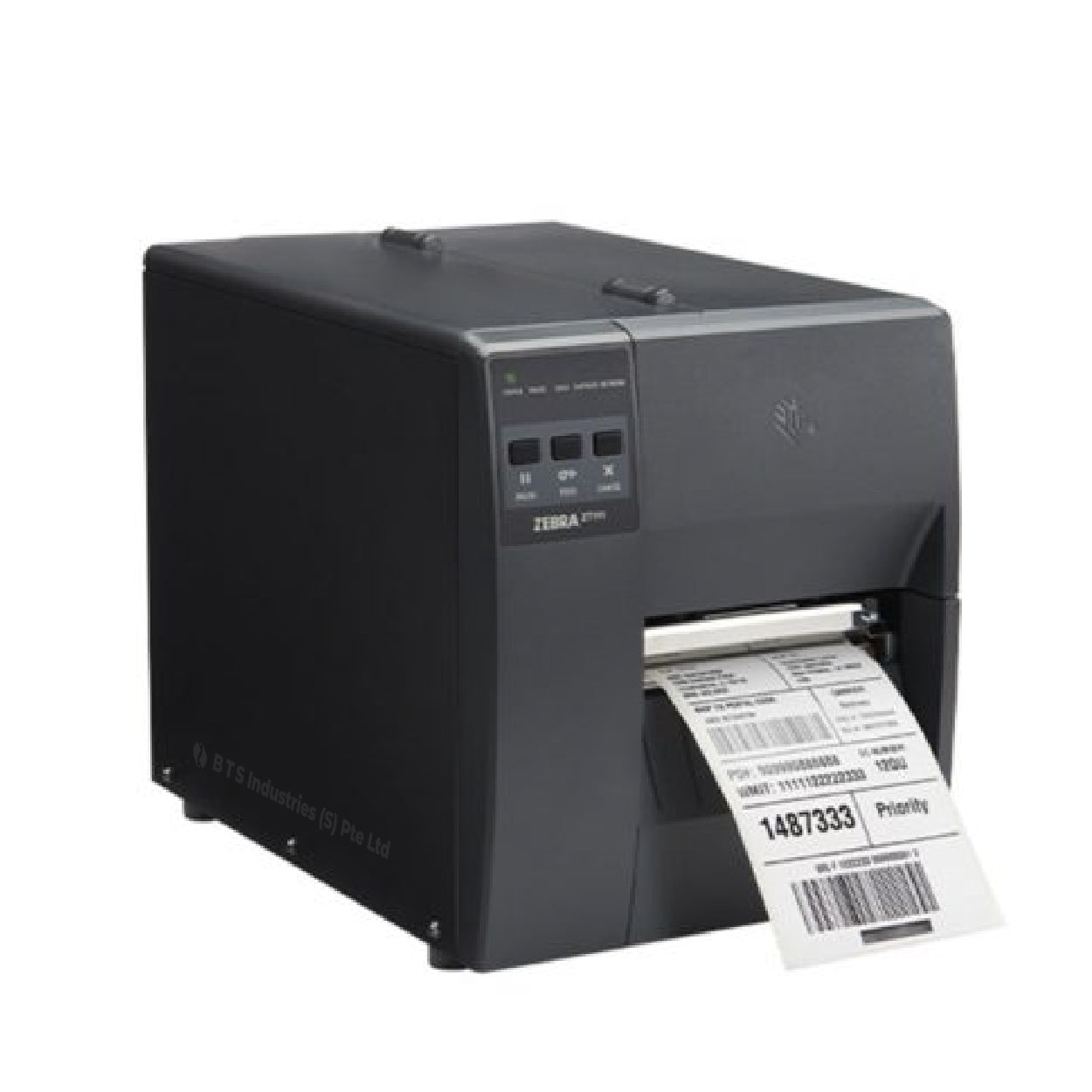

Zebra ZT111

view

43 People are viewing this right now

Click To Enquire Add to Wishlist Add to Compare
Share
Description

BUDGET CAN BE BRILLIANT, TOO

The Budget Printer that Delivers More

When your labeling needs demand more than a desktop printer can deliver and you’re looking to add an industrial printer, you shouldn’t have to compromise between budget and quality. With Zebra’s ZT111, you don’t have to. Get just the right features you need at the right price to match your needs – today and tomorrow. Stay productive with fast print speeds, built-in intelligence and time-saving tools to make work easier. And, futureproof your investment with upgradeability.

Make the smart choice with the ZT111, the entry-level printer that’s easy on your budget and gives you more. More uptime, more processing power, more tools and more years of use.



Features:

  • Durable metal frame designed for light-industrial use
  • Basic monochrome display with simple menu navigation
  • USB, Serial, and Ethernet connectivity (Wi-Fi optional)
  • Side-loading design for easy media and ribbon changes
  • Large media capacity to reduce downtime
  • Compatible with Zebra’s Print DNA Basic software tools for setup and security
  • Cost-effective industrial printer ideal for essential labeling needs



Applications:

  •  🏥 Healthcare
  •  🚚 Transportation
  •  ⚙️ Manufacturing
  • 📦  Warehouse & Logistics
  • 🛒  Retail



Specifications:

Printing Technology Thermal Transfer and Direct Thermal

Resolution
  • 203 dpi / 8 dots per mm
  • 300 dpi / 12 dots per mm (optional)
Print Speed (Maximum) 10 ips ( 200 dpi )
6 ips ( 300 dpi )
Print Width (Maximum) 4.09 in. / 104 mm
Print Length



203 dpi: 157in. / 3988 mm
300 dpi: 73in. / 1854 mm


Media type

Continuous, die-cut, notch, black mark
Media Width (min to max)

0.75 in. / 19.4 mm to 4.50 in. / 114 mm
Media Thickness (min to max) 0.003 in. / 0.076 mm to 0.010 in. / 0.25 mm
Media Roll Size (max), Core Size  • 8.0 in. / 203 mm O.D. on a 3.0 in. / 76 mm I.D. core
• 6.0 in. / 152 mm O.D. on a 1.0 in. / 25 mm I.D. core
Maximum Ribbon Length 1,476 ft. / 450 m
Ribbon Width 2 in. / 51 mm to 4.33 in. / 110 mm
Ribbon Core I.D. 1.0 in. / 25.4 mm
Media Sensor Transmissive and reflective sensors
Main Interface

Communications:
USB 2.0 and RS-232 Serial port, 10/100 Ethernet, and USB Host
Options & Accessories

Communication
• 802.11 ac Wi-Fi option card
• 10 / 100 Ethernet option card
Media Handling
• Peel — a front-mount, passive-peel with no take-up spindle
• Cutter — a front-mount guillotine cutter
Keyboard Display Unit
• ZKDU™ keyboard display units for stand-alone printing applications
Case Metal frame and plastic enclosures
, Bi-fold media door with large clear window
Control panel
  • Five color LEDs for quick printer status
  • Three button keypad
RAM (standard Memory) • 256 MB SDRAM memory
• 256 MB on-board linear Flash memory
Drivers and software Free-of-charge ZebraDesigner software, including set-up using Zebra Setup Utilities
Barcode Symbologies

Linear Barcodes:
• Code 11
• Code 39
• Code 93
• Code 128 with subsets A/B/C and UCC Case Codes
• ISBT-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• UPC and EAN with 2 or 5 digit extensions
• Plessey
• Postnet
• Standard 2-of-5
• Industrial 2-of-5
• Interleaved 2-of-5
• Logmars
• MSI
• Codabar
• Planet Code

2D Barcodes:
• Aztec
• Codablock
• PDF417
• Code 49
• Data Matrix
• MaxiCode
• QR Code
• MicroPDF417
• TLC 39
• RSS-14 (and composite)
Fonts and Graphics

• 7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed*) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets

• International character sets supporting the following code page: IBM® Code Page 850

• Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM
Size (W x D x H)

9.5 in. ( W ) x 17 in. ( D )  x 11 in. ( H )

241 mm ( W ) x 432 mm ( D )  x 279 mm ( H )
Weight

17 lbs. / 7.7 kg
