Zebra ZT231

Sale price SGD 2,088.00
view

4 People are viewing this right now

dpi: 203
Add to Wishlist Add to Compare

Ask a question
Share
Discover our machines

Smart features. Small investment. Big payoff.

Get More Value with Zebra

Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up – without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more – all in one space-saving footprint. Plus, add optional capabilities like RFID, wireless connectivity and media handling features when you need them. But that’s not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That’s how Zebra defines value.



Features:

  • 4.09" (104 mm) print width for a wide range of labels
  • Print resolution options: 203 dpi (standard) or 300 dpi (optional)
  • Print speed up to 12 ips (203 dpi) / 6 ips (300 dpi)
  • Durable yet compact metal frame for light-industrial environments
  • 4.3" full-color touchscreen for easy operation and settings management
  • Multiple connectivity options: USB, Serial, Ethernet, Bluetooth (optional Wi-Fi)
  • RFID option available for advanced tracking applications

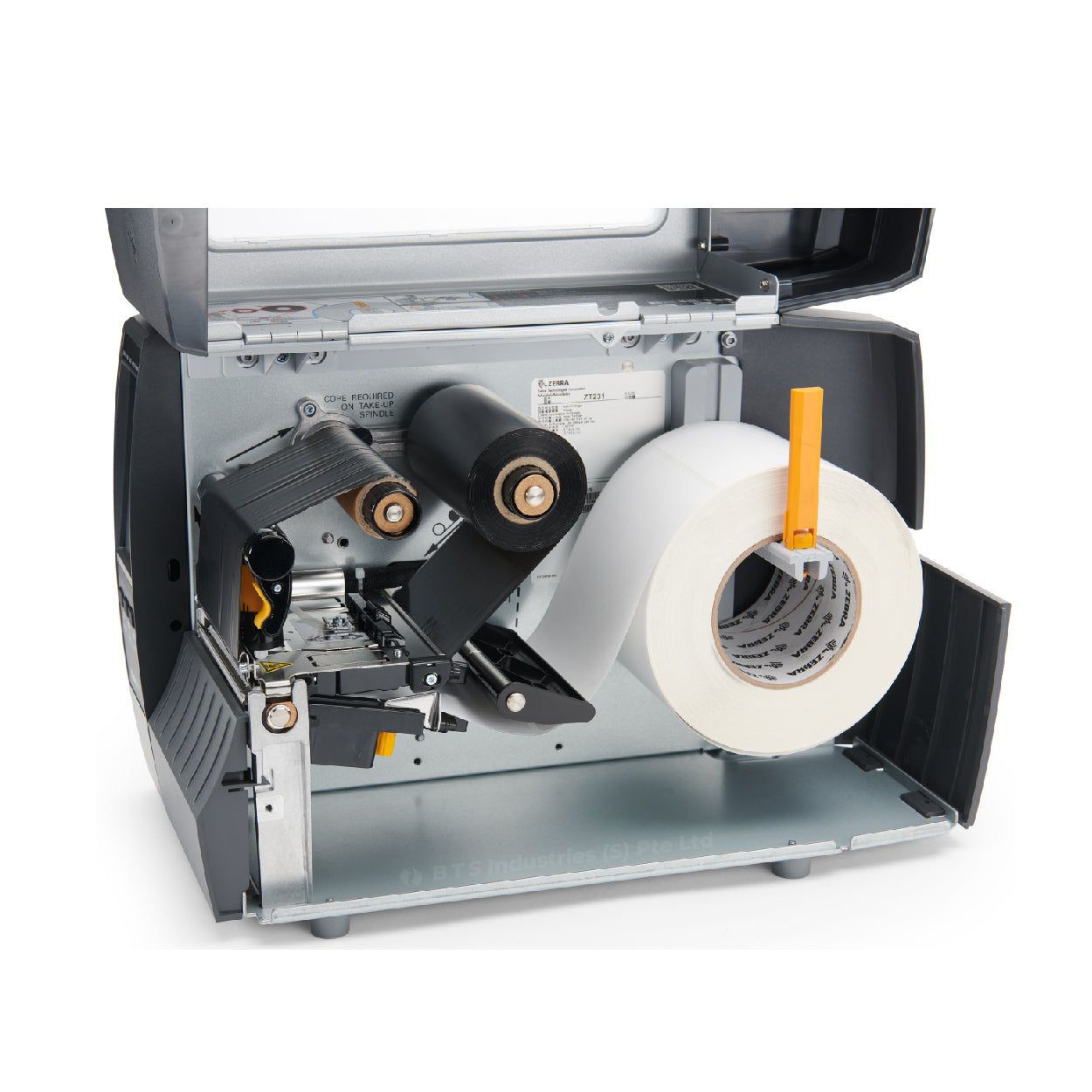

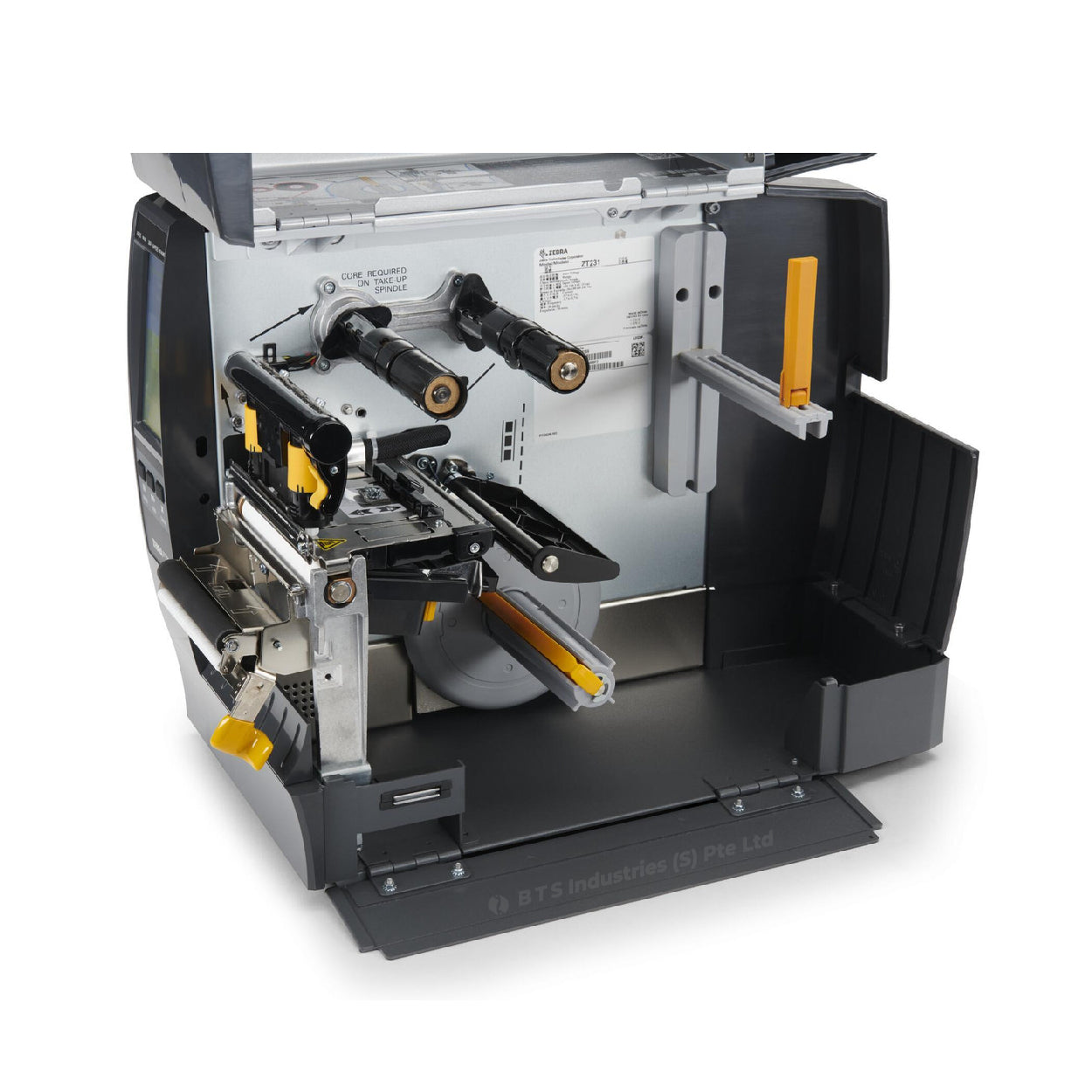

  • Side-loading media and ribbon system for quick changes
  • Compatible with Zebra’s Print DNA software suite for simple setup, management, and security
  • Ideal for manufacturing, warehousing, transportation, retail, and healthcare labeling



Applications:

  •  🏥 Healthcare
  •  🚚Transportation
  •  ⚙️Manufacturing
  • 📦🏬Warehouse & Logistics
  • 🛒Retail



Specifications:

Printing Technology Thermal Transfer and Direct Thermal

Resolution
  • 203 dpi/8 dots per mm
  • 300 dpi/12 dots per mm (optional)
Print Speed (Maximum) 12 ips (203 dpi)
8 ips (300 dpi)
Print Width (Maximum) 4.09 in./104 mm
Print Length



203 dpi: 157 in/3988 mm
300 dpi: 73in/1854 mm


Media type:

Continuous, die-cut, notch, black mark
Media Width (min to max):

0.75 in./19.4 mm to 4.50 in./114 mm
Media Thickness (min to max): 0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Roll Size (max), Core Size: 8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core
6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Maximum Ribbon Length 1,476 ft./450 m
Ribbon Width 2 in./51 mm to 4.33 in./110 mm
Ribbon Core I.D. 1.0 in./25.4 mm
Media Sensor: Moveable transmissive and reflective sensors
Main Interface:

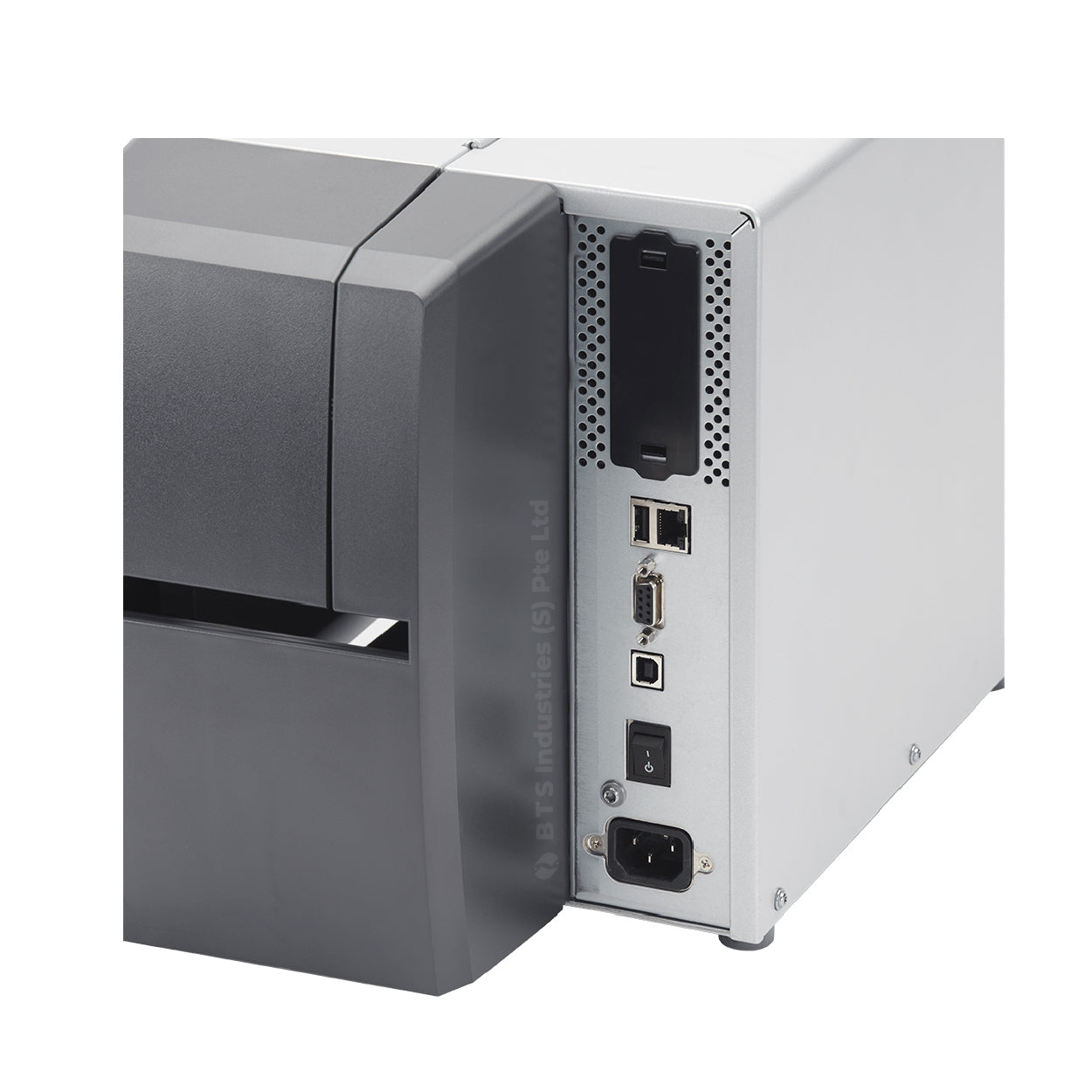

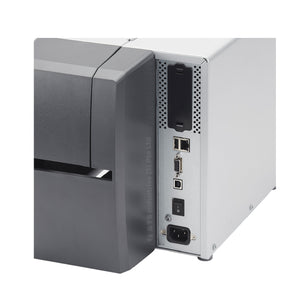

Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
Options & Accessories

1. Communication
• 802.11ac Wi-Fi option card
• 10/100 Ethernet option card
• Applicator Interface
2. Media Handling
• Peel — a front-mount, passive-peel with no take-up spindle
• Peel — a front-mount, passive-peel with liner take-up spindle (factory-fit only)
• Cutter — a front-mount guillotine cutter
3. RFID
• UHF field-installable RFID kit
4. Keyboard Display Unit
• ZKDU™ keyboard display units for stand-alone printing applicationsl
Case: metal frame and metal enclosures
, Bi-fold media door with large clear window
Control panel:
  • • Three-color LEDs for quick printer status
  •  4.3” color resistive touch screen with intuitive menu for quick operation and settings
RAM (standard Memory): 256 MB SDRAM memory
256 MB on-board linear Flash memory
Drivers and software: Free-of-charge ZebraDesigner software, including set-up using Zebra Setup Utilities
Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with
2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)
Fonts and Graphics

Z7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850
Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM
Size (W x D x H):

ZT231 Closed: 17 in. L x 9.5 in. W x 11 in. H
432 mm L x 241 mm W x 279 mm H
ZT231 with Liner Takeup Unit:
17 in. L x 9.5 in. W x 12.75 in. H
432 mm L x 241 mm W x 324 mm H
Weight:

ZT231: 20 lbs./9.1 kg
ZT231 with Liner Takeup Unit: 24 lbs./10.9 kg



Additional Information
dpi

203, 300
