A new level of performance, versatility and ease of use

Versatile to Meet Your Evolving Needs

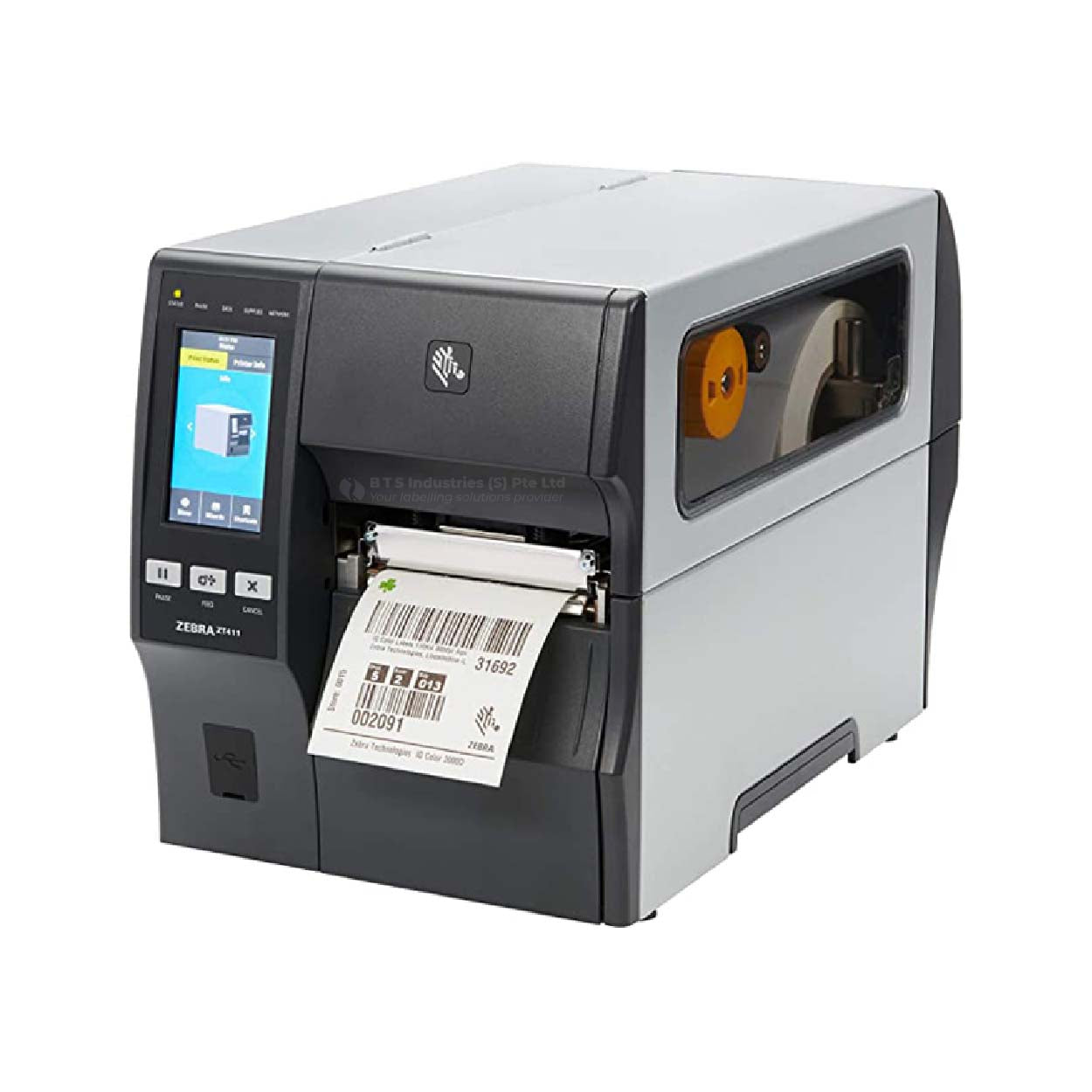

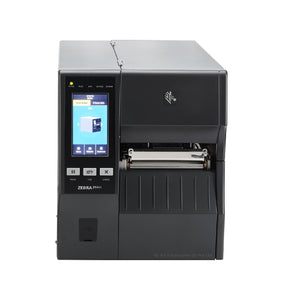

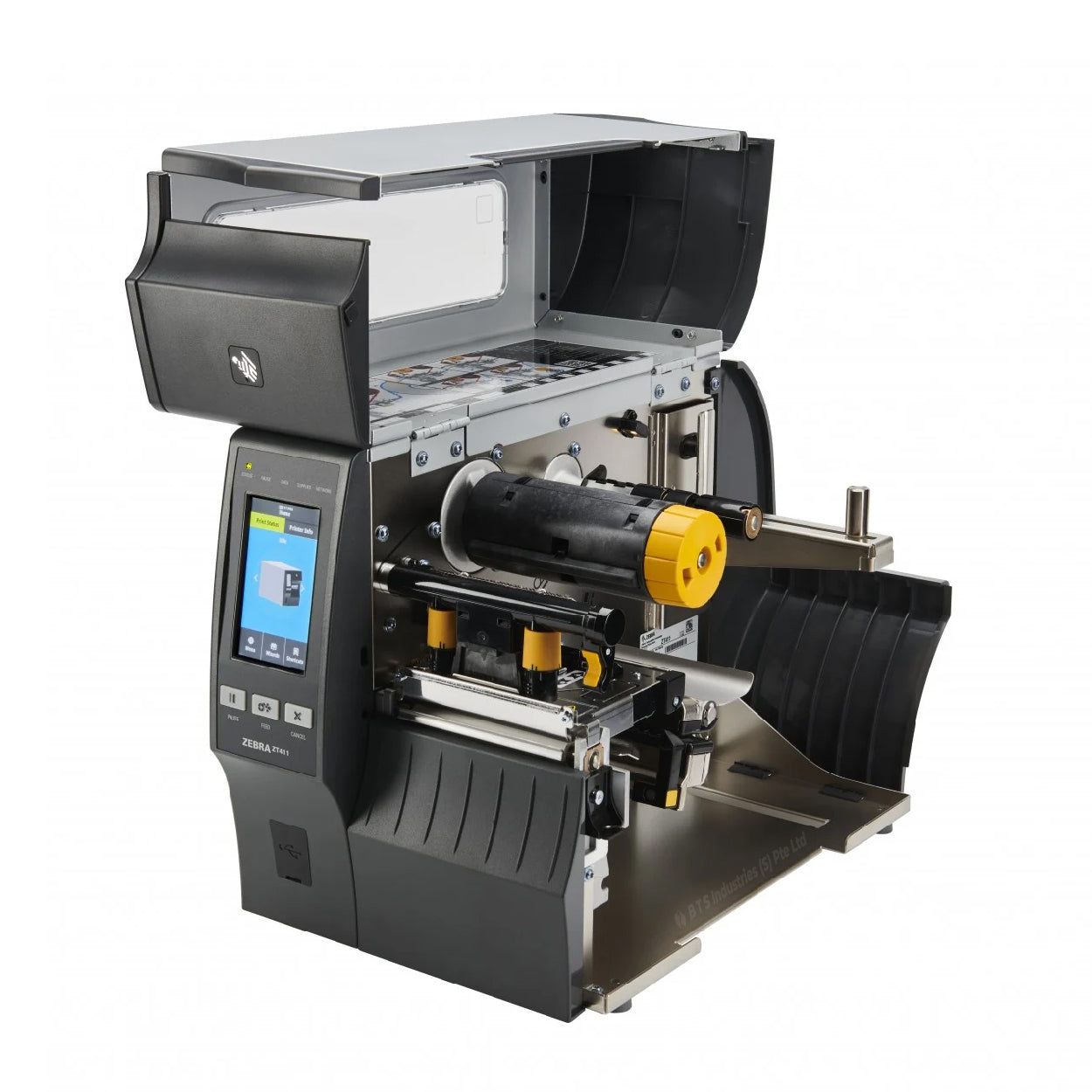

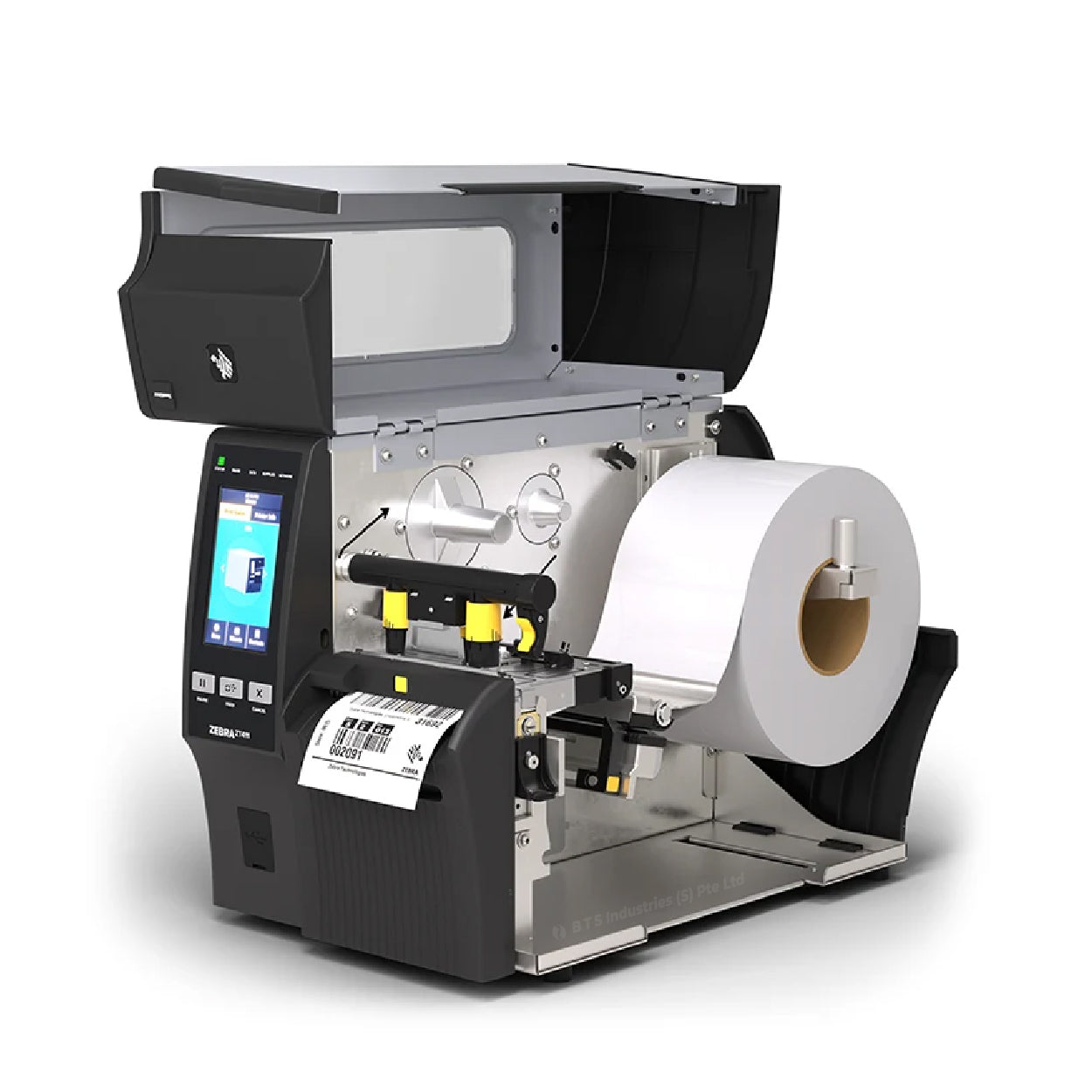

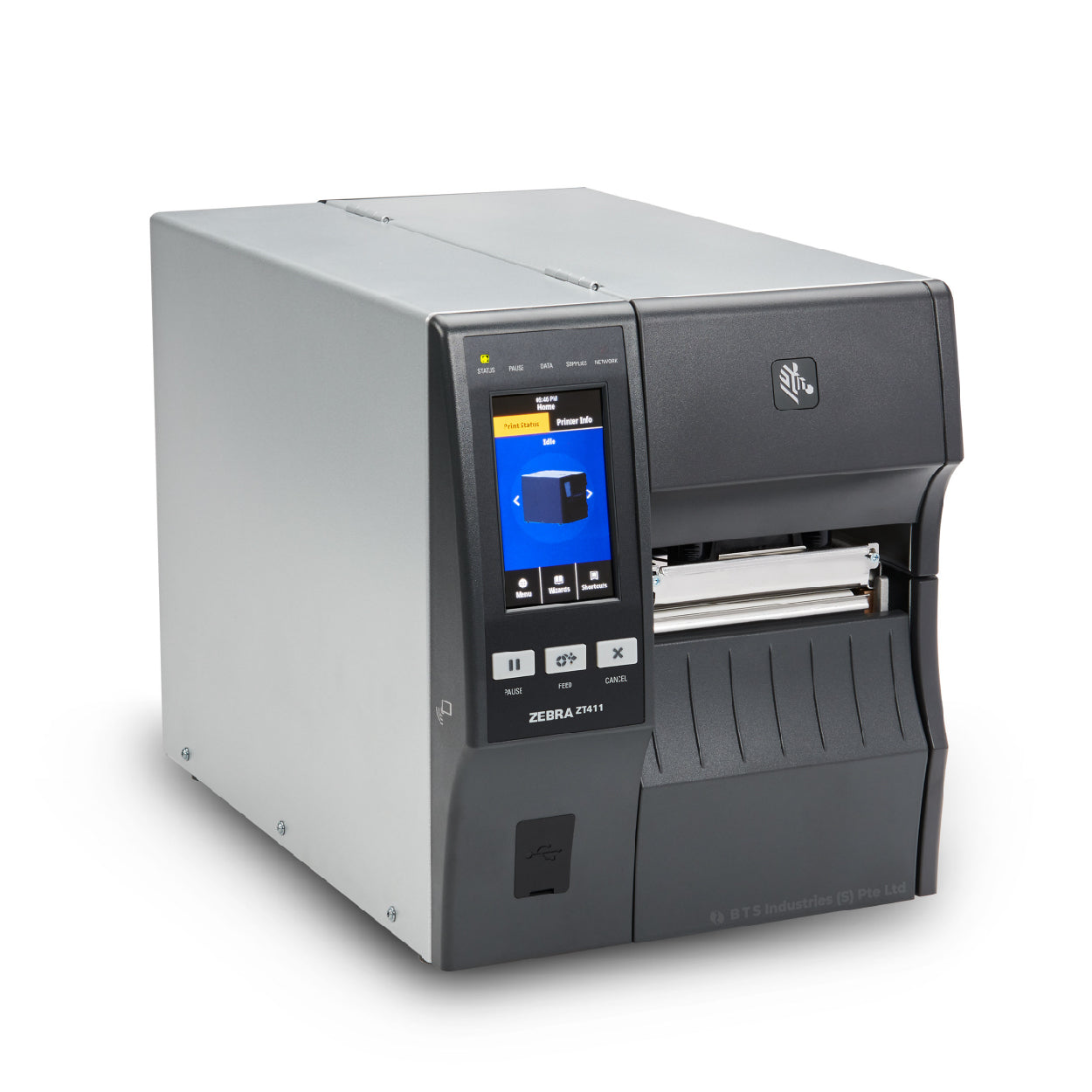

Boost your productivity with the Zebra ZT411, the industrial label printer engineered for speed, precision, and nonstop performance. Built with a tough metal frame and equipped with a vibrant 4.3-inch color touchscreen, the ZT411 delivers effortless control and reliable operation in even the most demanding environments. Choose from 203, 300, or 600 dpi to print anything from high-volume shipping labels to ultra-sharp compliance and product labels. With powerful connectivity options — USB, Serial, Ethernet, Bluetooth and optional Wi-Fi — plus upgradeable features like cutters, peelers, and RFID, the ZT411 grows with your business. Fast, flexible, and future-ready, it’s the ideal labeling solution for warehouses, factories, logistics hubs, and beyond.



Features:

  • Rugged all-metal frame built for industrial environments.
  • 4.3-inch color touchscreen for easy setup and operation.
  • Supports 450m ribbon capacity with quick side-loading design.
  • Optional UHF RFID printing and encoding capabilities.
  • Powered by Zebra Print DNA for management, security, and integration.
  • Backwards compatible with Z Series and ZT400 series printers.



Applications:

  •  🏥 Healthcare
  •  🚚 Transportation
  •  ⚙️ Manufacturing
  • 📦  Warehouse & Logistics
  • 🛒  Retail



Specifications:

Printing Technology Thermal Transfer and Direct Thermal

Resolution
  • 203 dpi / 8 dots per mm
  • 300 dpi / 12 dots per mm (optional)
  • 600 dpi / 24 dots per mm
    ( optional for ZT411 only )
Print Speed (Maximum) 14 ips / 356 mm per second
Print Width (Maximum) 4.09 in. / 104 mm
Print Length



  • 203 dpi: 157 in. / 3988 mm
  • 300 dpi: 73 in. / 1854 mm
  • 600 dpi: 39 in. / 991 mm


Media type

Continuous, die-cut, notch, black-mark, linerless media*

*For use only with linerless printer model
Media Width (min to max)
  • 1.00 in. / 25.4 mm to 4.5 in. / 114 mm tear / cutter
  • 1.00 in. / 25.4 mm to 4.25 in. / 108 mm peel / rewind
Media Thickness (min to max) 0.0023 in. / 0.058 mm to 0.010 in. / 0.25 mm
Media Roll Size (max), Core Size 8.0 in. / 203 mm O.D. on a 3 in. / 76 mm I.D. core
Maximum Ribbon Length 1476 ft. / 450 m
Ribbon Width 2.00 in. / 51 mm to 4.33 in. / 110 mm
Ribbon Core I.D. 1.0 in. / 25 mm I.D.
Media Sensor Adjustable dual media sensors: transmissive and reflective
Main Interface

Communications:
• USB 2.0, high-speed
• RS-232 Serial, 10 / 100 Ethernet
• Bluetooth 4.2
• Dual USB Host
Options & Accessories

1. Two open communication slots to add internal cards for:

  • Dual band 802.11ax Wi-Fi and Bluetooth 5.3
  • Dual band 802.11ac Wi-Fi and Bluetooth 4.2
  • Parallel (bi-directional interface)
  • 10/100 Ethernet
  • Applicator interface

2. Rewind: Internally rewinds a full roll of printed labels on 3 in. core, or peels and rewinds liner (factory installed only)

3. Peel: Front-mount, passive peel option

4. Peel: Liner take-up—additional full-roll liner take-up spindle accommodates standard printer base

5. Cutter: Front-mount guillotine cutter and catch tray
1 in. I.D. Core media supply hanger (ZT411 only)
Ink-side in ribbon supply (ZT411 only)

6. Linerless capability:

  • Factory-installed linerless model (available as Direct Thermal only)
  • Field installable linerless upgrade kit

*Available on ZT411 only
Case Metal frame and bi-fold metal media cover with enlarged clear viewing window
Control panel
  • 4.3-in. color touch display with intuitive menu for quick operation and settings management
  • Bi-colored status LEDs for quick printer status
RAM (standard Memory) 256 MB SDRAM memory
512 MB on-board linear Flash memory
Drivers and software Free-of-charge ZebraDesigner software, including set-up using Zebra Setup Utilities
Barcode Symbologies

Code 11
• Code 39
• Code 93
• Code 128 with subsets A/B/C and UCC Case Codes
• ISBT-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• UPC and EAN 2- or 5-digit extensions
• Plessey
• Postnet,
• Standard 2-of-5
• Industrial 2-of-5
• Interleaved 2-of-5
• Logmars
• MSI
• Codabar
• Planet Code
Fonts and Graphics

• 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
Asian and other international scalable and smooth bitmapped fonts
• Unicode™: For multi-language printing
• Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
• Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
• 64 MB user-available non-volatile memory storage for downloadable objects
• 8 MB user-available SDRAM
Size (W x D x H)

ZT411:
10.6 in. ( W ) x 19.5 in. ( D ) x 12.75 in. ( H )
269 mm ( W ) x 495 mm ( D )  x 324 mm ( H )

ZT411 with Full Rewind:
10.8 in. ( W ) x 19.7 in. ( D )  x 16.7 in. ( H )
274 mm ( W ) x 500 mm ( D )  x 425 mm ( H )
Weight

ZT411: 36 lbs. / 16.33 kg
ZT411 with Full Rewind: 48.7 lbs. / 22.09 kg
