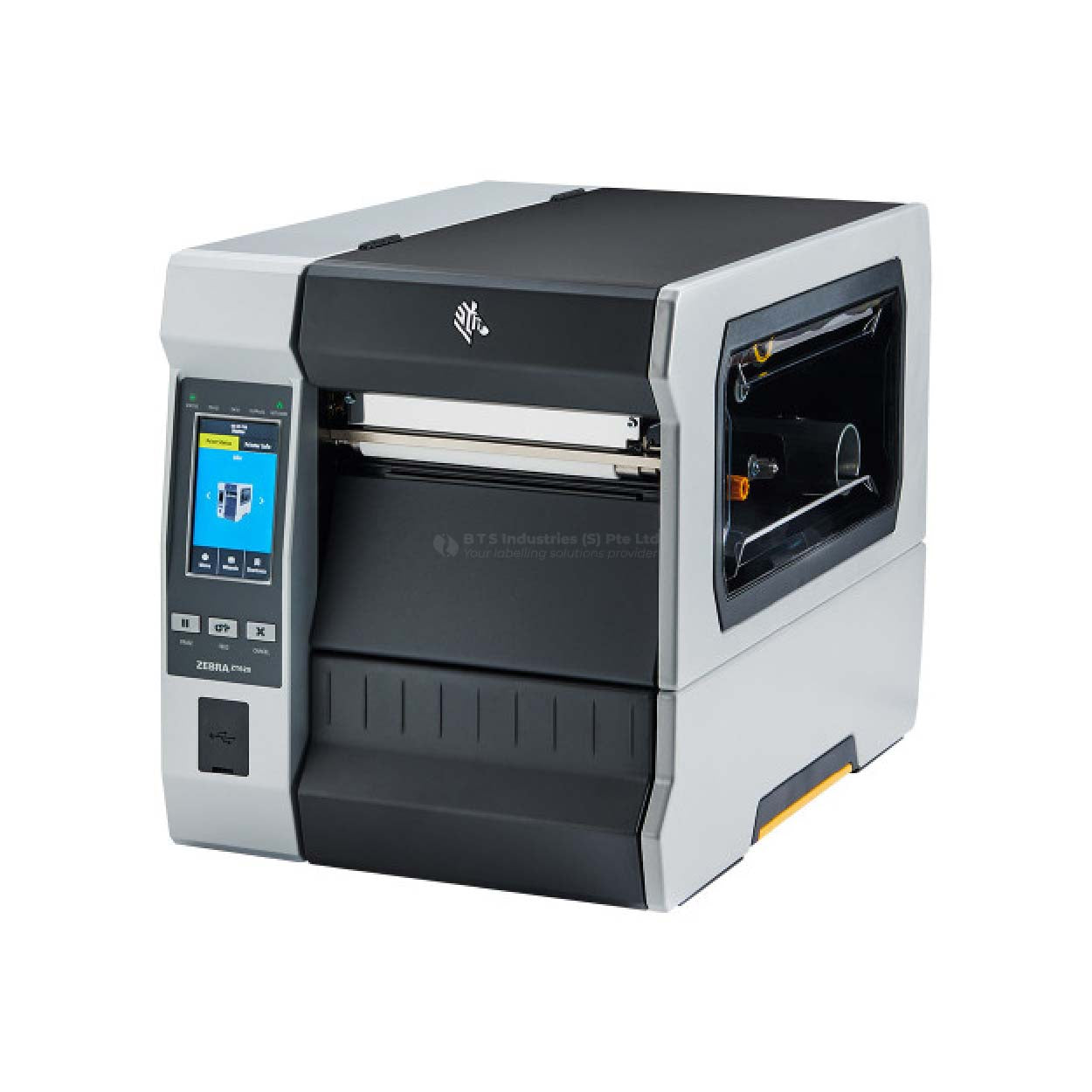

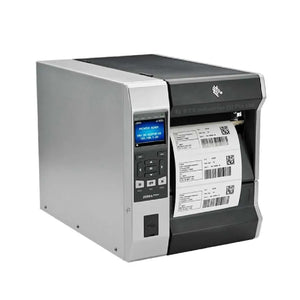

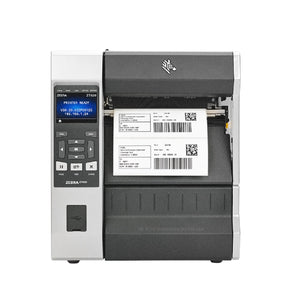

Zebra ZT620
4 People are viewing this right now
The next generation Xi Series, now with more intelligence and industrial brawn
24/7 Reliability in the Harshest Environments
Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you're concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, ZT600 Series Industrial Printers have you covered today—and for years to come.
Features:
- Wide print width up to 6.6" for large labels
- High-resolution printing at 203 or 300 dpi
- Fast print speeds up to 12 inches per second
- Rugged all-metal frame built for 24/7 industrial use
- Large color LCD display with intuitive menu navigation
- Link-OS for easy printer management and integration
- Multiple connectivity options: USB, Serial, Ethernet, Bluetooth
- High media and ribbon capacity to reduce downtime
- Simplified side-loading design for quick media changes
- Optional advanced RFID encoding capabilities
Applications:
- 🏥 Healthcare
- 🚚📦Transportation & Logistics
- ⚙️Manufacturing
- 📦🏬Warehouse & Distribution
- 🛒Retail
Specifications:
Printing Technology | Thermal Transfer and Direct Thermal |
|
|
Print Speed (Maximum) |
ZT610: 14 ips/356 mm per second ZT620: 12 ips/305 mm per second |
Print Width (Maximum) |
ZT610: 4.09 in./104 mm ZT620: 6.6 in./168 mm |
Minimum Non-Continuous Label Length |
ZT610: ZT620: |
Media type: |
Continuous, die-cut, notch, black-mark |
Media Width (min to max): |
ZT610: 0.79 in./20 mm to 4.5 in./114 mm ZT620: 2.0 in./51 mm to 7.1 in./180 mm ) |
Media Thickness (min to max): | 0.0023 in./0.058 mm to 0.010 in./0.25 mm |
Media Roll Size (max), Core Size: |
8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core |
Maximum Ribbon Length |
1476 ft./450 m |
Ribbon Width |
ZT610: 0.79 in./20 mm to 4.33 in./110 mm ZT620: 2.0 in./51 mm to 6.7 in./170 mm |
Ribbon Core I.D. | 1.0 in./25.4 mm I.D. |
Media Sensor: | Dual media sensors: transmissive and reflective |
Main Interface: |
Two open communication slots to add internal cards for: • Dual band 802.11ac Wi-Fi™ and Bluetooth 4.2 • Dual band 802.11ax Wi-Fi and Bluetooth 5.3 • Parallel • Ethernet • Applicator interface |
Options & Accessories |
IPv6 option is available as external dongle attached to a parallel port. |
Case: |
Metal frame and bi-fold metal media cover with enlarged clear viewing window |
Control panel: |
Brightly lit, 4.3 in. full-color touch display with clear navigation and immediate status visibility and support |
RAM (standard Memory): |
1 GB RAM memory 2 GB on-board linear Flash memory |
Drivers and software: | Free-of-charge ZebraDesigner software, including set-up using Zebra Setup Utilities |
Barcode Symbologies |
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code |
Fonts and Graphics |
16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts |
Size (W x D x H): |
ZT610: 19.88 in. L x 10.56 in. W x 15.58 in. H |
Weight: |
ZT610: 50 lbs/22.7 kg |
dpi |
203, 300 |
---|
